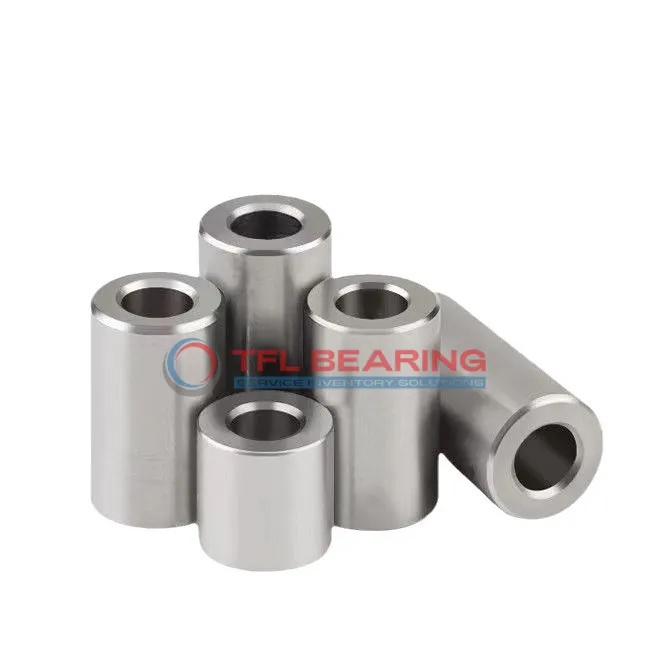

Inner Rings IR17X20X20-XL

Inner Rings IR17X20X20-XL

The IR17X20X20-XL is a needle roller bearing inner ring with a 17mm bore and 20mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it a space-saving choice for tight assemblies.
Pre-lubricated for smooth operation, this ring reduces friction and wear in high-load applications. The chrome steel construction ensures durability even under demanding conditions.
With a minimal radius of 0.3mm, it fits seamlessly into precision setups. The ring is interchangeable with INA bearings, offering flexibility for replacements or upgrades.
Ideal for use in gearboxes, transmissions, or industrial machinery where reliable needle roller support is needed. Weighing just 13.5g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR17X20X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 20 mm
  • Outer Dia Tolerance -0.012mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 13.5 g
  • Rmin 0.3 mm
Inner Rings IR17X20X20-XL dimension drawing
Download DWG Download PDF

Features

Why Choose IR17X20X20-XL Bearing for Precision Tasks?
IR17X20X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear in precision applications.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The metric dimensions and tight tolerances provide reliable performance in high-precision machinery.
With RoHS compliance, IR17X20X20-XL Bearing meets environmental standards while maintaining quality.

Application

Essential Roles of IR17X20X20-XL Bearing
IR17X20X20-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, IR17X20X20-XL Bearing fits well in transmission systems, providing smooth rotation and reducing friction. Its metric dimensions make it a versatile choice for various vehicle models.
For small machinery and tools, IR17X20X20-XL Bearing offers reliable performance due to its precise tolerances and lubrication. The lightweight design is particularly useful in portable equipment.
Medical devices like compact pumps benefit from IR17X20X20-XL Bearing’s consistent operation and resistance to wear. Its small size and high load capacity make it ideal for precision instruments.
