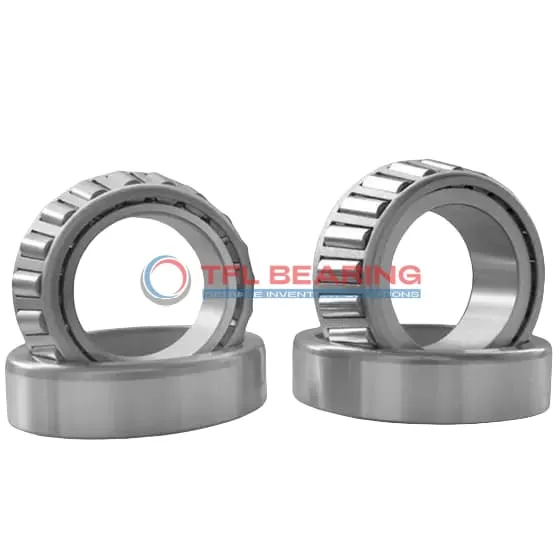

TS (Single Row Tapered Roller Bearings) (Imperial) HM231132-HM231110

TS (Single Row Tapered Roller Bearings) (Imperial) HM231132-HM231110

The HM231132-HM231110 is a single-row tapered roller bearing with a 5.5″ bore and 9.3125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 134,000 lbf radially and 19,000 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery or automotive systems where robust performance is needed.

Weighing 21.9 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM231132-HM231110
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 9.3125" x 2.25"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.3125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.23"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.05"
  • Cone Backface Backing Diameter 6.3"
  • Cup Frontface Backing Diameter 8.84"
  • Cup Backface Backing Diameter 8.54"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.45"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM231132
  • Cup Part Number HM231110
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM231100
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 134000 lbf
  • Static Radial Load 210000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 34800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 19000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 21.900 lb

Features

Performance Features of HM231132-HM231110 Bearing

HM231132-HM231110 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 134,000 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

HM231132-HM231110 Bearing’s standard radial clearance allows for smooth operation under different load conditions.
Its tapered roller design efficiently handles both radial and thrust loads, making it versatile for industrial use.

The bearing requires regular lubrication to maintain optimal performance and longevity.
Its ABEC-1 rating ensures consistent precision for standard applications.

Application

Industrial Uses of HM231132-HM231110 Bearing
HM231132-HM231110 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is HM231132-HM231110 Bearing Used?
You’ll often find HM231132-HM231110 Bearing in agricultural machinery, supporting gearboxes and axles that require reliable performance under heavy loads. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: HM231132-HM231110 Bearing
HM231132-HM231110 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load applications.

Automotive vs Aerospace: Applications of HM231132-HM231110 Bearing
In automotive systems, HM231132-HM231110 Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: HM231132-HM231110 Bearing
HM231132-HM231110 Bearing works well in automated conveyor systems, where its tapered rollers provide smooth motion under varying loads. The standard radial clearance offers flexibility for different operational needs.
