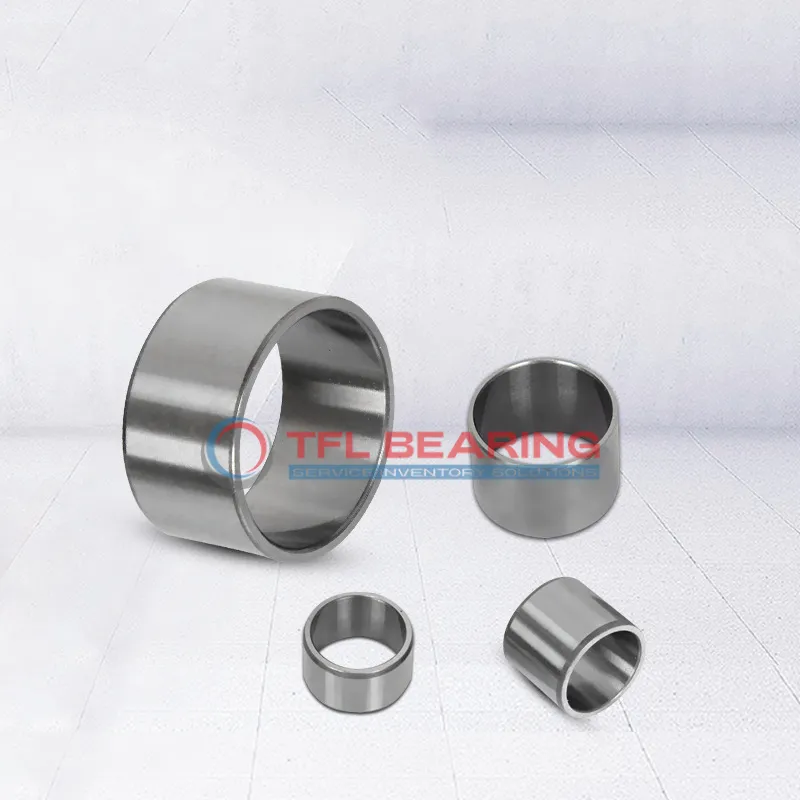

Inner Rings IR12X16X20-XL

Inner Rings IR12X16X20-XL

The IR12X16X20-XL is a needle roller bearing inner ring with a 12mm bore and 16mm outer diameter, crafted from sturdy chrome steel. Its compact width of 20mm makes it a space-saving choice for tight assemblies.
Designed for needle roller bearings, it handles high radial loads efficiently. The chrome steel construction ensures durability, while the pre-lubrication reduces friction for smoother operation.
With a minimum corner radius of 0.3mm, it fits seamlessly into precise setups. This model is interchangeable with INA bearings, offering flexibility for replacements or upgrades.
Ideal for applications like gear pumps or small transmissions where space and load capacity matter. Weighing just 13.5g, it’s lightweight yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR12X16X20-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 13.5 g
  • Rmin 0.3 mm
Inner Rings IR12X16X20-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR12X16X20-XL Bearing
IR12X16X20-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its precision needle roller design ensures smooth operation in compact spaces.
The bearing’s narrow outer diameter of 16 mm makes it suitable for applications with limited space.
With a width of 20 mm, it provides stable performance under radial loads.
IR12X16X20-XL Bearing comes pre-lubricated, reducing initial setup time and maintenance.
Its RoHS compliance ensures it meets environmental standards for safe use.

Application

Industrial Uses of IR12X16X20-XL Bearing
IR12X16X20-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling radial loads efficiently. The chrome steel construction ensures durability in high-speed applications.
Where Is IR12X16X20-XL Bearing Used?
You’ll often spot IR12X16X20-XL Bearing in automotive transmissions, where its precise tolerances help reduce friction and improve fuel efficiency. Its lubricated design also extends service life in demanding conditions.
Perfect Fit for Automation: IR12X16X20-XL Bearing
IR12X16X20-XL Bearing works well in robotic arms, providing smooth motion control thanks to its needle roller setup. The metric dimensions make it easy to integrate into various automated systems.
Medical vs Industrial: Where IR12X16X20-XL Bearing Excels
In medical devices like dental drills, IR12X16X20-XL Bearing offers quiet operation and reliability. For industrial uses, it’s a go-to for conveyor systems needing compact, high-load solutions.
