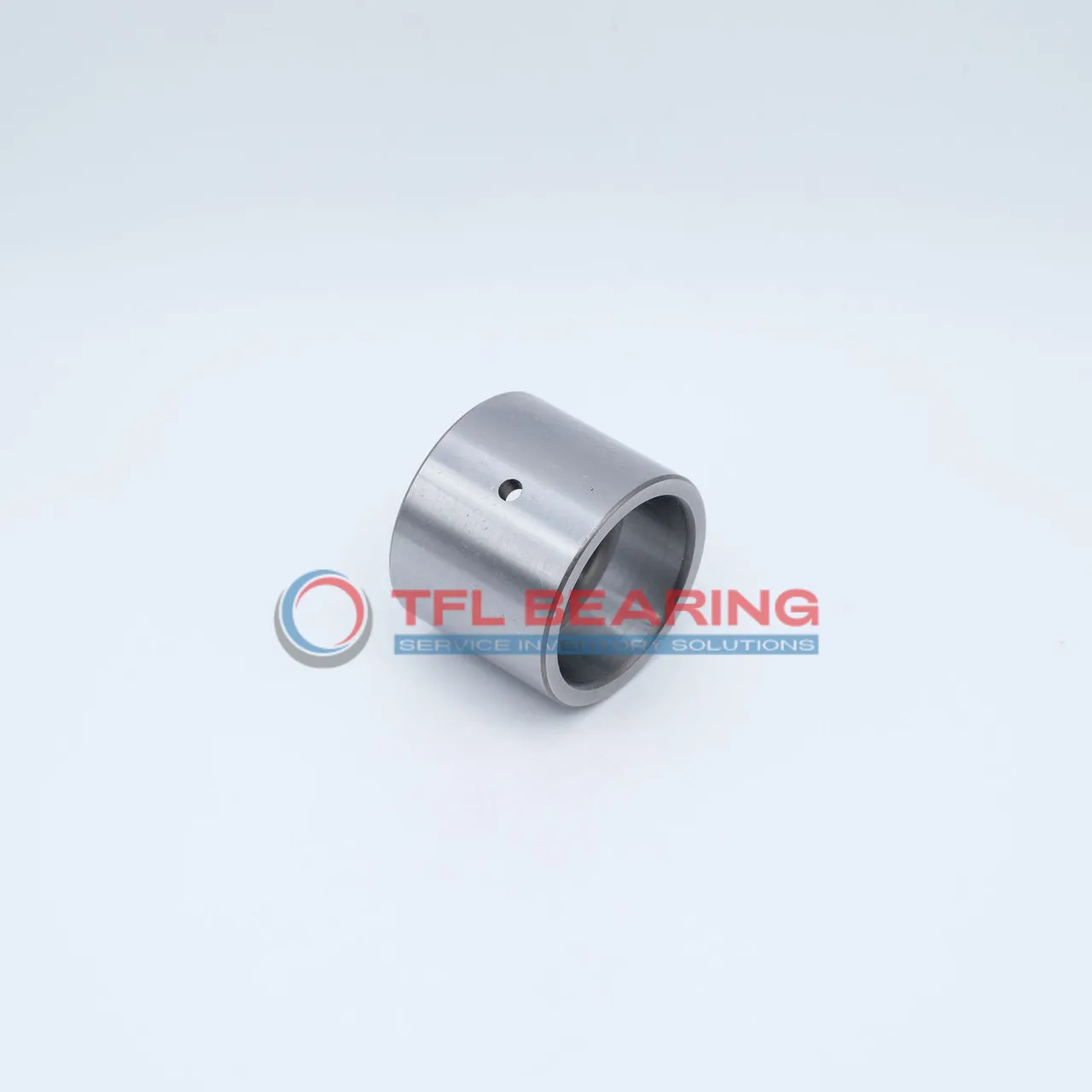

Inner Rings IR7X10X10.5-XL

Inner Rings IR7X10X10.5-XL

The IR7X10X10.5-XL is a needle roller bearing inner ring with a 7mm bore and 10mm outer diameter, crafted from durable chrome steel. It’s designed for metric systems and is interchangeable with INA bearings, offering flexibility in replacements.
With a width of 10.5mm, this compact component fits neatly into tight spaces. Its chrome steel construction ensures strength and longevity, even under regular use.
Pre-lubricated for smooth operation, it reduces friction and wear. The design includes a small chamfer of 0.3mm for easier installation.
Ideal for applications requiring precise movement, such as small gearboxes or automotive parts. Compliant with RoHS standards, it’s a safe and reliable choice for various mechanical setups. Weighing just 3.1g, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR7X10X10.5-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.023mm to -0.007mm
  • Width 10.5 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 3.1 g
  • Rmin 0.3 mm
Inner Rings IR7X10X10.5-XL dimension drawing
Download DWG Download PDF

Features

Performance Features of IR7X10X10.5-XL Bearing
IR7X10X10.5-XL Bearing is crafted from chrome steel, offering durability and resistance to wear.
Its needle roller design ensures efficient load distribution, making it suitable for compact spaces.
The precise bore diameter of 7 mm with tight tolerance guarantees a secure fit.
With a lightweight design at just 3.1 g, it maintains performance without adding bulk.

Application

Industrial Uses of IR7X10X10.5-XL Bearing
IR7X10X10.5-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling radial loads efficiently. The chrome steel material ensures durability in high-speed applications.
Where Is IR7X10X10.5-XL Bearing Used?
You’ll often find IR7X10X10.5-XL Bearing in automotive transmissions, particularly in smaller vehicles where space is limited. Its precise tolerances help maintain smooth gear shifts and reduce wear over time.
Built for Heavy-Duty Use: IR7X10X10.5-XL Bearing
IR7X10X10.5-XL Bearing works well in conveyor systems, where its lubricated design reduces friction during continuous operation. The metric sizing makes it easy to replace in existing machinery setups.
Automotive vs Industrial: Applications of IR7X10X10.5-XL Bearing
In automotive steering systems, IR7X10X10.5-XL Bearing provides reliable performance under varying loads. For industrial pumps, its compact size and strength make it a go-to choice for tight spaces.
