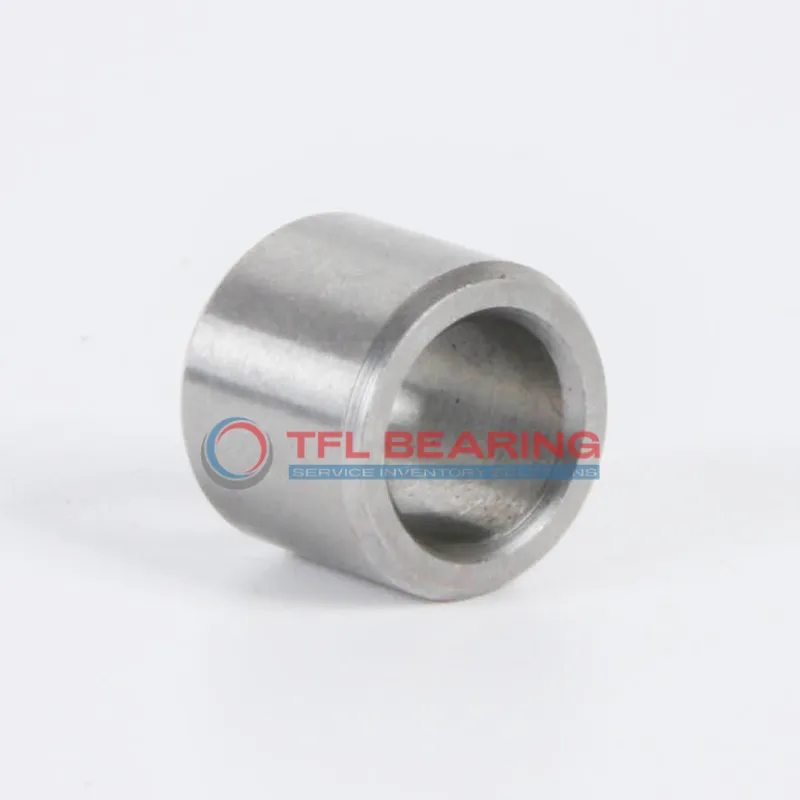

Inner Rings IR12X16X13-XL

Inner Rings IR12X16X13-XL

The IR12X16X13-XL is a needle roller bearing inner ring with a 12mm bore and 16mm outer diameter, crafted from sturdy chrome steel. It’s designed for smooth operation and comes pre-lubricated for immediate use.
With a compact width of 13mm and a lightweight build at just 8.5g, it fits snugly in tight spaces. The precise tolerances ensure reliable performance in demanding applications.
This inner ring is compatible with INA bearings, making it a versatile replacement option. Ideal for use in gearboxes, transmissions, or small machinery where space is limited.
RoHS compliant, it meets environmental standards while offering durability. The small chamfer radius of 0.3mm allows for easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR12X16X13-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.018mm to -0.004mm
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 8.5 g
  • Rmin 0.3 mm
Inner Rings IR12X16X13-XL dimension drawing
Download DWG Download PDF

Features

How Is IR12X16X13-XL Bearing Engineered for Reliability?
IR12X16X13-XL Bearing is crafted from chrome steel, offering strong resistance to wear and tear.
Its precise dimensions ensure a snug fit, enhancing stability in various applications.
The needle roller design reduces friction, promoting smooth operation under load.
With RoHS compliance, it meets environmental standards while maintaining performance.
Lubrication is pre-applied, reducing the need for frequent maintenance.
This makes IR12X16X13-XL Bearing a reliable choice for compact, high-load scenarios.

Application

Industrial Uses of IR12X16X13-XL Bearing
IR12X16X13-XL Bearing is commonly used in compact industrial gearboxes, where its needle roller design saves space while handling radial loads efficiently. The chrome steel construction ensures durability in high-speed applications.
In automotive systems, IR12X16X13-XL Bearing fits well in small transmissions and steering mechanisms, providing smooth operation. Its metric sizing makes it easy to integrate into various vehicle designs.
For automation equipment, IR12X16X13-XL Bearing works reliably in robotic joints and precision actuators. The lubricated design reduces friction, extending service life in continuous-use scenarios.
Where Is IR12X16X13-XL Bearing Used?
You’ll often find IR12X16X13-XL Bearing in medical devices like dental drills, where its compact size and precision are key. The chrome steel material also resists corrosion in sterile environments.
In consumer electronics, IR12X16X13-XL Bearing supports small motors in appliances like electric shavers. Its lightweight design (just 8.5g) helps maintain energy efficiency without sacrificing performance.
