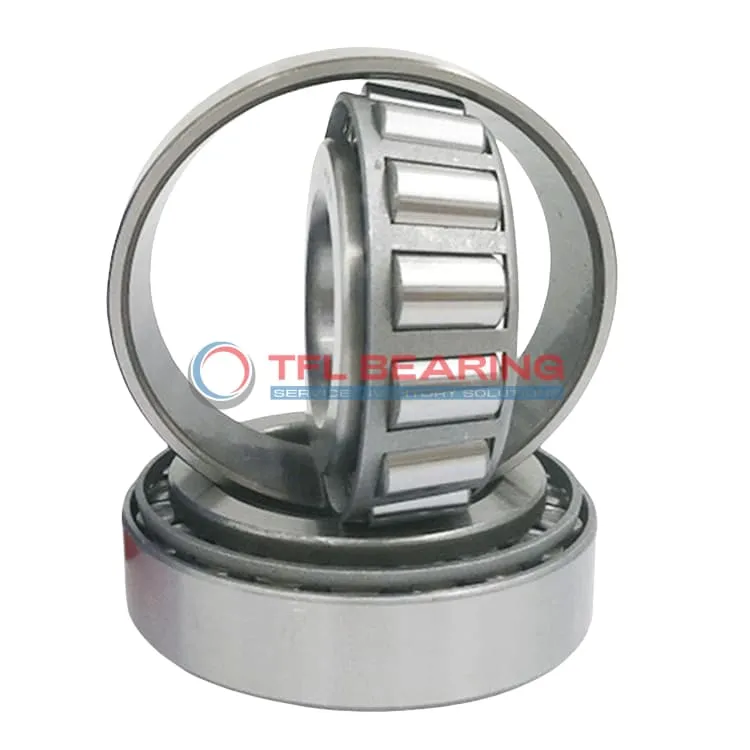

TS (Single Row Tapered Roller Bearings) (Imperial) 368-S-362A

TS (Single Row Tapered Roller Bearings) (Imperial) 368-S-362A

The 368-S-362A is a single-row tapered roller bearing with a 2.0312″ bore and 3.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing just 1.1 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 368-S-362A
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0312" x 3.5" x 0.8125"
  • Bore Dia 2.0312"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6501"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 368-S
  • Cup Part Number 362A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

Performance Features of 368-S-362A Bearing

368-S-362A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

368-S-362A Bearing’s standard radial clearance allows for smooth operation in most industrial settings.
Its ABEC-1 rating ensures consistent performance for general precision requirements.

The tapered roller design efficiently handles both radial and thrust loads.
This makes 368-S-362A Bearing a versatile choice for many mechanical systems.

Application

Industrial Uses of 368-S-362A Bearing
368-S-362A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where it handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.
In automotive applications, 368-S-362A Bearing fits well in wheel hubs and drivetrains, providing reliable performance under varying load conditions. The imperial sizing makes it a convenient choice for North American vehicle models.

What Makes 368-S-362A Bearing a Preferred Choice?
368-S-362A Bearing’s tapered roller design offers smooth operation in conveyor systems, reducing friction and wear over time. The open seal type allows for easy lubrication, extending its service life.
For industrial fans and pumps, 368-S-362A Bearing’s standard radial clearance ensures consistent performance even at high speeds. Its steel cage adds robustness, making it suitable for continuous operation.

Built for Heavy-Duty Use: 368-S-362A Bearing
368-S-362A Bearing excels in mining equipment, where its ability to handle heavy loads and harsh conditions is crucial. The chrome steel rollers provide excellent resistance to wear and fatigue.
In material handling systems, 368-S-362A Bearing’s combined load capacity makes it ideal for supporting conveyor rollers and lifting mechanisms. Its ABEC-1 rating ensures reliable precision for general industrial use.

Automotive vs Aerospace: Applications of 368-S-362A Bearing
In automotive systems, 368-S-362A Bearing is often found in differentials and transmissions, where its tapered rollers manage varying loads smoothly. The inch measurements align with standard US automotive specifications.
For aerospace ground equipment, 368-S-362A Bearing’s temperature tolerance and durability make it suitable for maintenance tools and support machinery. Its compliance with RoHS and REACH standards ensures environmental safety.
