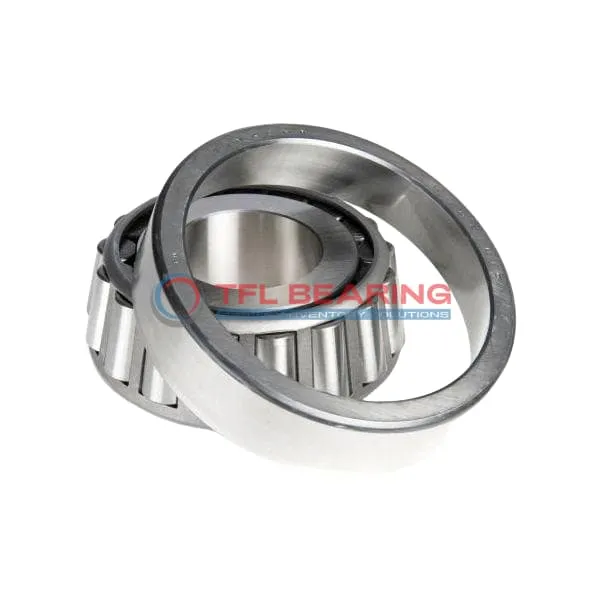

TS (Single Row Tapered Roller Bearings) (Imperial) HM813836-HM813810P

TS (Single Row Tapered Roller Bearings) (Imperial) HM813836-HM813810P

The HM813836-HM813810P is a single-row tapered roller bearing with a 2″ bore and 5″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 51500 lbf radially and 11500 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 5.3 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM813836-HM813810P
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 5" x 1.4375"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.72"
  • Cone Backface Backing Diameter 2.95"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM813836
  • Cup Part Number HM813810P
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM813800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51500 lbf
  • Static Radial Load 57600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 lb

Features

How Is HM813836-HM813810P Bearing Engineered for Reliability?

HM813836-HM813810P Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 51,500 lbf, making it suitable for heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes HM813836-HM813810P Bearing Suitable for High-Temperature Applications?

HM813836-HM813810P Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction resists thermal deformation, maintaining performance under stress.
Its standard radial clearance options allow for flexibility in different environments.
Proper lubrication ensures smooth operation even in demanding conditions.

Designed for Durability: HM813836-HM813810P Bearing

HM813836-HM813810P Bearing is built with high-quality chrome steel for long-lasting performance.
The tapered roller design handles both radial and thrust loads effectively.
Its robust construction minimises wear, extending the bearing’s service life.
With a static radial load capacity of 57,600 lbf, it excels in heavy-load scenarios.

Steel vs Ceramic Bearings: Strengths of HM813836-HM813810P Bearing

HM813836-HM813810P Bearing uses chrome steel for its rollers and rings, offering excellent strength and durability.
This material choice provides reliable performance under high dynamic radial loads up to 51,500 lbf.
The steel cage ensures proper roller alignment, reducing friction and maintenance needs.
Its ABEC-1 rating guarantees consistent precision in various applications.

Application

Industrial Uses of HM813836-HM813810P Bearing
HM813836-HM813810P Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, HM813836-HM813810P Bearing supports wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward replacement for Timken bearings in many vehicles.

For industrial conveyor systems, HM813836-HM813810P Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear during high-speed rotations.

What Makes HM813836-HM813810P Bearing a Preferred Choice?
HM813836-HM813810P Bearing is ideal for agricultural machinery, where its robust design withstands dirt and debris exposure. The standard radial clearance ensures smooth operation even in uneven load conditions.

In mining equipment, HM813836-HM813810P Bearing’s high dynamic load capacity makes it suitable for crushers and screens. The ABEC-1 rating provides a balance of precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: HM813836-HM813810P Bearing
HM813836-HM813810P Bearing excels in forestry machinery, handling shock loads from log handling with ease. Its tapered rollers distribute stress evenly, reducing the risk of premature failure.

For railway applications, HM813836-HM813810P Bearing’s temperature tolerance ensures reliability in varying weather conditions. The inch measurements simplify maintenance and replacements in older rail systems.

Automotive vs Aerospace: Applications of HM813836-HM813810P Bearing
In automotive gearboxes, HM813836-HM813810P Bearing provides smooth power transmission under high torque. Its compatibility with Timken designs makes it a versatile choice for repairs.

For aerospace ground equipment, HM813836-HM813810P Bearing’s static load capacity supports heavy lifting mechanisms. The steel cage prevents deformation during intense operational cycles.
