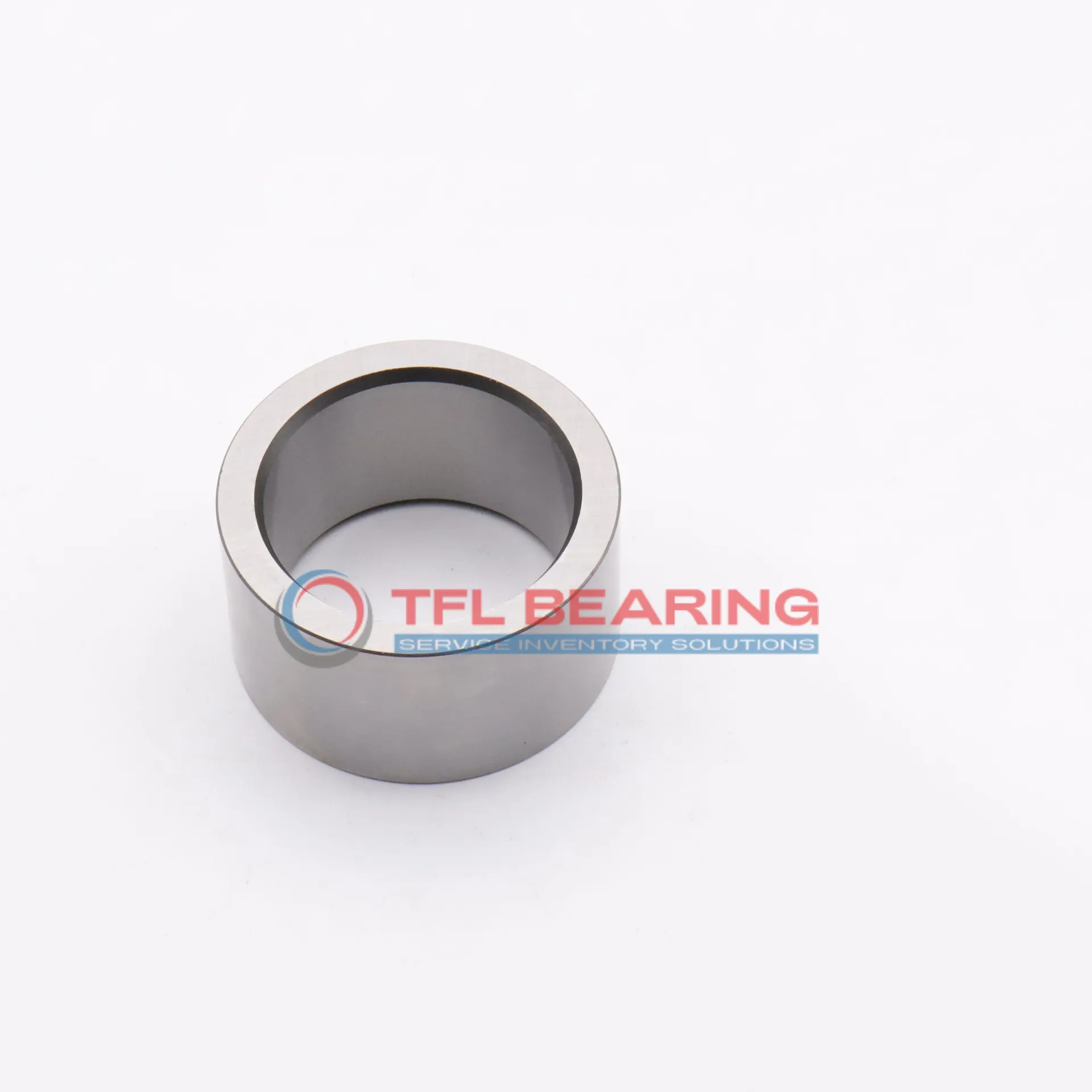

Inner Rings IR100X110X30-XL

Inner Rings IR100X110X30-XL

This inner ring, part of the IR series, features a 100mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It’s designed for needle roller bearings and comes pre-lubricated for smooth operation.
With a width of 30mm and tight tolerances, it ensures precise fit and reliable performance. The chrome steel construction offers good wear resistance for long service life.
The design includes a 1.1mm radius for easier installation and reduced stress concentration. It’s interchangeable with INA bearings, making replacement straightforward.
Weighing 350g, this RoHS-compliant component suits various industrial applications where space-saving needle roller bearings are needed, such as gearboxes or transmission systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number IR100X110X30-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Series IR
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.027mm to -0.014mm
  • Width 30 mm
  • Width Tolerance -0.2mm to 0
  • Material Chrome Steel
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 350 g
  • Rmin 1.1 mm
Inner Rings IR100X110X30-XL dimension drawing
Download DWG Download PDF

Features

How Is IR100X110X30-XL Bearing Engineered for Reliability?
IR100X110X30-XL Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances provide a secure fit, enhancing operational stability.
The needle roller design allows for efficient load distribution, making it suitable for high-performance applications.
With RoHS compliance, IR100X110X30-XL Bearing meets stringent environmental and safety standards.

Application

Industrial Uses of IR100X110X30-XL Bearing
IR100X110X30-XL Bearing is commonly used in industrial gearboxes, where its needle roller design efficiently handles high radial loads. The chrome steel construction ensures durability in demanding environments like conveyor systems.
What Makes IR100X110X30-XL Bearing a Preferred Choice?
In automotive applications, IR100X110X30-XL Bearing fits well in transmission systems, providing smooth rotation under heavy loads. Its metric dimensions make it compatible with various vehicle models, ensuring versatility.
Perfect Fit for Automation: IR100X110X30-XL Bearing
For automated machinery, IR100X110X30-XL Bearing offers reliable performance in robotic arms and assembly lines. The lubricated design reduces friction, enhancing operational efficiency in continuous-use scenarios.
Medical vs Industrial: Where IR100X110X30-XL Bearing Excels
While IR100X110X30-XL Bearing is robust enough for industrial presses, its precision also suits medical imaging devices. The tight tolerances ensure consistent performance in both high-load and high-precision applications.
