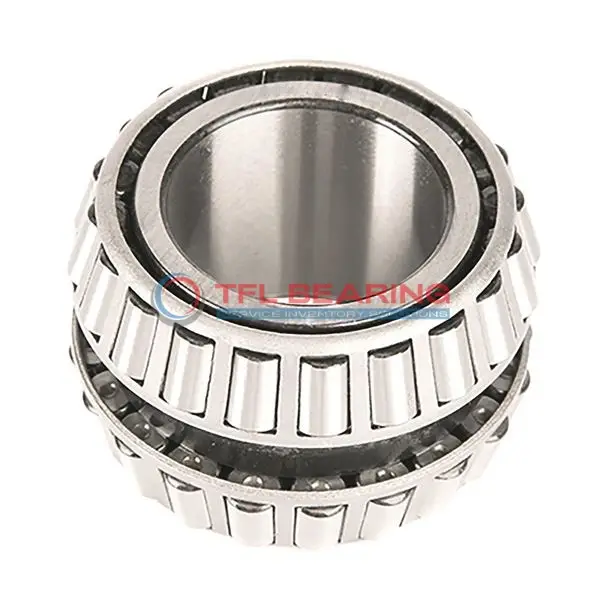

HH814547 Single Cones (Imperial)

HH814547 Single Cones (Imperial)

The HH814547 is a single-row tapered roller bearing cone with a 2.625″ bore, made from sturdy chrome steel. It handles combined loads with a dynamic radial capacity of 76100 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures durability under heavy loads. The cone width is 2.25″, making it compact yet robust for its size.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH814547
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number HH814547-HH814510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH814500
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 2.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 3.35"
  • Cone Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location -0.48"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 76100 lbf
  • Static Radial Load 95000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 19700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 133000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 16500 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 34400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does HH814547 Bearing Handle Combined Loads?

HH814547 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 76,100 lbf, ensuring reliable performance in demanding conditions.
The tapered roller design provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose HH814547 Bearing for Heavy-Duty Applications?

HH814547 Bearing features a single-row tapered roller design, ideal for handling combined loads.
The chrome steel construction enhances durability, while the steel cage maintains roller alignment.
Its static radial load capacity of 95,000 lbf makes it suitable for heavy-duty machinery.
The standard radial clearance ensures flexibility for different operational needs.

Engineered for Precision: HH814547 Bearing

HH814547 Bearing’s precise cone width and backface dimensions ensure accurate fit and performance.
The effective center location of -0.48″ optimises load distribution and reduces wear.
Its ABEC-1 rating guarantees consistent quality for industrial applications.
The open seal design allows for easy inspection and maintenance.

Steel vs Chrome Steel Bearings: Strengths of HH814547 Bearing

HH814547 Bearing combines chrome steel rings with a steel cage for balanced strength and durability.
The tapered roller design minimises friction, extending the bearing’s service life.
With a dynamic thrust rating of 16,500 lbf, it handles demanding applications with ease.
Its compliance with RoHS and REACH standards ensures environmental safety.

Application

Industrial Uses of HH814547 Bearing
HH814547 Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is HH814547 Bearing Used?
You’ll often find HH814547 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a popular choice for North American equipment manufacturers.

Built for Heavy-Duty Use: HH814547 Bearing
HH814547 Bearing excels in industrial fans and pumps, where its chrome steel construction withstands high radial and thrust loads. The steel cage adds durability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of HH814547 Bearing
In automotive applications, HH814547 Bearing is used in wheel hubs and differentials, while in aerospace, it supports auxiliary systems. Its ABEC-1 rating ensures consistent performance across both sectors.

Essential Roles of HH814547 Bearing
HH814547 Bearing plays a key role in railway applications, particularly in axle boxes where its dynamic load capacity is crucial. The standard radial clearance option provides flexibility for various operational needs.
