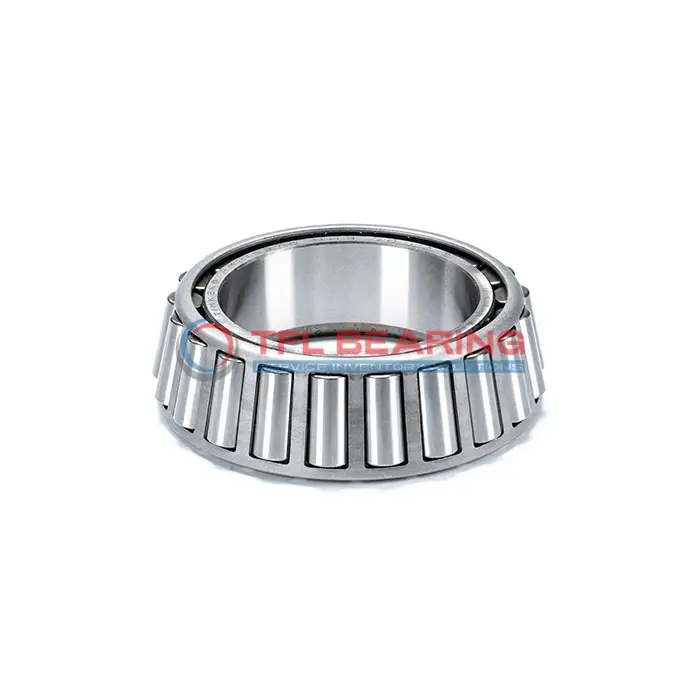

HH228336 Single Cones (Imperial)

HH228336 Single Cones (Imperial)

The HH228336 is a single-row tapered roller bearing cone with a 4.72″ bore, made from durable chrome steel. It handles combined loads up to 189,000 lbf radially and 27,000 lbf thrust, suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The cone has a standard radial clearance, with options for C3, C4, or C5 if needed.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or vehicle axles where combined loads are common.

Operating in temperatures from -30°C to 110°C, it’s built to last. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH228336
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series HH228300
  • Bore Dia 4.7234"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 3.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.16"
  • Cone Frontface Backing Diameter 5.59"
  • Cone Backface Backing Diameter 5.79"
  • Cage Cone Frontface Clearance 0.02"
  • Cage Cone Backface Clearance 0.28"
  • Effective Center Location -0.92"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 189000 lbf
  • Static Radial Load 279000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 49100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 330000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 27000 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 85500 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Is HH228336 Bearing Engineered for Reliability?

HH228336 Bearing is constructed with chrome steel rings, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 189,000 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes HH228336 Bearing Suitable for High-Temperature Applications?

HH228336 Bearing withstands temperatures up to 110°C, making it ideal for demanding industrial settings.
The chrome steel construction ensures stability and strength even under high thermal stress.
Its open design allows for efficient heat dissipation, preventing overheating.
This bearing maintains performance without compromising on longevity.

Built for Durability: HH228336 Bearing

HH228336 Bearing features a single-row tapered roller design, optimised for heavy-duty applications.
The chrome steel rings and steel cage provide excellent wear resistance and load distribution.
With a static radial load capacity of 279,000 lbf, it handles extreme pressures with ease.
Its standard radial clearance ensures smooth operation and easy installation.

Steel vs Ceramic Bearings: Strengths of HH228336 Bearing

HH228336 Bearing uses chrome steel for its rings and cage, balancing cost and performance.
This material choice ensures high load capacity and resistance to wear in industrial applications.
The tapered roller design efficiently manages both radial and thrust loads.
Its ABEC-1 rating guarantees consistent precision and reliability.

Why Choose HH228336 Bearing for Precision Tasks?

HH228336 Bearing offers precise performance with its ABEC-1 rating and standard radial clearance.
The tapered roller design ensures accurate load distribution and smooth operation.
Its effective centre location of -0.92″ enhances stability in complex assemblies.
This bearing is ideal for applications requiring both precision and durability.

Application

Industrial Uses of HH228336 Bearing
HH228336 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes HH228336 Bearing a Preferred Choice?
In automotive applications, HH228336 Bearing supports wheel hubs and differential systems, thanks to its high dynamic radial load capacity. The inch sizing makes it a go-to option for American and British vehicle manufacturers.

Built for Heavy-Duty Use: HH228336 Bearing
For industrial gearboxes, HH228336 Bearing’s chrome steel construction ensures reliable performance under continuous operation. Its steel cage provides added durability, making it suitable for high-torque environments.

Automotive vs Aerospace: Applications of HH228336 Bearing
In automotive settings, HH228336 Bearing excels in axle assemblies, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures consistent performance across both industries.

Where Is HH228336 Bearing Used?
You’ll often find HH228336 Bearing in agricultural machinery like tractors and harvesters, where its robust design withstands rough terrain. The standard radial clearance offers flexibility for various load conditions.
