HH224346V Single Cones (Imperial)

Brand: TFL Bearing Interchangeable: Timken HH224346V Inch Open
Part number: HH224346V
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia4.5"
Bore Dia Tolerance+0.001" to 0
Cone Width2.625"
Cone Width Tolerance+0.003" to -0.01
Cone Frontface Backing Diameter5.16"
Cone Backface Backing Diameter5.63"
Performance
Dynamic Radial Load181,000 lbf
Static Radial Load204,000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)47,000 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)315,000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)26,200 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)81,800 lbf
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementInch
TypeCones
Bearing Part NumberHH224346V-HH224310 , HH224346V-HH224310V , HH224346V-HH224314
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionSingle Row
Seal TypeOpen
SeriesHH224300
Cone Backface ToClear Radius0.28"
Cage Cone Frontface Clearance0.15"
Cage Cone Backface Clearance0.16"
Effective Center Location-0.74"
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Material
Ring MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

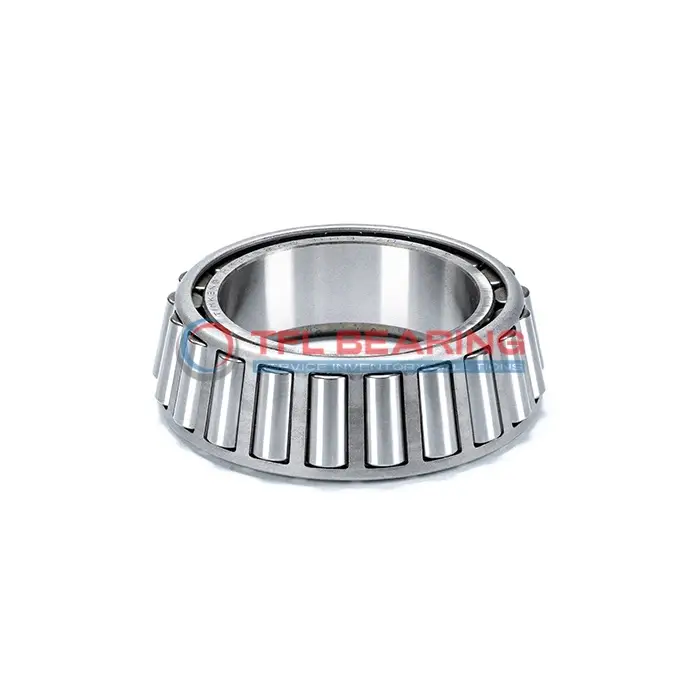

Product photo
HH224346V Single Cones (Imperial)

Description

The HH224346V is a single-row tapered roller bearing cone with a 4.5-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 181,000 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance under heavy loads. The cone width of 2.625 inches provides stability, making it suitable for demanding applications.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or heavy equipment where combined loads are common.

Compliant with RoHS and REACH standards, it’s a safe and robust choice for various engineering needs. The standard radial clearance can also be adjusted to C3, C4, or C5 for specific requirements.

Features

How Does HH224346V Bearing Handle Combined Loads?

HH224346V Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 181,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in varied environments.

Application

Industrial Uses of HH224346V Bearing
HH224346V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is HH224346V Bearing Used?
You’ll often find HH224346V Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American-made vehicles and industrial gearboxes.

Built for Heavy-Duty Use: HH224346V Bearing
This bearing excels in agricultural machinery, such as tractors and harvesters, thanks to its high dynamic radial load capacity. The steel cage adds extra strength for long-lasting performance.

Automotive vs Aerospace: Applications of HH224346V Bearing
In automotive settings, HH224346V Bearing supports heavy axles and transmissions, while in aerospace, it’s used in landing gear systems. Its temperature range suits both environments well.

Key Fields for HH224346V Bearing
HH224346V Bearing is ideal for railway applications, where its tapered rollers manage high radial and thrust loads. The standard radial clearance ensures smooth operation in varying conditions.
