HH221449 Single Cones (Imperial)

Brand: TFL Bearing Interchangeable: Timken HH221449 Inch Open
Part number: HH221449
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia4"
Bore Dia Tolerance+0.001" to 0
Cone Width2.265"
Cone Width Tolerance+0.003" to -0.01
Cone Frontface Backing Diameter4.56"
Cone Backface Backing Diameter5.16"
Performance
Dynamic Radial Load120,000 lbf
Static Radial Load156,000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)31,100 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)209,000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)17,800 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)54,200 lbf
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementInch
TypeCones
Bearing Part NumberHH221449-HH221410 , HH221449-HH221410-B , HH221449-HH221410XX , HH221449-HH221416
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionSingle Row
Seal TypeOpen
SeriesHH221400
Cone Backface ToClear Radius0.31"
Cage Cone Frontface Clearance0.16"
Cage Cone Backface Clearance0.08"
Effective Center Location-0.59"
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Material
Ring MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

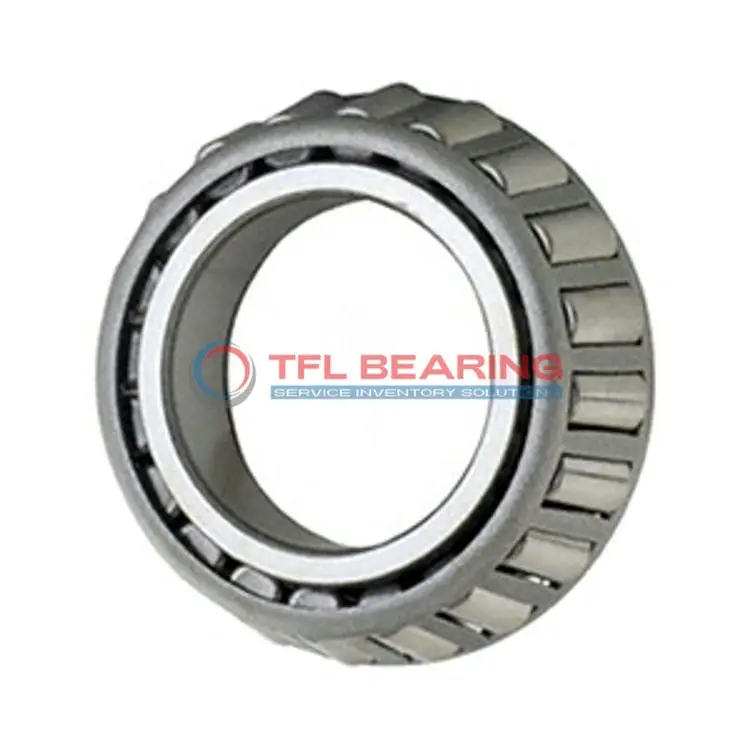

Product photo
HH221449 Single Cones (Imperial)

Description

The HH221449 is a single-row tapered roller bearing with a 4-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 120,000 lbf and static loads up to 156,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or vehicle axles where combined loads are common.

With standard radial clearance and ABEC-1 rating, it offers a balance of precision and durability. Compliant with RoHS and REACH standards for safe use.

Features

How Does HH221449 Bearing Handle Combined Loads?

HH221449 Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 120,000 lbf, ensuring reliable performance in heavy-duty applications.

The tapered roller design of HH221449 Bearing efficiently distributes stress, enhancing durability.
With a temperature range of -30° to 110°C, it performs well in varied operating conditions.

HH221449 Bearing features a steel cage that maintains roller alignment, reducing wear.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of HH221449 Bearing
HH221449 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is HH221449 Bearing Used?
You’ll often find HH221449 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. Its inch sizing makes it a fit for older or imperial-based systems.

Built for Heavy-Duty Use: HH221449 Bearing
HH221449 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The steel cage adds strength, making it suitable for applications with frequent load changes.

Automotive vs Aerospace: Applications of HH221449 Bearing
In automotive axles, HH221449 Bearing offers stability for heavy vehicles like trucks and buses. While not typically used in aerospace, its precision suits other high-load scenarios like rail transport.

Key Fields for HH221449 Bearing
HH221449 Bearing is ideal for wind turbine systems, where its tapered rollers manage variable wind forces. The ABEC-1 rating ensures consistent performance without over-engineering costs.
