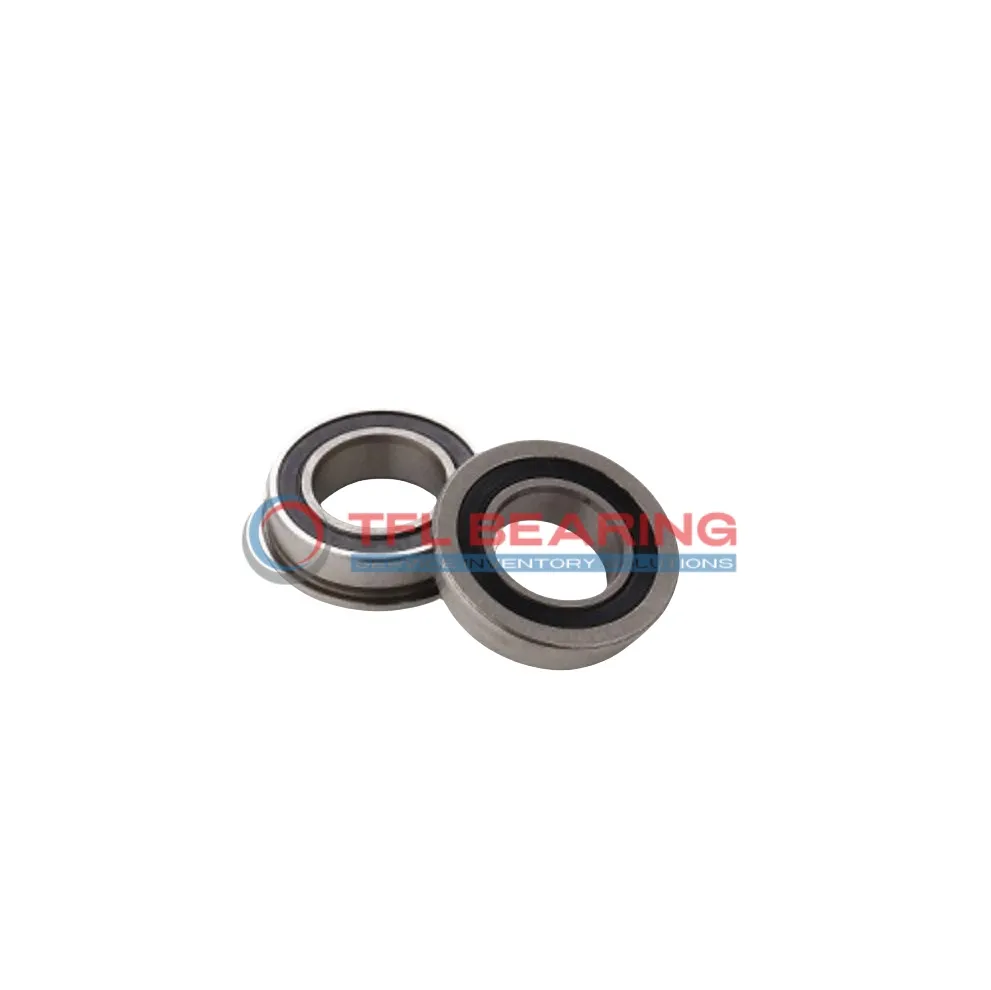

Flanged Deep Groove Ball Bearings W 635 R-2RS1

Flanged Deep Groove Ball Bearings W 635 R-2RS1

The W 635 R-2RS1 is a compact flanged deep groove ball bearing, measuring 5mm by 19mm with a 6mm width. Its stainless steel construction offers good corrosion resistance and durability.

This bearing handles radial loads up to 456 lbf and can spin at speeds up to 24,000 RPM. The sealed design keeps grease in and contaminants out for reliable performance.

The flange provides secure mounting, making it ideal for small motors or tight spaces. It works in temperatures from -30°C to 120°C.

Weighing just 9.2 grams, it’s a lightweight solution for applications like small appliances or precision instruments. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 635 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 22 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 456 lbf
  • Static Radial Load 198 lbf
  • Max Speed 24000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0092 kg
  • Price（$） 1.7
Flanged Deep Groove Ball Bearings W 635 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 635 R-2RS1 Bearing Reduce Friction?

W 635 R-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps grease in place, reducing wear and maintaining consistent performance.
The single-row construction and precise tolerances help in achieving quiet and efficient radial load handling.
With a maximum speed of 24,000 rpm, it offers reliable performance in various applications.

Application

Industrial Uses of W 635 R-2RS1 Bearing
W 635 R-2RS1 Bearing is commonly used in small industrial motors and pumps, where its sealed design keeps contaminants out and extends service life. The stainless steel construction also makes it suitable for humid or corrosive environments.

In automotive applications, W 635 R-2RS1 Bearing fits well in compact components like window regulators or wiper systems. Its flange provides secure mounting, reducing vibration and noise during operation.

For consumer electronics, W 635 R-2RS1 Bearing’s small size and smooth performance make it ideal for devices like cooling fans or printer mechanisms. The grease lubrication ensures quiet running, which is essential for home and office use.

Automation systems benefit from W 635 R-2RS1 Bearing’s precision in robotic arms or conveyor guides. The metric dimensions allow easy integration into European and Asian machinery designs.
