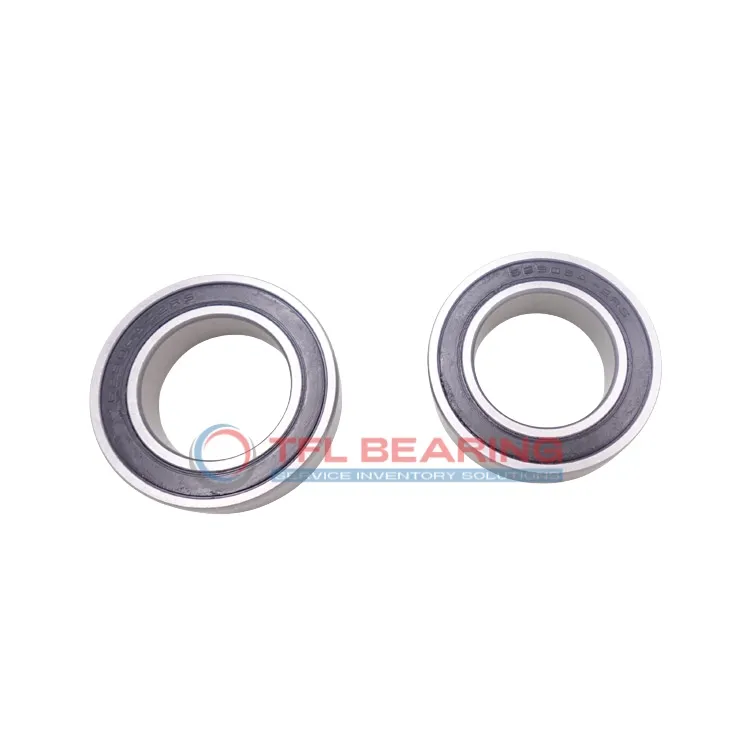

Stainless Steel Deep Groove Ball Bearings W 61704-2RS1

Stainless Steel Deep Groove Ball Bearings W 61704-2RS1

The W 61704-2RS1 is a compact stainless steel deep groove ball bearing, measuring 20mm by 27mm by 4mm. Its sealed design keeps out dirt and moisture, making it low-maintenance.

It handles radial loads up to 132 lbf and spins smoothly at speeds up to 14,000 RPM. The stainless steel construction resists corrosion and works in temperatures from -30°C to 120°C.

Pre-lubricated with grease, this bearing is ready to use straight out of the box. Its small size and light weight (just 5.8 grams) make it ideal for tight spaces.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for small motors, medical devices, or food processing equipment where hygiene matters.

Compliant with RoHS and REACH standards, it’s safe for various industries. The P0 tolerance ensures consistent performance in everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61704-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 27 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 132 lbf
  • Static Radial Load 88 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 0.0058 kg
Stainless Steel Deep Groove Ball Bearings W 61704-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61704-2RS1 Bearing for Precision Tasks?

W 61704-2RS1 Bearing is crafted from stainless steel, offering excellent corrosion resistance and durability.
Its sealed design protects against contaminants, making it ideal for precision applications.

The compact size of 20 mm×27 mm×4 mm allows for easy integration into tight spaces.
With a maximum speed of 14,000 rpm, it ensures smooth and efficient operation.

W 61704-2RS1 Bearing’s grease lubrication reduces maintenance needs while extending service life.
Its dynamic radial load capacity of 132 lbf provides reliable performance under stress.

Application

Common Applications of W 61704-2RS1 Bearing
W 61704-2RS1 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its compact size and sealed design make it ideal for protecting against dust and moisture.

In automation systems, W 61704-2RS1 Bearing ensures smooth operation in precision components like robotic arms and 3D printers. The stainless steel construction offers good resistance to corrosion, even in demanding environments.

For medical devices, W 61704-2RS1 Bearing provides reliable performance in equipment like dental tools and lab instruments. The grease lubrication helps maintain quiet operation, which is essential in sensitive settings.

In automotive applications, W 61704-2RS1 Bearing supports small gear mechanisms and sensors, where its radial load capacity is particularly useful. The metric dimensions ensure compatibility with a variety of vehicle designs.
