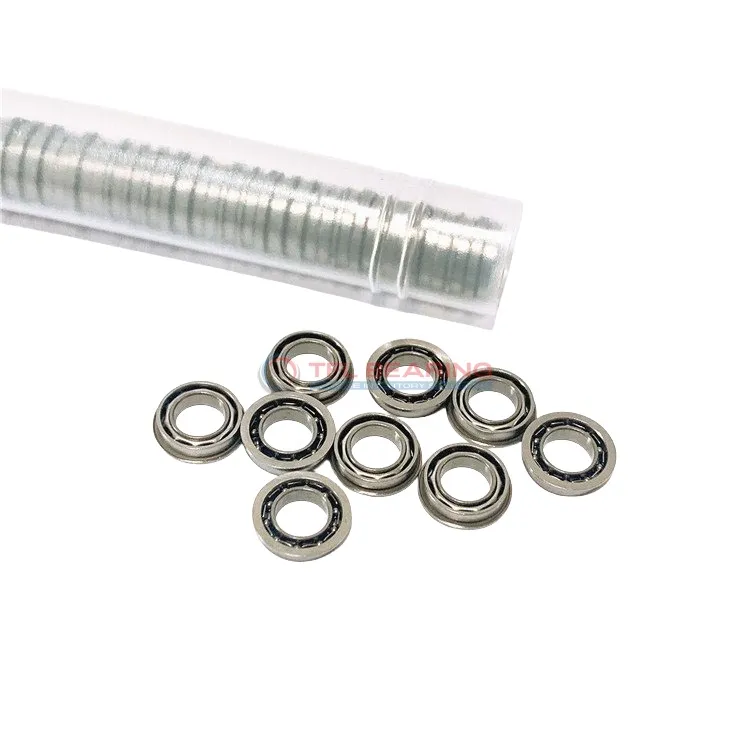

Flanged Deep Groove Ball Bearings W 61900 R

Flanged Deep Groove Ball Bearings W 61900 R

The W 61900 R is a compact flanged deep groove ball bearing, measuring 10mm in bore and 22mm in outer diameter, with a slim 6mm width. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 526 lbf and can spin at high speeds, reaching up to 45,000 RPM. The open design allows for easy lubrication and maintenance when needed.

The flange provides extra stability, making it easier to mount and keeping the bearing securely in place. Its lightweight construction, at just 9.9 grams, makes it suitable for applications where weight is a concern.

Ideal for small machinery, electric motors, or precision instruments where space is limited. Compliant with RoHS and REACH standards, ensuring safe and environmentally friendly use.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61900 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 25 mm
  • Flange Thickness 1.5 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 526 lbf
  • Static Radial Load 281 lbf
  • Max Speed 45000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0099 kg
  • Price（$） 2.4
Flanged Deep Groove Ball Bearings W 61900 R dimension drawing
Download DWG Download PDF

Features

Engineered for Precision: W 61900 R Bearing

W 61900 R Bearing is crafted with stainless steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 526 lbf makes it suitable for various applications.

The single-row design and open seal type allow for easy maintenance and installation.
With a maximum speed of 45,000 rpm, it delivers reliable performance in high-speed operations.

W 61900 R Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its stainless steel construction provides resistance to corrosion, enhancing durability.

The flanged outer dia of 25 mm ensures secure mounting in compact spaces.
This design feature adds stability, making it ideal for precision instruments.

Application

Common Applications of W 61900 R Bearing
W 61900 R Bearing is widely used in small electric motors, where its compact size and stainless steel construction ensure reliable performance. The flanged design helps with easy mounting, making it a handy choice for tight spaces.

In consumer electronics like printers and cooling fans, W 61900 R Bearing offers smooth rotation thanks to its low-friction design. Its lightweight build also contributes to energy efficiency in these devices.

For automation systems, W 61900 R Bearing fits well in robotic arms and small conveyor belts, providing precise movement. The open seal type allows for straightforward maintenance in dusty environments.

Medical devices such as dental tools benefit from W 61900 R Bearing’s corrosion-resistant materials. Its high-speed capability ensures consistent operation in sensitive applications.
