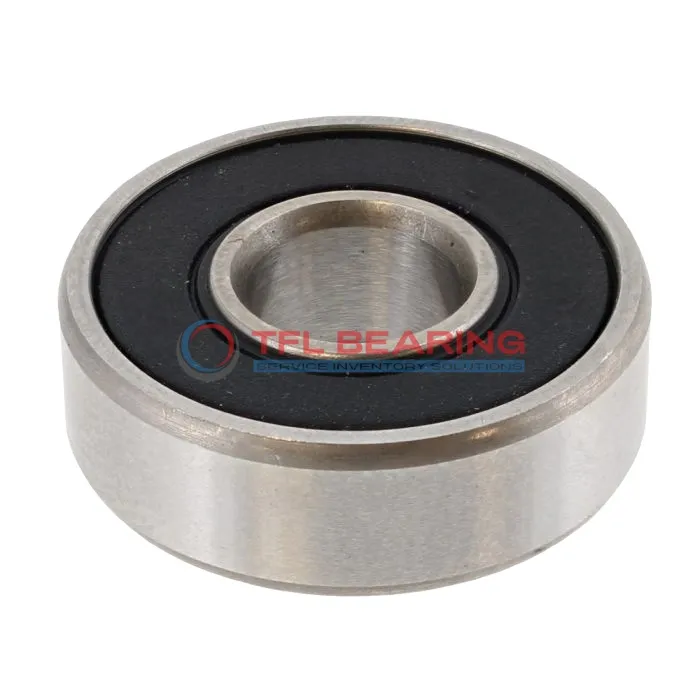

Single Row Deep Groove Ball Bearings 61912-2RS1/W64

The 61912-2RS1/W64 is a single-row deep groove ball bearing with a 60mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3709 lbf and spins smoothly at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 0.2kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 61912-2RS1/W64
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 60 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 85 mm
Outer Dia Tolerance -0.013mm to 0
Width 13 mm
Width Tolerance -0.15mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3709 lbf
Static Radial Load 2698 lbf
Max Speed 10000 rpm
Weight 0.2 kg
price（$） 69.786

Single Row Deep Groove Ball Bearings 61912-2RS1/W64 dimension drawing

Download DWG Download PDF

Features

Performance Features of 61912-2RS1/W64 Bearing

61912-2RS1/W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 3709 lbf.
Its sealed design and solid oil lubrication ensure smooth operation with minimal maintenance.
The ABEC 1 tolerance class guarantees consistent performance in various applications.
With a maximum speed of 10,000 rpm, it delivers reliable efficiency in demanding conditions.

Application

Industrial Uses of 61912-2RS1/W64 Bearing
61912-2RS1/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

What Makes 61912-2RS1/W64 Bearing a Preferred Choice?
In automotive applications, 61912-2RS1/W64 Bearing works well in alternators and cooling fans due to its reliable radial load capacity. The chrome steel construction provides good wear resistance for continuous operation.

Perfect Fit for Automation: 61912-2RS1/W64 Bearing
For automated systems, 61912-2RS1/W64 Bearing offers smooth performance in conveyor belts and robotic arms. Its compact size and sealed design make it suitable for space-constrained installations.

Medical vs Industrial: Where 61912-2RS1/W64 Bearing Excels
While 61912-2RS1/W64 Bearing handles industrial loads well, it’s also found in medical devices like dental drills where precision matters. The temperature range allows it to perform in various environments.

Where to Use 61912-2RS1/W64 Bearing
In household appliances, 61912-2RS1/W64 Bearing can be found in washing machines and power tools. The sealed construction prevents grease leakage, keeping appliances clean during use.
