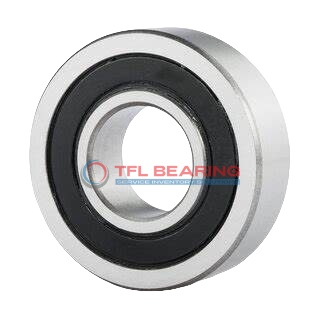

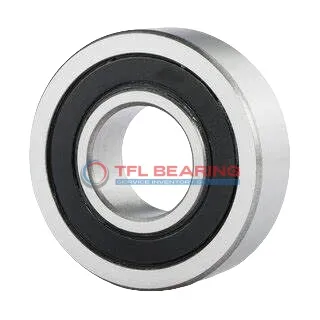

Single Row Angular Contact Ball Bearings (General) 7302 BE-2RZP

Single Row Angular Contact Ball Bearings (General) 7302 BE-2RZP

The 7302 BE-2RZP is a single-row angular contact ball bearing with a 15mm bore and 42mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2925 lbf and spins smoothly at speeds up to 17000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter operation. The 40° contact angle makes it suitable for combined radial and axial loads.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It works well in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for applications like pumps or small gearboxes where precision and durability are needed. Weighing just 0.082kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7302 BE-2RZP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 13 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 26 mm
  • External Diameter On Inner Ring (Small Side Face) 20.73 mm
  • Chamfer Dimension 1 mm
  • Distance Pressure Point (a) 18.6 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2925 lbf
  • Static Radial Load 1508 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.082 kg
  • Price（$） 10.14
Single Row Angular Contact Ball Bearings (General) 7302 BE-2RZP dimension drawing
Download DWG Download PDF

Features

How Does 7302 BE-2RZP Bearing Reduce Friction?

7302 BE-2RZP Bearing features a 40° contact angle, optimising load distribution and reducing friction during operation.
The sealed design and nylon cage help maintain smooth performance, even at high speeds up to 17,000 rpm.
Its chrome steel construction ensures durability while handling dynamic radial loads of 2925 lbf.
With a P6 tolerance class, it offers reliable precision for various applications.

Application

Industrial Uses of 7302 BE-2RZP Bearing
7302 BE-2RZP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The sealed construction keeps contaminants out, extending service life in dusty workshops.

What Makes 7302 BE-2RZP Bearing a Preferred Choice?
In automotive applications like electric motors, 7302 BE-2RZP Bearing offers smooth performance thanks to its nylon cage and P6 precision. The 40° contact angle ensures stability even at higher speeds.

Perfect Fit for Automation: 7302 BE-2RZP Bearing
This bearing works well in robotic arms, providing precise movement with minimal friction. Its compact 15mm bore fits neatly into space-constrained designs without sacrificing durability.

Medical vs Industrial: Where 7302 BE-2RZP Bearing Excels
While suitable for industrial gearboxes, 7302 BE-2RZP Bearing also meets medical equipment needs like dental drills, where quiet operation and reliability are key. The chrome steel construction resists corrosion in both environments.

How Does 7302 BE-2RZP Bearing Support High-Speed Operations?
With a maximum speed of 17,000 rpm, this bearing performs reliably in spindle applications. The lubricated seals reduce maintenance while ensuring consistent rotation in demanding conditions.
