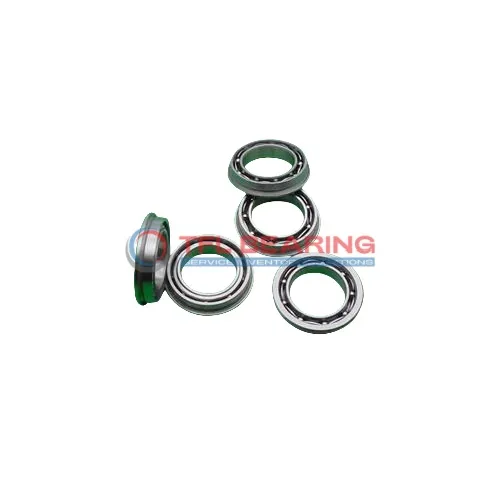

Flanged Deep Groove Ball Bearings W 603 R

Flanged Deep Groove Ball Bearings W 603 R

The W 603 R is a compact flanged deep groove ball bearing, measuring just 3mm by 9mm with a 10.5mm flange. Made entirely from stainless steel, it offers good resistance to corrosion and wear.

It handles radial loads up to 73 lbf and can spin at impressive speeds up to 90,000 RPM. The open design allows for easy lubrication when needed.

The flange provides secure mounting, preventing slippage in tight spaces. Its small size and lightweight (only 0.001kg) make it ideal for precision applications.

Suitable for use in small motors, medical devices, or instruments where space is limited. Complies with RoHS and REACH standards for environmental safety.

Interchangeable with SKF bearings, offering flexibility for replacements or upgrades. Works well in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 603 R
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 3 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 9 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 10.5 mm
  • Flange Thickness 0.7 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 73 lbf
  • Static Radial Load 21 lbf
  • Max Speed 90000 rpm
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.001 kg
  • Price（$） 1.5
Flanged Deep Groove Ball Bearings W 603 R dimension drawing
Download DWG Download PDF

Features

Why Choose W 603 R Bearing for Precision Tasks?

W 603 R Bearing features a compact design with stainless steel rings and balls, ideal for precision applications.
Its small size (3 mm×10.5 mm×3 mm) and high-speed capability (90,000 rpm) make it suitable for delicate instruments.

The open seal type ensures easy lubrication access, while the stainless steel cage enhances durability.
With a dynamic radial load capacity of 73 lbf, it balances strength and precision effortlessly.

W 603 R Bearing operates efficiently in temperatures from -30° to 120 °C, adapting to various environments.
Its flanged design provides secure mounting, reducing misalignment risks during installation.

Application

Common Applications of W 603 R Bearing
W 603 R Bearing is widely used in small electric motors, such as those found in cooling fans or miniature appliances. Its compact size and stainless steel construction make it ideal for tight spaces where corrosion resistance is needed.

In automation systems, W 603 R Bearing provides smooth rotation for lightweight robotic arms or precision-guided mechanisms. The flanged design helps with easy mounting and alignment in delicate equipment.

For consumer electronics like printers or handheld tools, W 603 R Bearing offers reliable performance with minimal maintenance. Its high-speed capability ensures quiet operation in everyday devices.

Medical devices such as dental handpieces often utilise W 603 R Bearing due to its hygienic stainless steel materials. The open design allows for proper cleaning in sterile environments.
