FAG Current-Insulated Single Row Cylindrical Roller Bearing NU2214-E-M1-J20AA-C3

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU2214-E-M1-J20AA-C3

The FAG NU2214-E-M1-J20AA-C3 is a current-insulated cylindrical roller bearing with a 70mm bore and 125mm outer diameter, designed to handle heavy radial loads up to 185 kN. Its ceramic-coated outer ring provides insulation against electrical currents, with a breakdown voltage of up to 1000V.

The brass cage ensures smooth operation at speeds up to 3850 rpm, while the C3 radial clearance allows for thermal expansion in demanding conditions. The coating offers high electrical resistance, even in damp environments (10MΩ).

This bearing is ideal for electric motors or generators where electrical insulation is crucial. Its robust design and compliance with RoHS and REACH standards make it a reliable choice for industrial applications. Weighing 1.661kg, it balances durability with manageable size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU2214-E-M1-J20AA-C3
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 70.0 mm
  • Outside Diameter 125.0 mm
  • Width 31.0 mm
  • Net Weight 1.661 kg
  • Basic Dynamic Load Rating 185 kN
  • Basic Static Load Rating 195 kN
  • Reference Speed 3850r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

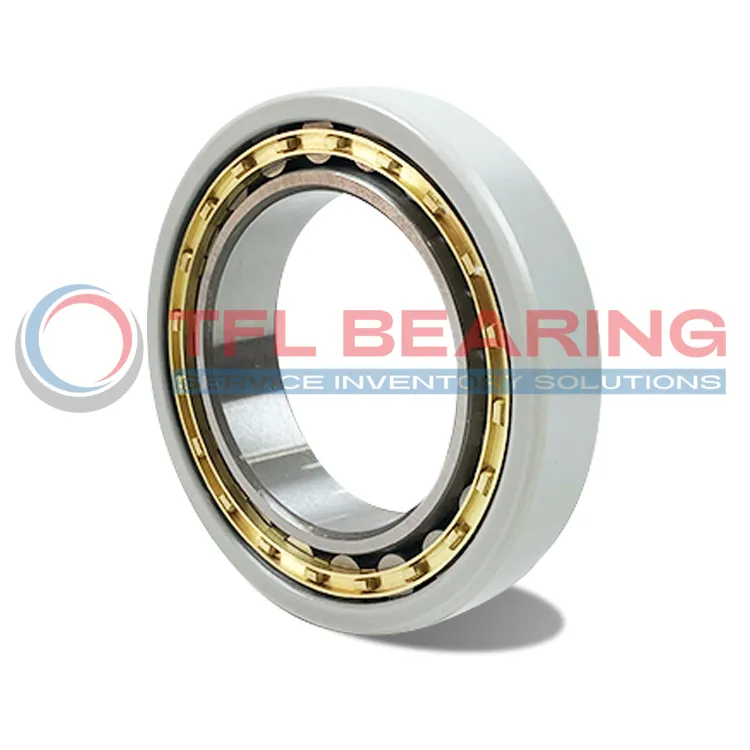

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU2214-E-M1-J20AA-C3 dimension drawing
Download DWG Download PDF

Features

What Makes NU2214-E-M1-J20AA-C3 Bearing Suitable for High-Temperature Applications?

NU2214-E-M1-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
This design ensures reliable performance in high-temperature environments, with a reference speed of 3850r/min.

The brass cage maintains stability, while the C3 radial clearance accommodates thermal expansion.
With a basic dynamic load rating of 185 kN, it handles heavy loads efficiently.

Its breakdown voltage of ≤1000v and electrical resistance of 50MΩ (dry) make it ideal for electrical applications.
The coating thickness of 200 um further enhances durability and insulation properties.

Application

Industrial Uses of NU2214-E-M1-J20AA-C3 Bearing
NU2214-E-M1-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.

What Makes NU2214-E-M1-J20AA-C3 Bearing a Preferred Choice?
In wind turbines, NU2214-E-M1-J20AA-C3 Bearing handles heavy radial loads while its ceramic coating protects against stray currents. Its C3 clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: NU2214-E-M1-J20AA-C3 Bearing
NU2214-E-M1-J20AA-C3 Bearing works well in industrial gearboxes, where its high dynamic load rating extends service life. The damp electrical resistance of 10MΩ makes it reliable in humid conditions.

Automotive vs Aerospace: Applications of NU2214-E-M1-J20AA-C3 Bearing
In automotive alternators, NU2214-E-M1-J20AA-C3 Bearing reduces electrical interference. For aerospace applications, its lightweight design and insulation properties are beneficial for avionics systems.

Perfect Fit for Automation: NU2214-E-M1-J20AA-C3 Bearing
NU2214-E-M1-J20AA-C3 Bearing is ideal for robotic arms in automated production lines. The ceramic outer ring coating ensures consistent performance without electrical disruptions.
