NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU322-E-M6-C3-SQ77

NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU322-E-M6-C3-SQ77

The NU322-E-M6-C3-SQ77 is an electrically insulated cylindrical roller bearing with a 110mm bore and 240mm outer diameter, designed to prevent electrical currents from damaging equipment. It features a durable brass cage and a special outer ring coating for insulation.

With a dynamic load rating of 530 kN and a static load rating of 540 kN, this bearing handles heavy radial loads efficiently. It operates smoothly at speeds up to 3000 RPM, making it suitable for high-performance applications.

The insulating coating provides a breakdown voltage of 1000-3000 V and an electrical resistance over 2000 MΩ, protecting against electrical erosion. Its C3 radial clearance ensures reliable performance under varying temperatures.

Ideal for electric motors, generators, or wind turbines where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for industrial use. Weighing 11.6 kg, it balances strength and practicality.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU322-E-M6-C3-SQ77
  • Product Category Electrically Insulated Single Row Cylindrical Roller Bearing
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix SQ77
  • Manufacturers NKE
  • Bore Diameter 110.0 mm
  • Outside Diameter 240.0 mm
  • Width 50.0 mm
  • Net Weight 11.6 kg
  • Basic Dynamic Load Rating 530 kN
  • Basic Static Load Rating 540 kN
  • Reference Speed 3000 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness > 0.125 mm
  • Electrical Resistance > 2,000 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

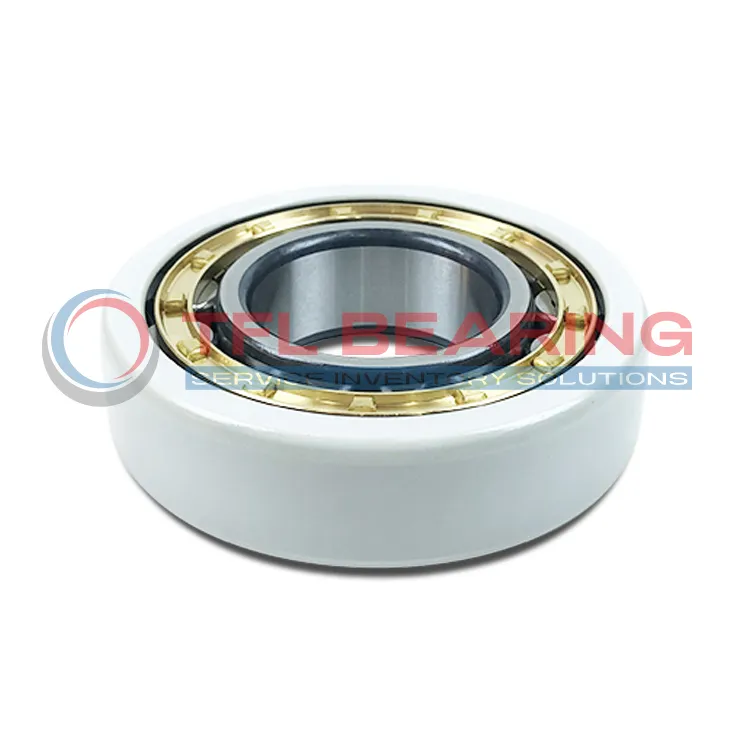

NKE Electrically Insulated Single Row Cylindrical Roller Bearing NU322-E-M6-C3-SQ77 dimension drawing
