SKF INSOCOAT Cylindrical Roller Bearings NU 324 ECM/C3VL0241

SKF INSOCOAT Cylindrical Roller Bearings NU 324 ECM/C3VL0241

The SKF INSOCOAT cylindrical roller bearing measures 120mm in bore, 260mm outside, and 55mm wide, with a sturdy brass cage. It supports dynamic loads up to 610 kN and runs smoothly at speeds to 2800 RPM.
Its outer ring features an insulating coating that resists electrical currents, preventing damage from stray voltages. This helps extend the bearing’s life in electrically noisy environments.
With a C3 radial internal clearance, it accommodates thermal expansion during operation. The insulation provides breakdown protection from 1000 to 3000 VDC and maintains high electrical resistance.
Suitable for electric motors, generators, or industrial drives where electrical insulation is needed. Compliant with RoHS and REACH standards, it weighs 14.6 kg for robust applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU 324 ECM/C3VL0241
  • Product Category INSOCOAT Cylindrical Roller Bearings
  • Insulating Coating Types Insulation coating on outer ring
  • Coating Suffix VL0241
  • Manufacturers SKF
  • Bore Diameter 120.0 mm
  • Outside Diameter 260.0 mm
  • Width 55.0 mm
  • Net Weight 14.6 kg
  • Basic Dynamic Load Rating 610.0 kN
  • Basic Static Load Rating 620.0 kN
  • Reference Speed 2800.0r/min
  • Breakdown Voltage (DC) 1000 VDC to 3000 VDC
  • Layer Thic kNess 500 µm
  • Electrical Resistance Min. 50MΩ
  • Cage Material Machined brass
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

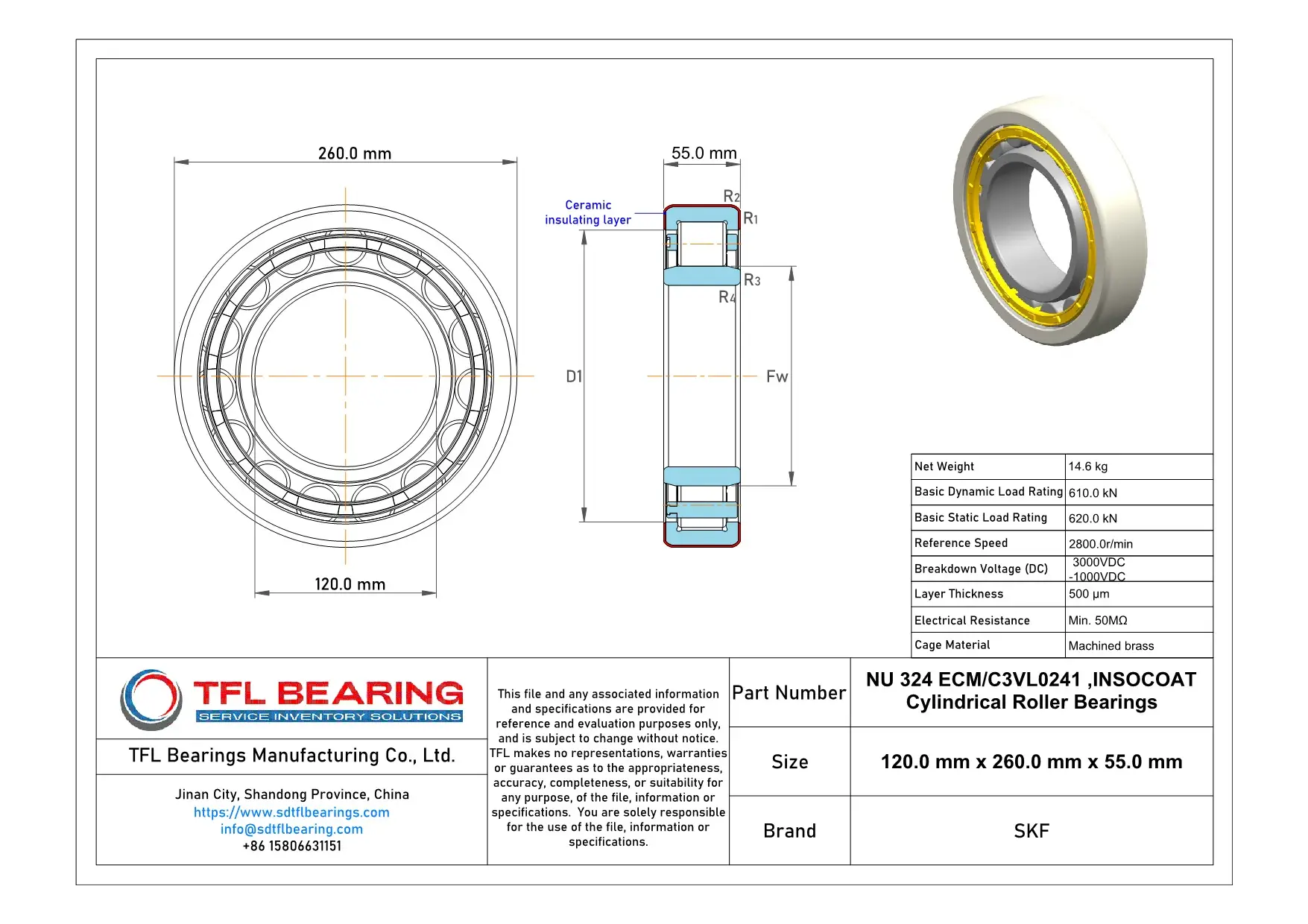

SKF INSOCOAT Cylindrical Roller Bearings NU 324 ECM/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is NU 324 ECM/C3VL0241 Bearing Engineered for Reliability?

NU 324 ECM/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical damage in demanding environments.
This coating provides breakdown voltage protection from 1000 to 3000 VDC, ensuring consistent performance where electrical currents are present.
The machined brass cage maintains proper roller alignment, reducing friction and extending service life.
With a basic dynamic load rating of 610 kN, it handles heavy radial loads while maintaining operational stability.

Application

How Does NU 324 ECM/C3VL0241 Bearing Improve Performance?
NU 324 ECM/C3VL0241 Bearing works well in industrial machinery like large pumps and conveyor systems where electrical currents can cause damage. Its insulation coating protects against electric erosion, extending service life in demanding environments.
In automotive applications, NU 324 ECM/C3VL0241 Bearing handles high radial loads in electric vehicle motors and transmission systems. The machined brass cage provides stability during rapid speed changes common in modern vehicles.
For medical imaging equipment, NU 324 ECM/C3VL0241 Bearing’s electrical insulation prevents current leakage in sensitive diagnostic machines. This feature ensures consistent performance in MRI and CT scanner mechanisms.
Within automation systems, NU 324 ECM/C3VL0241 Bearing supports robotic arm joints and precision positioning equipment. The C3 clearance accommodates thermal expansion during continuous operation cycles.
