FAG Current-Insulated Bearings 6024-J20AB-C3

FAG Current-Insulated Bearings 6024-J20AB-C3

The FAG 6024-J20AB-C3 is a current-insulated bearing with dimensions of 120mm by 180mm by 28mm, featuring a ceramic-coated outer ring. It handles dynamic loads up to 88kN and operates smoothly at speeds up to 5000 RPM.

Its insulating coating provides protection against electrical currents, with a breakdown voltage of up to 500V. The sheet metal cage ensures durability and reliable performance in demanding conditions.

This bearing is ideal for electric motors or generators where electrical insulation is needed. It’s also compliant with RoHS and REACH standards for safe use.

Weighing 2.14kg, it’s a robust choice for industrial applications requiring both mechanical strength and electrical resistance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6024-J20AB-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AB
  • Manufacturers FAG
  • Bore Diameter 120.0 mm
  • Outside Diameter 180.0 mm
  • Width 28.0 mm
  • Net Weight 2.14 kg
  • Basic Dynamic Load Rating 88.0 kN
  • Basic Static Load Rating 77.0 kN
  • Reference Speed 5000 r/min
  • Breakdown Voltage (DC) ≤500 V
  • Layer Thickness 100 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Sheet metal
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

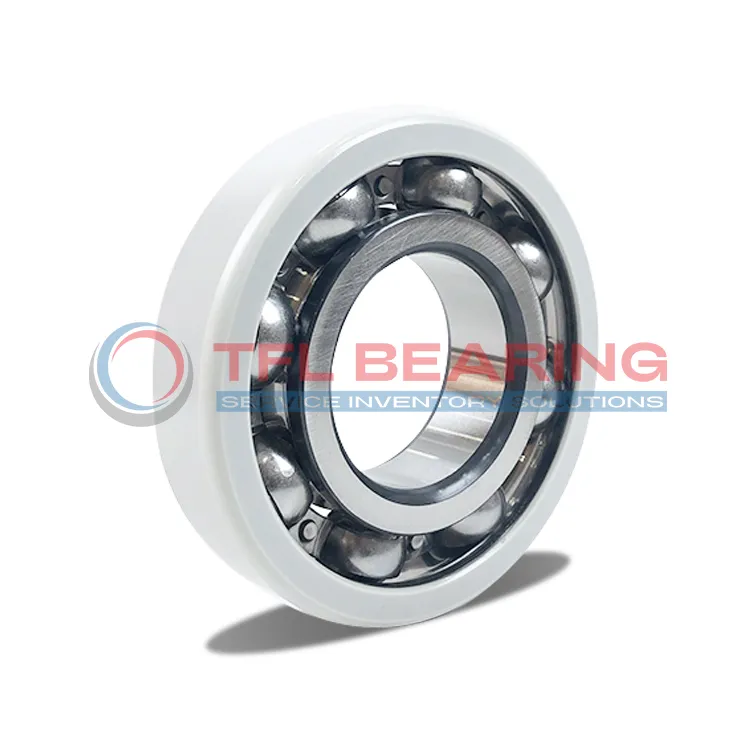

FAG Current-Insulated Bearings 6024-J20AB-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6024-J20AB-C3 Bearing Engineered for Reliability?

6024-J20AB-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.

With a basic dynamic load rating of 88.0 kN, it handles heavy loads while maintaining smooth operation.
The C3 radial internal clearance ensures optimal performance under varying thermal conditions.

6024-J20AB-C3 Bearing’s sheet metal cage enhances durability and keeps components aligned.
Its reference speed of 5000 r/min makes it suitable for high-speed applications.

The insulating coating offers a breakdown voltage of ≤500 V, ensuring safety in electrical environments.
6024-J20AB-C3 Bearing is compliant with ROHS and REACH, meeting environmental standards.

Application

Industrial Uses of 6024-J20AB-C3 Bearing
The 6024-J20AB-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. Its ceramic-coated outer ring ensures reliable performance in environments with stray currents.

What Makes 6024-J20AB-C3 Bearing a Preferred Choice?
With a high dynamic load rating of 88 kN, 6024-J20AB-C3 Bearing handles heavy loads in industrial gearboxes and pumps. The C3 clearance allows for thermal expansion, making it suitable for high-speed applications up to 5000 r/min.

Built for Heavy-Duty Use: 6024-J20AB-C3 Bearing
In wind turbines, 6024-J20AB-C3 Bearing’s insulating coating protects against electrical erosion, extending service life. The sheet metal cage provides stability and reduces friction during operation.

Automotive vs Aerospace: Applications of 6024-J20AB-C3 Bearing
In automotive alternators, 6024-J20AB-C3 Bearing prevents electrical arcing, while in aerospace systems, its lightweight design and high-speed capability are valued. The 100 µm coating thickness ensures consistent insulation.

Perfect Fit for Automation: 6024-J20AB-C3 Bearing
The 6024-J20AB-C3 Bearing is ideal for robotic arms and CNC machines, where electrical insulation and precision are critical. Its damp resistance of 10MΩ ensures reliability even in humid conditions.
