FAG Current-Insulated Bearings 6324-M-J20C-C3

FAG Current-Insulated Bearings 6324-M-J20C-C3

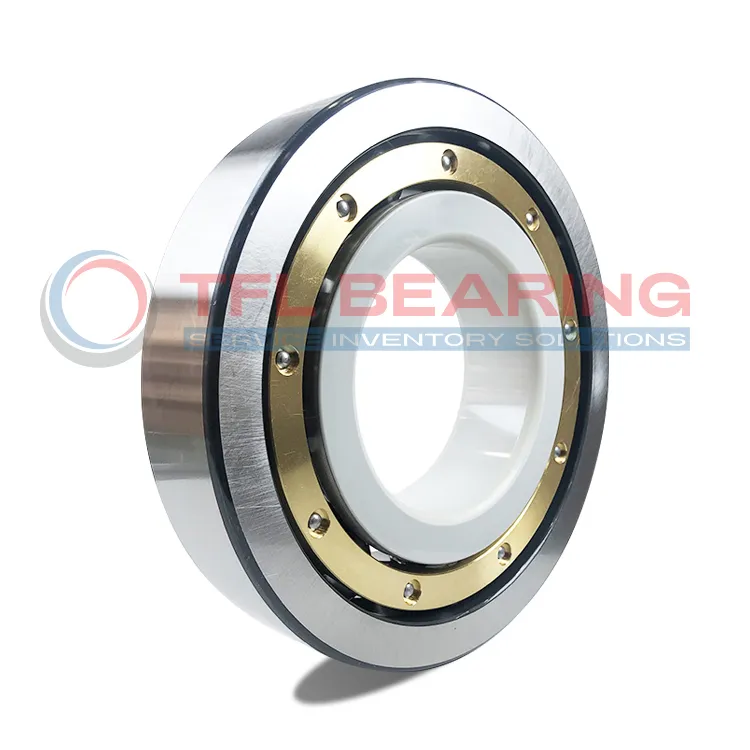

The FAG 6324-M-J20C-C3 is a current-insulated bearing with a 120mm bore and 260mm outer diameter, designed to handle electrical currents. Its inner ring features a ceramic coating for insulation, preventing damage from stray currents.

With a dynamic load rating of 225kN, it supports heavy loads while maintaining smooth rotation. The brass cage ensures durability, and the C3 clearance allows for thermal expansion in demanding conditions.

This bearing is ideal for electric motors or generators where electrical insulation is crucial. It operates efficiently at speeds up to 4550 RPM and withstands voltages up to 3000V.

Weighing 14.78kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for modern applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6324-M-J20C-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Inner ring ceramic coated
  • Coating Suffix J20C
  • Manufacturers FAG
  • Bore Diameter 120.0 mm
  • Outside Diameter 260.0 mm
  • Width 55.0 mm
  • Net Weight 14.78 kg
  • Basic Dynamic Load Rating 225.0 kN
  • Basic Static Load Rating 195.0 kN
  • Reference Speed 4550 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 200 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

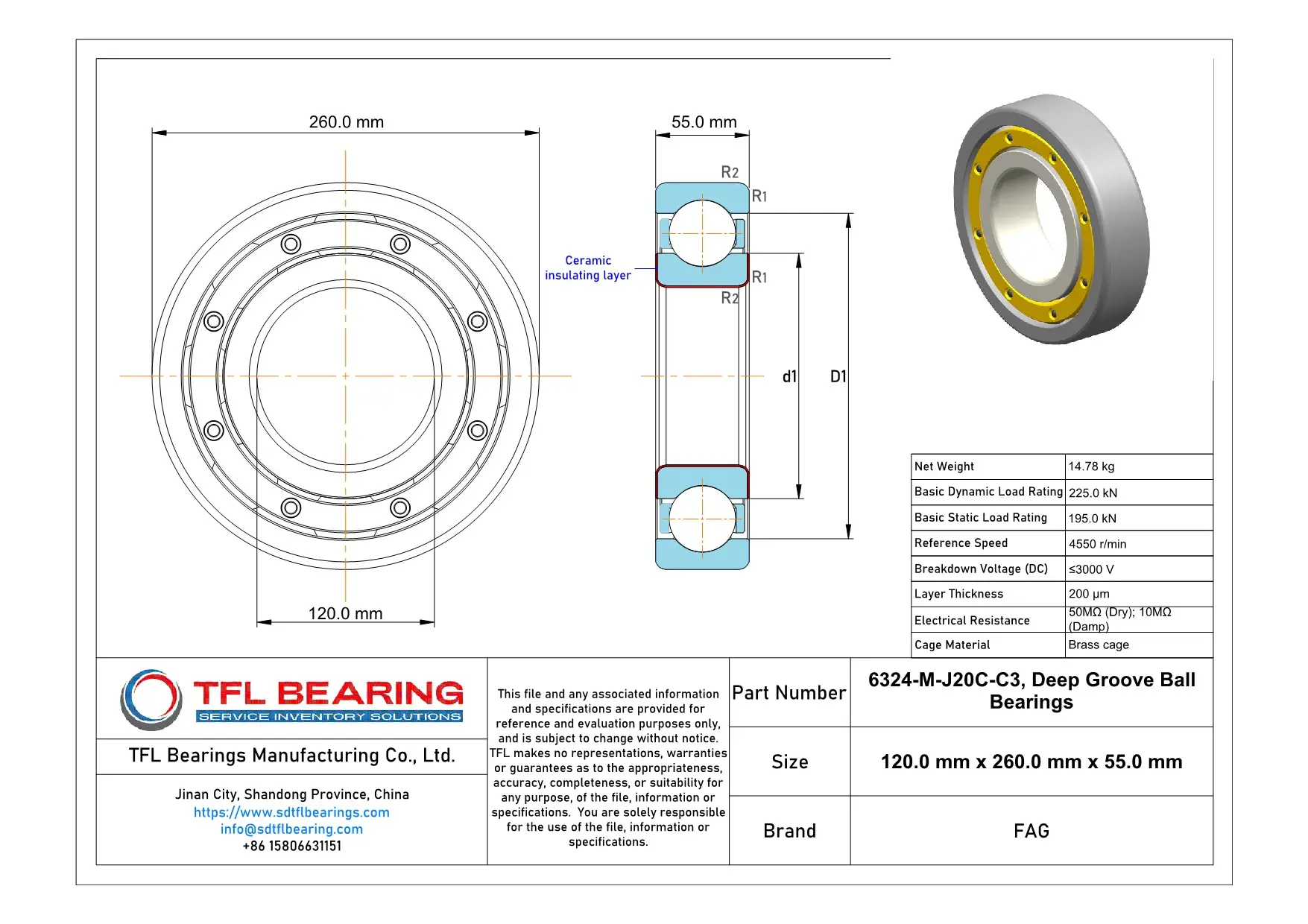

FAG Current-Insulated Bearings 6324-M-J20C-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6324-M-J20C-C3 Bearing Engineered for Reliability?

6324-M-J20C-C3 Bearing features an inner ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
The brass cage ensures smooth operation and reduces friction, even at high speeds of 4550 r/min.

With a basic dynamic load rating of 225.0 kN, 6324-M-J20C-C3 Bearing handles heavy loads reliably.
Its C3 radial internal clearance allows for thermal expansion, making it suitable for various operating conditions.

The ceramic coating maintains high electrical resistance, even in damp environments, ensuring consistent performance.
This design makes 6324-M-J20C-C3 Bearing ideal for applications where electrical insulation is crucial.

Application

Key Fields for 6324-M-J20C-C3 Bearing
6324-M-J20C-C3 Bearing is commonly used in industrial motors and generators, where its current-insulating properties prevent electrical damage. The ceramic coating on the inner ring ensures reliable performance in high-voltage environments.

In wind turbine applications, 6324-M-J20C-C3 Bearing handles both radial and axial loads while resisting electrical currents. Its brass cage and C3 clearance make it suitable for variable speed conditions.

For railway traction systems, 6324-M-J20C-C3 Bearing’s high breakdown voltage protects against stray currents. The robust design also withstands the vibrations and shocks common in rail environments.

In mining equipment, 6324-M-J20C-C3 Bearing’s durability and insulation make it ideal for conveyor drives and crushers. The coating maintains performance even in dusty or damp conditions.

For industrial pumps, 6324-M-J20C-C3 Bearing offers long service life with minimal maintenance. The C3 clearance accommodates thermal expansion during continuous operation.
