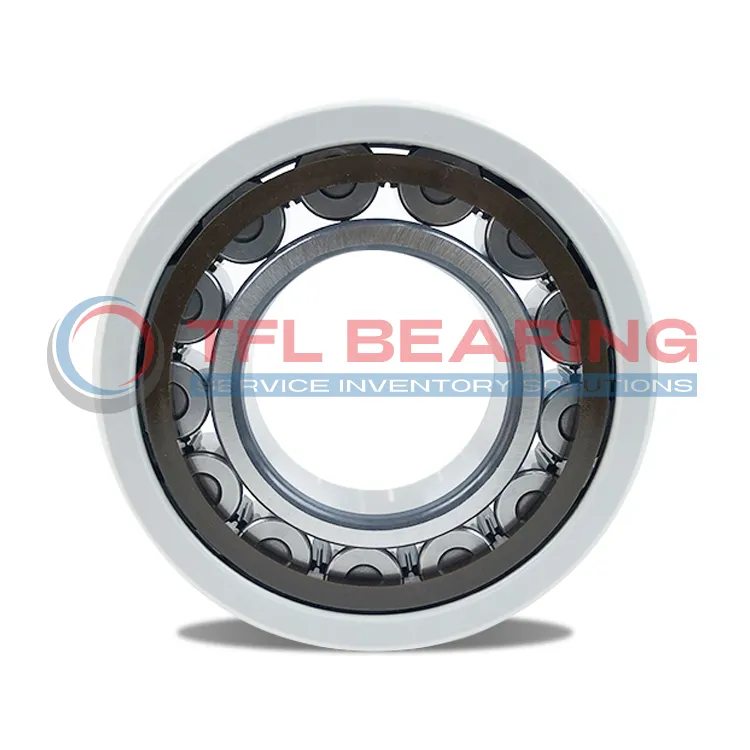

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-XL-TVP2-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-XL-TVP2-F1-J20AA-C4

The NJ320-E-XL-TVP2-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 100mm bore and 215mm outer diameter, designed to handle high loads and speeds. Its outer ring features a ceramic coating for electrical insulation, preventing damage from stray currents.

With a dynamic load rating of 450 kN and a static load rating of 425 kN, it’s built for demanding applications. The plastic cage ensures smooth operation at speeds up to 3350 RPM.

The insulating coating provides a breakdown voltage of up to 1000V, making it ideal for electric motors or generators. Its C4 radial clearance allows for thermal expansion in high-temperature environments.

Weighing 7.66 kg, this FAG bearing is robust yet efficient. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial machinery where electrical insulation is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NJ320-E-XL-TVP2-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 100.0 mm
  • Outside Diameter 215.0 mm
  • Width 47.0 mm
  • Net Weight 7.66 kg
  • Basic Dynamic Load Rating 450 kN
  • Basic Static Load Rating 425 kN
  • Reference Speed 3350r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material P - Plastic Molded Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

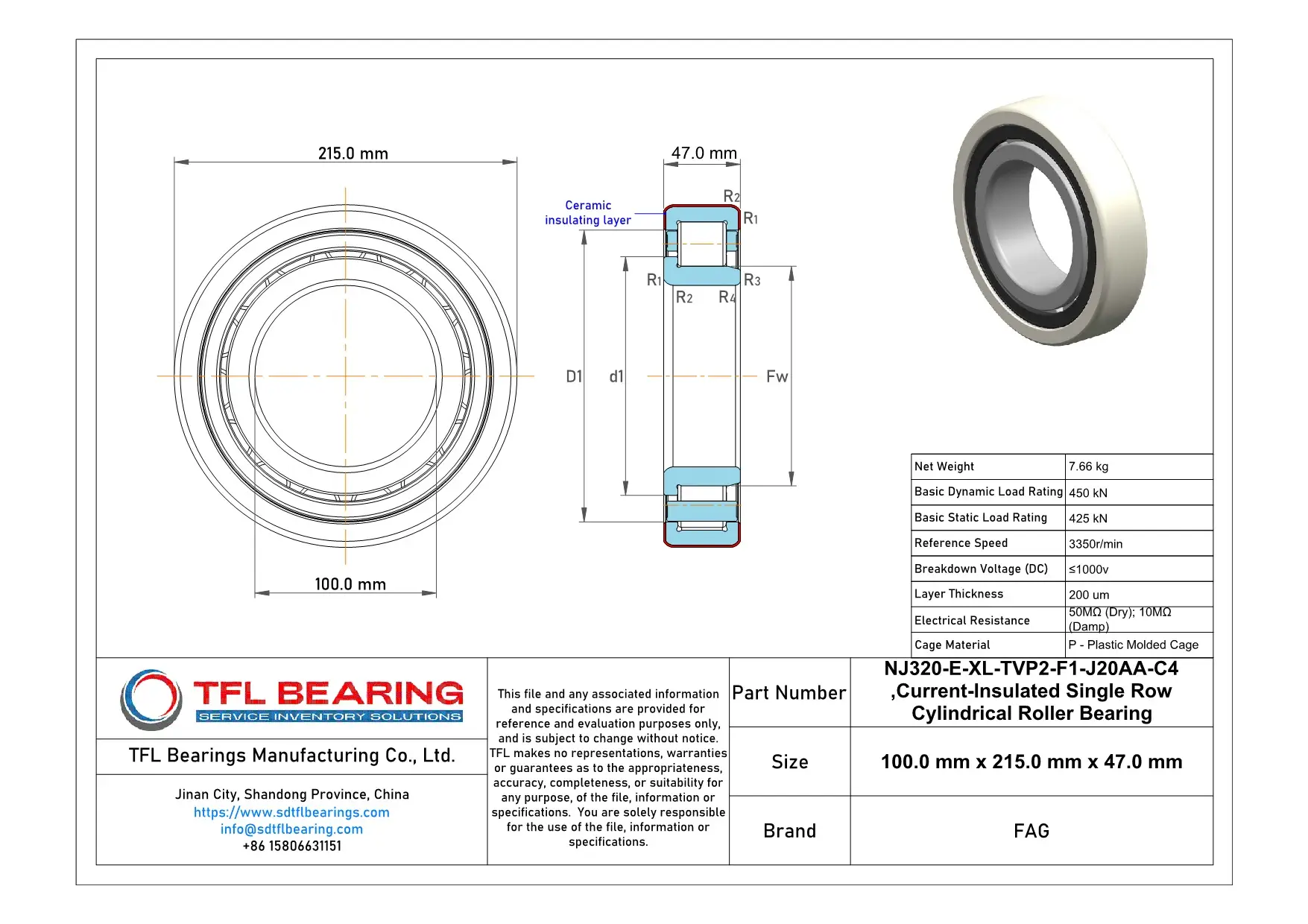

FAG Current-Insulated Single Row Cylindrical Roller Bearing NJ320-E-XL-TVP2-F1-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ320-E-XL-TVP2-F1-J20AA-C4 Bearing

NJ320-E-XL-TVP2-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, protecting machinery from electrical damage.

With a basic dynamic load rating of 450 kN, it handles heavy radial loads efficiently.
The plastic molded cage ensures smooth operation and reduces friction.

The bearing operates at reference speeds up to 3,350 rpm, making it suitable for high-speed applications.
Its C4 radial internal clearance allows for thermal expansion in demanding conditions.

NJ320-E-XL-TVP2-F1-J20AA-C4 Bearing’s breakdown voltage of ≤1000V ensures reliable performance in electrically active environments.
The coating maintains high resistance even in damp conditions, with 10MΩ electrical resistance.

Designed for durability, this bearing is ROHS and REACH compliant, meeting environmental standards.
Its dimensions (100.0 mm x 215.0 mm x 47.0 mm) make it ideal for various industrial applications.
