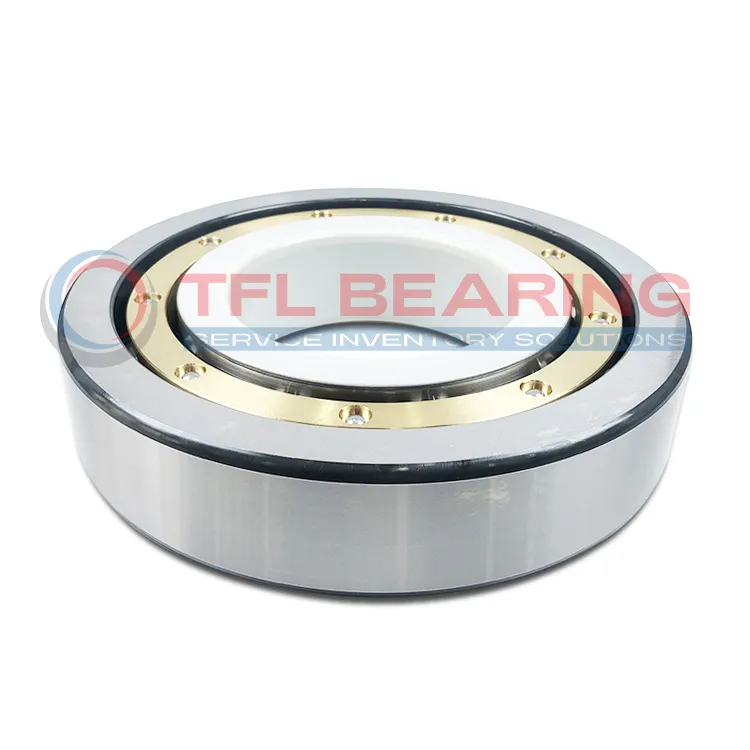

Electrically Insulated Ball Bearings 6232M/C3VL2071

Electrically Insulated Ball Bearings 6232M/C3VL2071

The 6232M/C3VL2071 is an electrically insulated ball bearing with a 160mm bore and 290mm outer diameter, designed to prevent electrical currents from passing through. It features an inner ring insulation coating with a breakdown voltage of 1000-3000V, making it safe for use in electric motors or generators.

With a dynamic load rating of 212kN and a static load rating of 203kN, this bearing handles heavy loads while maintaining smooth operation. Its brass cage ensures durability, and the C3 radial clearance allows for thermal expansion in high-speed applications.

The insulation layer, 100-500µm thick, provides electrical resistance of 50-200MΩ, effectively reducing damage from stray currents. It spins efficiently at speeds up to 4150 RPM.

Ideal for industrial machinery, wind turbines, or any equipment where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments. Weighing 14.5kg, it’s robust yet manageable for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6232M/C3VL2071
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL2071
  • Insulating Coating Types Inner ring insulation coating
  • Manufacturers TFL
  • Bore Diameter 160.0 mm
  • Outside Diameter 290.0 mm
  • Width 48.0 mm
  • Net Weight 14.5 kg
  • Basic Dynamic Load Rating 212.0 kN
  • Basic Static Load Rating 203.0 kN
  • Reference Speed 4150 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

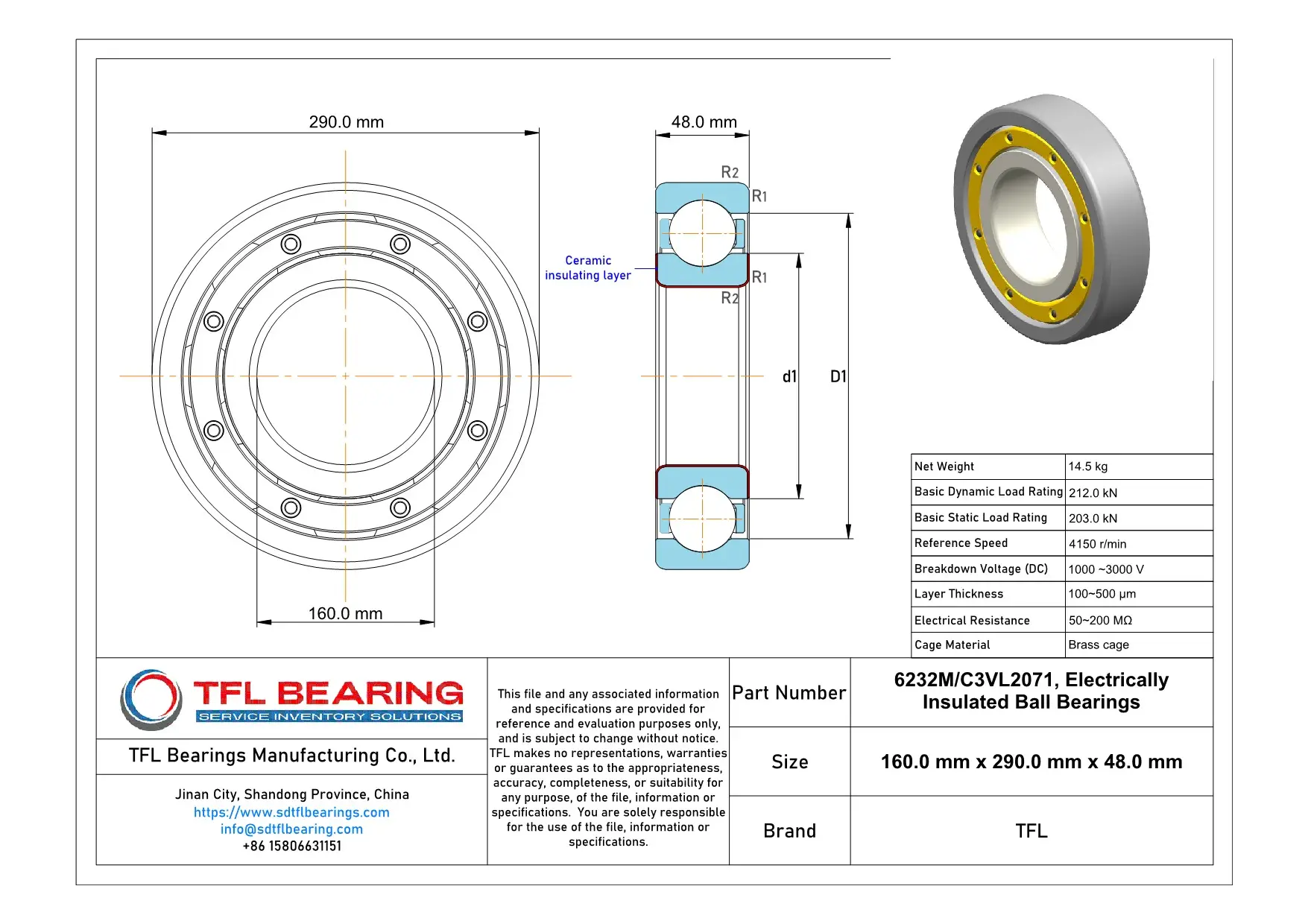

Electrically Insulated Ball Bearings 6232M/C3VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6232M/C3VL2071 Bearing Engineered for Reliability?

6232M/C3VL2071 Bearing features an inner ring insulation coating, preventing electrical current damage for safer operation.
Its breakdown voltage ranges from 1000 to 3000 V, making it suitable for high-voltage environments.

The brass cage ensures smooth rotation and reduces friction, enhancing durability.
With a basic dynamic load rating of 212.0 kN, it handles heavy loads efficiently.

6232M/C3VL2071 Bearing operates at speeds up to 4150 r/min, balancing performance and longevity.
Its C3 radial internal clearance allows for thermal expansion, maintaining stability under varying conditions.

Application

Industrial Uses of 6232M/C3VL2071 Bearing
6232M/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from damaging the bearing. The brass cage ensures smooth operation even under high speeds.

Where Is 6232M/C3VL2071 Bearing Used?
In wind turbines, 6232M/C3VL2071 Bearing handles both radial and axial loads while resisting electrical arcing. Its C3 clearance allows for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 6232M/C3VL2071 Bearing
6232M/C3VL2071 Bearing is a reliable choice for industrial pumps, where its high dynamic load rating ensures long service life. The insulating layer also protects against stray currents in wet conditions.

Automotive vs Aerospace: Applications of 6232M/C3VL2071 Bearing
In hybrid vehicles, 6232M/C3VL2071 Bearing supports electric drivetrains by preventing current leakage. For aerospace, its lightweight design and insulation make it suitable for auxiliary power units.

Practical Applications of 6232M/C3VL2071 Bearing
6232M/C3VL2071 Bearing is ideal for conveyor systems in mining, where its durability and electrical insulation reduce downtime. The high breakdown voltage ensures safety in high-voltage environments.
