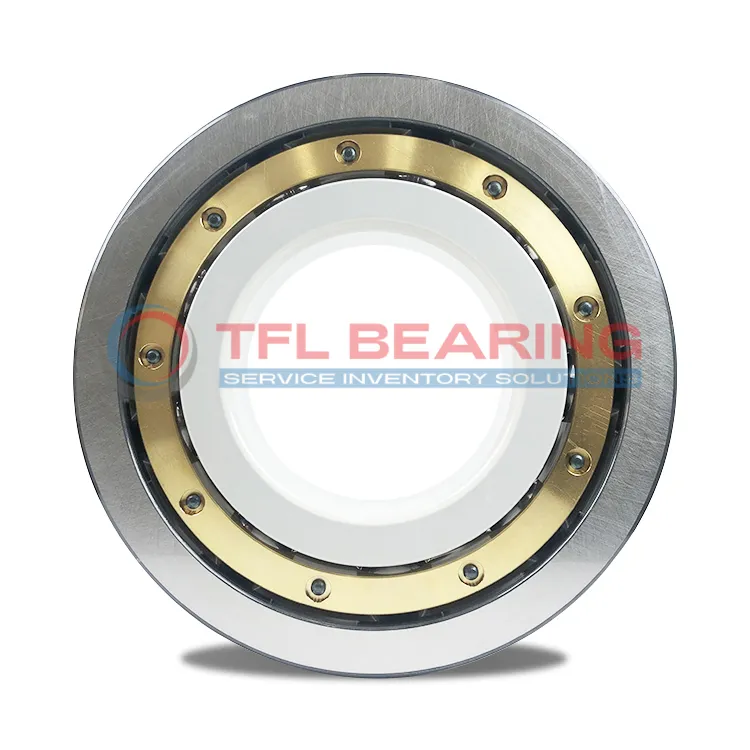

SKF INSOCOAT Bearings 6232M/C4VL2071

SKF INSOCOAT Bearings 6232M/C4VL2071

The SKF INSOCOAT 6232M/C4VL2071 is a robust bearing with a 160mm bore and 290mm outer diameter, designed for heavy-duty applications. Its inner ring features a 500µm insulating coating, providing protection against electrical currents.

With a dynamic load rating of 212kN and a static load rating of 203kN, it handles high loads efficiently. The brass cage ensures smooth operation at speeds up to 4150 RPM.

The C4 radial internal clearance allows for thermal expansion, making it suitable for variable temperature conditions. The insulation coating offers a breakdown voltage of up to 3000V and an electrical resistance of 200MΩ.

Ideal for electric motors or generators, this 14.5kg bearing is RoHS compliant and built for reliability in demanding environments. Its design prevents electrical arcing, extending the lifespan of connected equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6232M/C4VL2071
  • Product Category INSOCOAT Bearings
  • Insulating Coating Types Inner ring insulation coating
  • Coating Suffix VL2071
  • Manufacturers SKF
  • Bore Diameter 160.0 mm
  • Outside Diameter 290.0 mm
  • Width 48.0 mm
  • Net Weight 14.5 kg
  • Basic Dynamic Load Rating 212.0 kN
  • Basic Static Load Rating 203.0 kN
  • Reference Speed 4150 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 500 µm
  • Electrical Resistance 200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

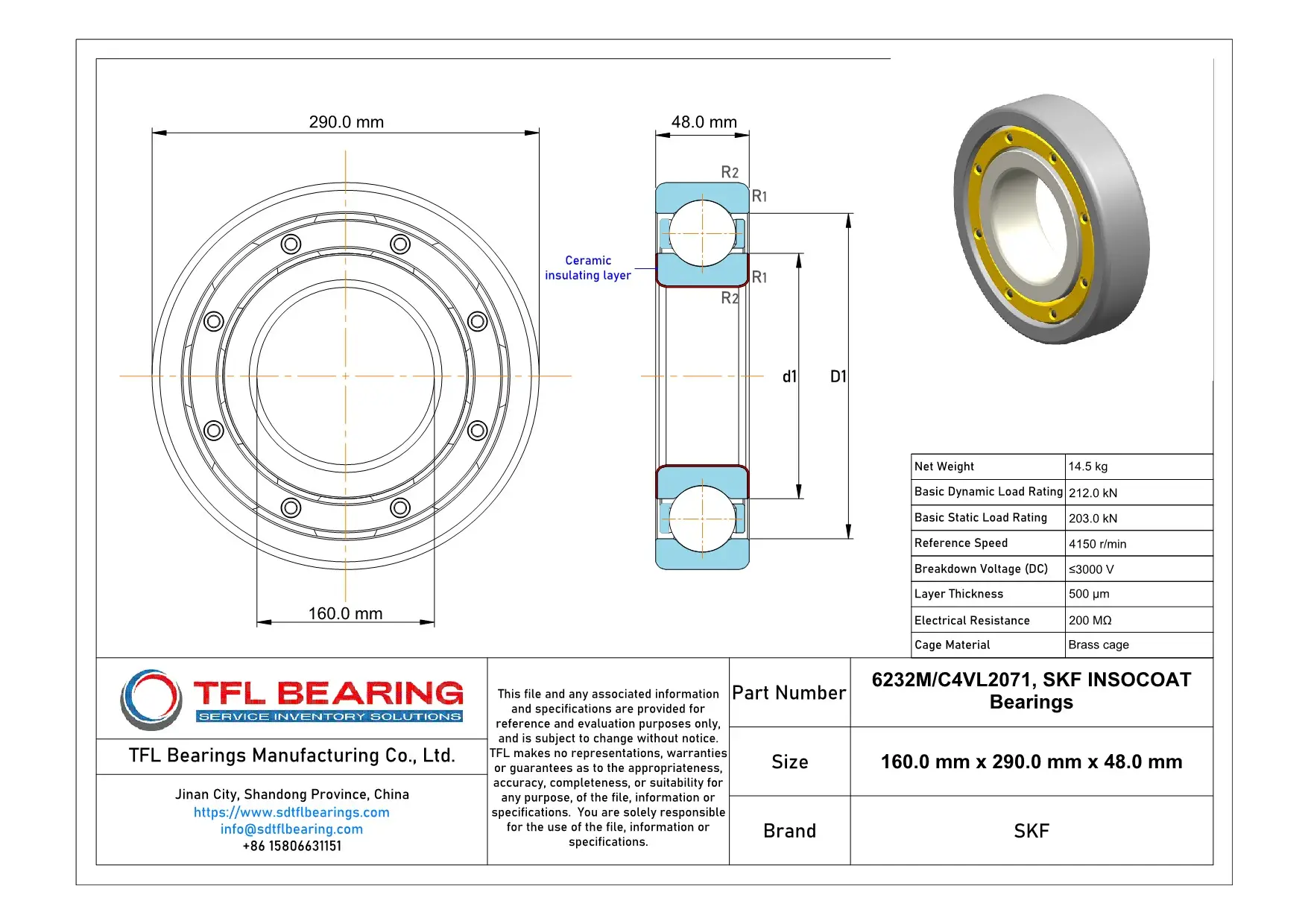

SKF INSOCOAT Bearings 6232M/C4VL2071 dimension drawing
Download DWG Download PDF

Features

How Is 6232M/C4VL2071 Bearing Engineered for Reliability?

6232M/C4VL2071 Bearing features an inner ring insulation coating, providing protection against electrical currents.
This design ensures reliable operation in environments with electrical interference.

The brass cage enhances durability and maintains smooth performance under high loads.
With a basic dynamic load rating of 212.0 kN, it handles demanding applications effortlessly.

6232M/C4VL2071 Bearing’s C4 radial internal clearance allows for thermal expansion in high-speed operations.
Its reference speed of 4150 r/min ensures efficient performance in various conditions.

The coating offers a breakdown voltage of ≤3000 V, safeguarding against electrical damage.
This makes 6232M/C4VL2071 Bearing ideal for industrial and heavy-duty applications.

Application

Industrial Uses of 6232M/C4VL2071 Bearing
6232M/C4VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high-speed conditions.

Where Is 6232M/C4VL2071 Bearing Used?
In wind turbines, 6232M/C4VL2071 Bearing handles high dynamic loads while its insulation protects against stray currents. The C4 clearance makes it suitable for thermal expansion in demanding environments.

Built for Heavy-Duty Use: 6232M/C4VL2071 Bearing
6232M/C4VL2071 Bearing excels in industrial pumps, where its high breakdown voltage ensures reliability. The 500 µm coating thickness provides long-lasting insulation.

Medical vs Industrial: Where 6232M/C4VL2071 Bearing Excels
6232M/C4VL2071 Bearing is ideal for MRI machines due to its non-magnetic properties. In contrast, industrial applications benefit from its high load capacity and electrical insulation.

Automotive vs Aerospace: Applications of 6232M/C4VL2071 Bearing
6232M/C4VL2071 Bearing supports hybrid vehicle drivetrains with its insulation against electric currents. In aerospace, it’s used in auxiliary power units for its reliability and precision.
