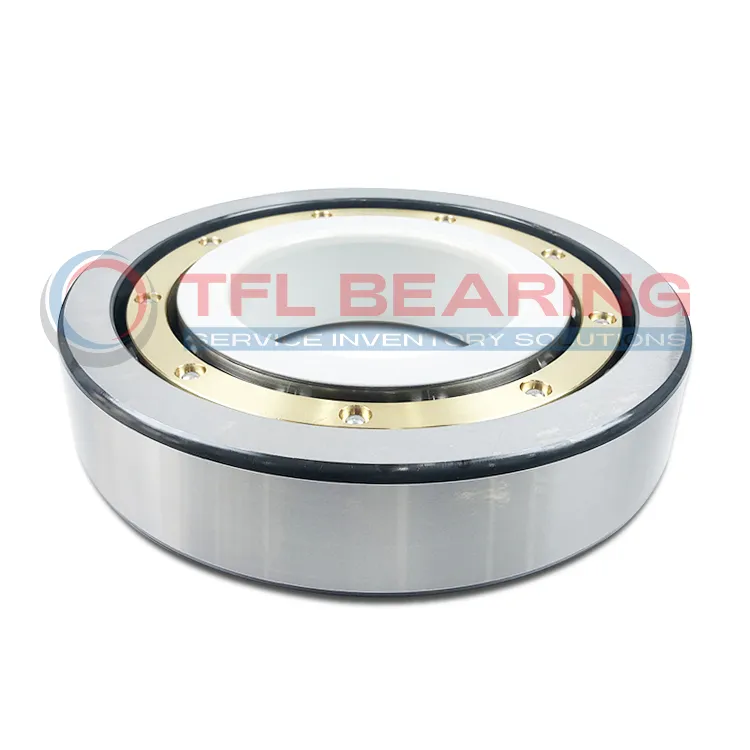

FAG Current-Insulated Bearings 6034-M-J20C-C3

FAG Current-Insulated Bearings 6034-M-J20C-C3

The FAG 6034-M-J20C-C3 is a current-insulated bearing with a 170mm bore and 260mm outer diameter, designed to prevent electrical damage. Its inner ring features a ceramic coating, providing insulation up to 3000V.

With a dynamic load rating of 179kN and a static load rating of 172kN, it handles heavy loads while spinning smoothly at speeds up to 4400 RPM. The brass cage ensures durability and reduces friction.

The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments. It’s ideal for electric motors or generators where electrical currents could cause damage.

Weighing 8.2kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6034-M-J20C-C3
  • Product Category Current-Insulated Bearings
  • Insulating Coating Types Inner ring ceramic coated
  • Coating Suffix J20C
  • Manufacturers FAG
  • Bore Diameter 170.0 mm
  • Outside Diameter 260.0 mm
  • Width 42.0 mm
  • Net Weight 8.2 kg
  • Basic Dynamic Load Rating 179.0 kN
  • Basic Static Load Rating 172.0 kN
  • Reference Speed 4400 r/min
  • Breakdown Voltage (DC) ≤3000 V
  • Layer Thickness 200 µm
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

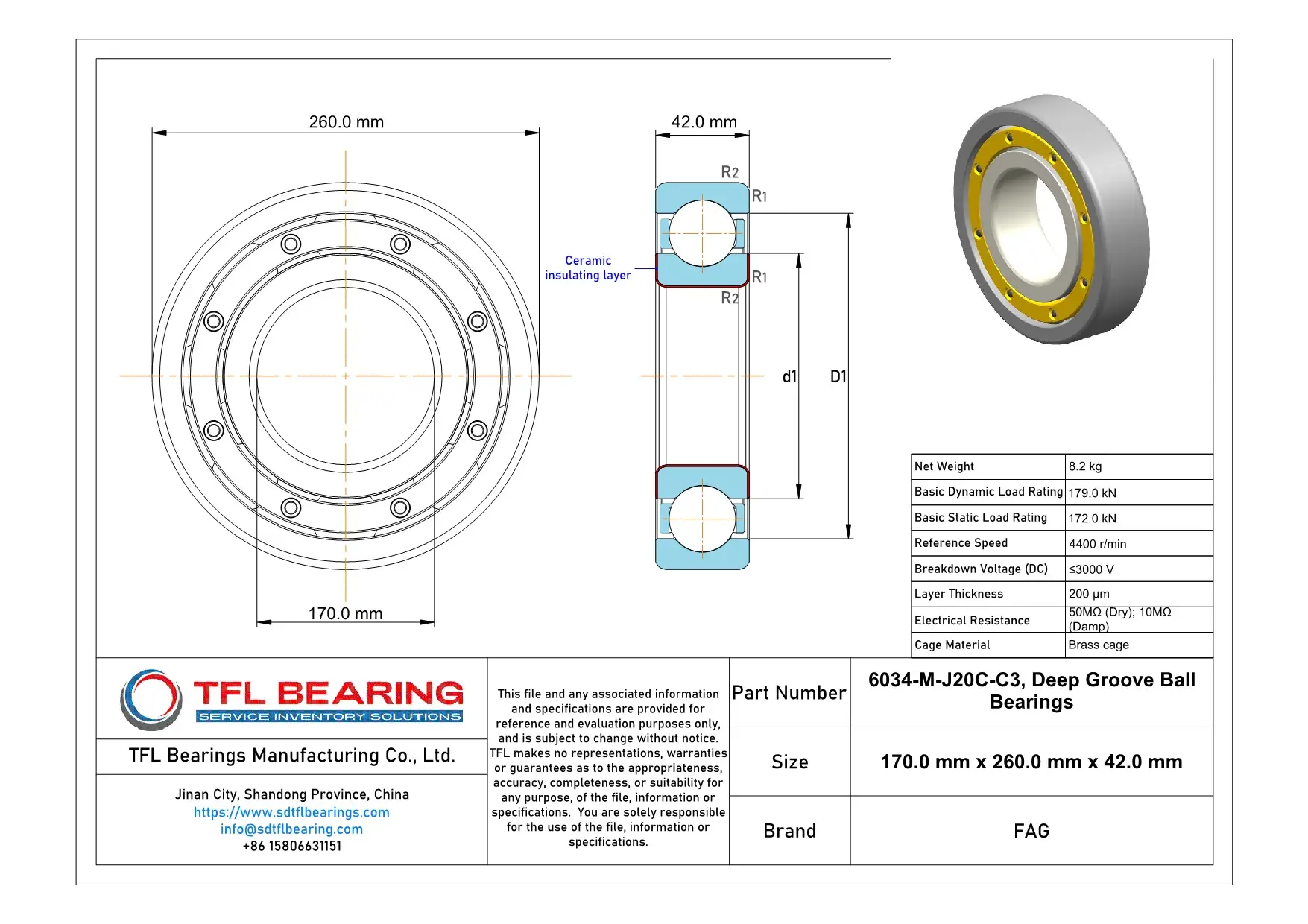

FAG Current-Insulated Bearings 6034-M-J20C-C3 dimension drawing
Download DWG Download PDF

Features

How Is 6034-M-J20C-C3 Bearing Engineered for Reliability?

6034-M-J20C-C3 Bearing features an inner ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.

The brass cage ensures smooth operation and durability under high-speed conditions.
With a reference speed of 4400 r/min, it maintains performance in demanding applications.

Its basic dynamic load rating of 179.0 kN makes it suitable for heavy-duty use.
The C3 radial internal clearance allows for thermal expansion, enhancing reliability.

The insulating coating offers a breakdown voltage of ≤3000 V, ensuring safety.
6034-M-J20C-C3 Bearing is ideal for applications requiring both mechanical and electrical reliability.

Application

Industrial Uses of 6034-M-J20C-C3 Bearing
6034-M-J20C-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the inner ring ensures reliable performance in high-voltage environments.

What Makes 6034-M-J20C-C3 Bearing a Preferred Choice?
In wind turbines, 6034-M-J20C-C3 Bearing handles both radial and axial loads while resisting electrical erosion. Its brass cage adds durability, making it suitable for long-term operation in harsh conditions.

Perfect Fit for Automation: 6034-M-J20C-C3 Bearing
For robotic systems, 6034-M-J20C-C3 Bearing offers smooth rotation and electrical insulation, which is essential for precision movements. The C3 clearance allows for thermal expansion in high-speed applications.

Medical vs Industrial: Where 6034-M-J20C-C3 Bearing Excels
In medical imaging devices, 6034-M-J20C-C3 Bearing’s insulation properties ensure safe operation near sensitive electronics. Meanwhile, industrial pumps benefit from its ability to withstand electrical and mechanical stresses.

Key Fields for 6034-M-J20C-C3 Bearing
6034-M-J20C-C3 Bearing is ideal for railway traction motors, where electrical insulation and high load capacity are critical. Its robust design ensures consistent performance even under heavy vibration and temperature fluctuations.
