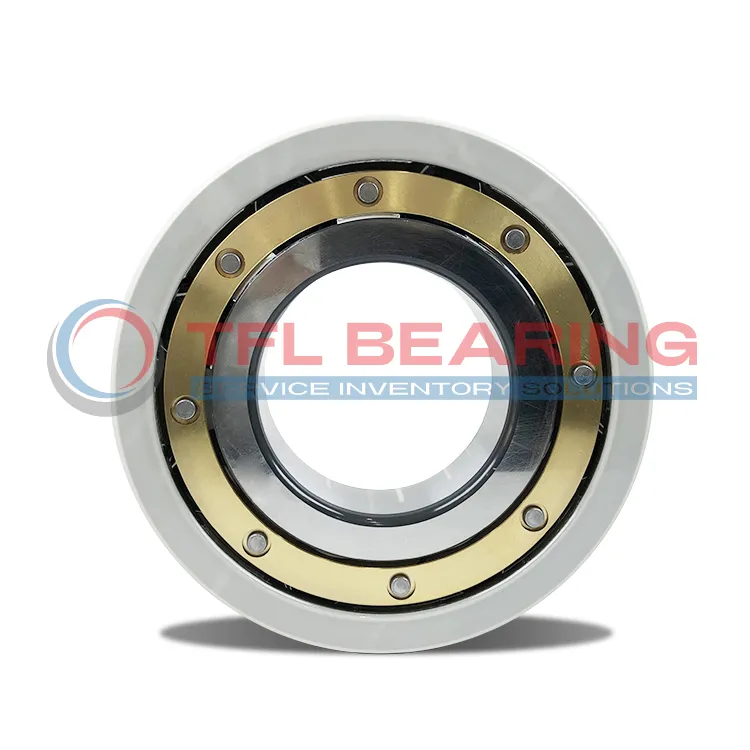

Electrically Insulated Ball Bearings 6216M/C3VL0241

Electrically Insulated Ball Bearings 6216M/C3VL0241

The 6216M/C3VL0241 is an electrically insulated ball bearing with an 80mm bore and 140mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that resists voltages up to 3000V.

This bearing handles dynamic loads up to 72.8 kN and spins smoothly at speeds up to 9500 RPM. The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions.

The insulation layer, 100-500µm thick, provides electrical resistance of 50-200 MΩ, making it ideal for electric motors or generators. It’s also lightweight at just 1.71kg, despite its robust construction.

Compliant with RoHS and REACH standards, this bearing is a reliable choice for applications where electrical insulation is crucial, such as wind turbines or industrial machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model 6216M/C3VL0241
  • Product Category Electrically Insulated Ball Bearings
  • Coating Suffix VL0241
  • Insulating Coating Types Insulation coating on outer ring
  • Manufacturers TFL
  • Bore Diameter 80.0 mm
  • Outside Diameter 140.0 mm
  • Width 26.0 mm
  • Net Weight 1.71 kg
  • Basic Dynamic Load Rating 72.8 kN
  • Basic Static Load Rating 55.0 kN
  • Reference Speed 9500.0 r/min
  • Breakdown Voltage (DC) 1000 ~3000 V
  • Layer Thickness 100~500 µm
  • Electrical Resistance 50~200 MΩ
  • Cage Material Brass cage
  • Radial Internal Clearance C3
  • ROHS Compliant
  • REACH Compliant

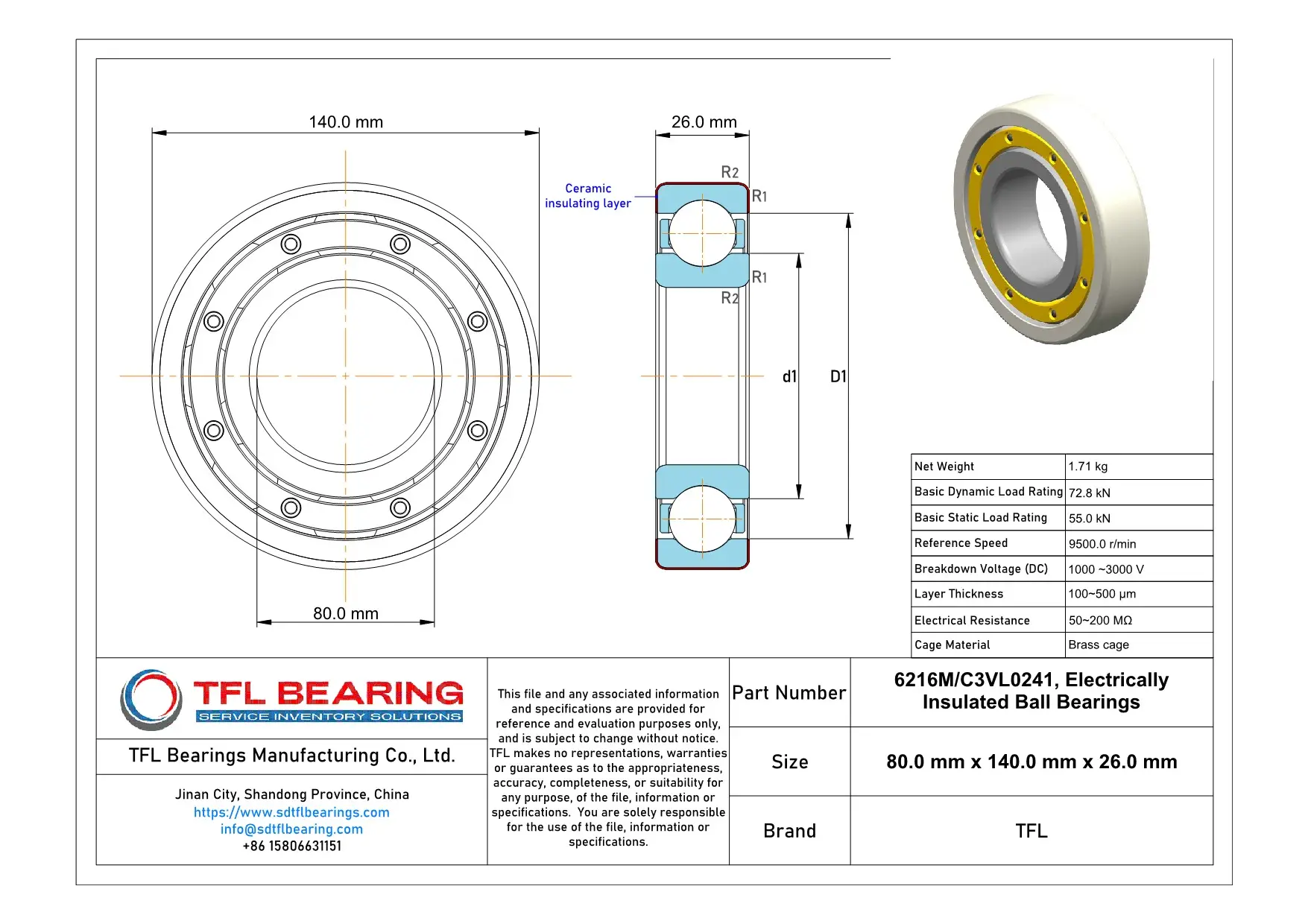

Electrically Insulated Ball Bearings 6216M/C3VL0241 dimension drawing
Download DWG Download PDF

Features

How Is 6216M/C3VL0241 Bearing Engineered for Reliability?

6216M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical current damage.
Its breakdown voltage ranges from 1000 to 3000 V, making it suitable for electric motor applications.

The brass cage ensures smooth operation and reduces friction, even at high speeds up to 9500 r/min.
With a basic dynamic load rating of 72.8 kN, it handles heavy loads reliably.

6216M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion in various operating conditions.
The coating thickness of 100~500 µm provides consistent electrical resistance between 50~200 MΩ.

This bearing is ROHS and REACH compliant, meeting international environmental standards.
Its durable construction ensures long service life in demanding electrical applications.

Application

Industrial Uses of 6216M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage ensures smooth rotation even under high-speed conditions.

What Makes 6216M/C3VL0241 Bearing a Preferred Choice?
Its ability to handle dynamic loads up to 72.8 kN makes it suitable for industrial fans and pumps. The C3 clearance allows for thermal expansion in demanding environments.

Perfect Fit for Automation: 6216M/C3VL0241 Bearing
In robotic systems, 6216M/C3VL0241 Bearing’s insulation properties protect sensitive electronics from stray currents. The 140 mm outer diameter provides stability for precise movements.

Medical vs Industrial: Where 6216M/C3VL0241 Bearing Excels
While it’s effective in MRI machines due to its non-conductive coating, this bearing truly shines in factory automation equipment. The 26 mm width offers a compact solution for space-constrained designs.

How Does 6216M/C3VL0241 Bearing Support High-Speed Operations?
With a reference speed of 9500 r/min, it’s ideal for spindle applications in CNC machinery. The breakdown voltage range of 1000-3000V adds reliability in variable frequency drive systems.
