FAG Current-Insulated Single Row Cylindrical Roller Bearing NU214-E-M1-F1-J20AA-C4

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU214-E-M1-F1-J20AA-C4

The FAG NU214-E-M1-F1-J20AA-C4 is a current-insulated cylindrical roller bearing with a 70mm bore and 125mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating (J20AA) to prevent current damage, making it ideal for electric motors or generators.

With a dynamic load rating of 141 kN and a static load rating of 138 kN, it supports heavy radial loads while maintaining smooth operation. The brass cage ensures durability, and the C4 radial clearance allows for thermal expansion in demanding conditions.

This bearing can reach speeds up to 4650 rpm and withstand breakdown voltages up to 1000V. Its insulating layer (200µm) provides high electrical resistance (50MΩ dry, 10MΩ damp), reducing the risk of electrical arcing.

Weighing 1.29kg, it’s a robust choice for industrial applications where electrical insulation is critical. Compliant with RoHS and REACH standards, it’s a reliable option for machinery in harsh environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Model NU214-E-M1-F1-J20AA-C4
  • Product Category Current-Insulated Cylindrical Roller Bearing Single Row
  • Insulating Coating Types Outer ring ceramic coated
  • Coating Suffix J20AA
  • Manufacturers FAG
  • Bore Diameter 70.0 mm
  • Outside Diameter 125.0 mm
  • Width 24.0 mm
  • Net Weight 1.29 kg
  • Basic Dynamic Load Rating 141 kN
  • Basic Static Load Rating 138 kN
  • Reference Speed 4650r/min
  • Breakdown Voltage (DC) ≤1000v
  • Layer Thic kNess 200 um
  • Electrical Resistance 50MΩ (Dry); 10MΩ (Damp)
  • Cage Material M - Brass Cage
  • Radial Internal Clearance C4
  • ROHS Compliant
  • REACH Compliant

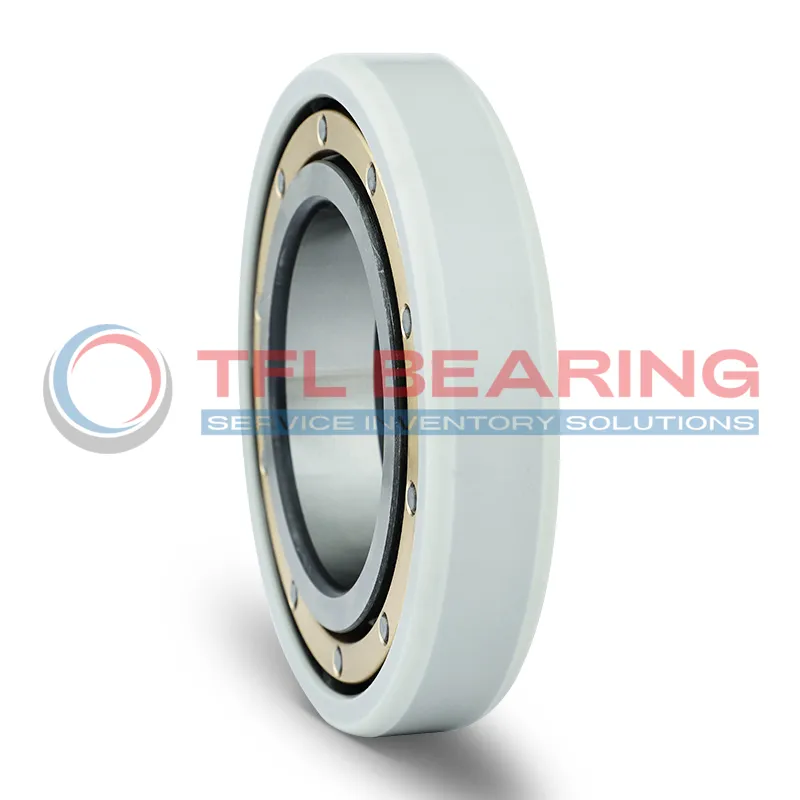

FAG Current-Insulated Single Row Cylindrical Roller Bearing NU214-E-M1-F1-J20AA-C4 dimension drawing
Download DWG Download PDF

Features

How Does NU214-E-M1-F1-J20AA-C4 Bearing Resist Electrical Current?

NU214-E-M1-F1-J20AA-C4 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of up to 1000V, making it suitable for applications with electrical interference.

Its brass cage enhances durability and maintains smooth operation under high loads.
With a basic dynamic load rating of 141 kN, it delivers reliable performance in demanding conditions.

The bearing’s C4 radial internal clearance allows for thermal expansion, ensuring stability in varying temperatures.
Its electrical resistance remains high, even in damp environments, offering consistent insulation.

Application

Industrial Uses of NU214-E-M1-F1-J20AA-C4 Bearing
NU214-E-M1-F1-J20AA-C4 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical arcing. The brass cage ensures smooth operation even under high rotational speeds.

Where Is NU214-E-M1-F1-J20AA-C4 Bearing Used?
In wind turbines, NU214-E-M1-F1-J20AA-C4 Bearing handles radial loads while its ceramic coating protects against stray currents. This makes it a reliable choice for renewable energy applications.

Built for Heavy-Duty Use: NU214-E-M1-F1-J20AA-C4 Bearing
NU214-E-M1-F1-J20AA-C4 Bearing excels in industrial gearboxes, where its C4 clearance accommodates thermal expansion. The high dynamic load rating ensures longevity in demanding environments.

Automotive vs Aerospace: Applications of NU214-E-M1-F1-J20AA-C4 Bearing
In automotive alternators, NU214-E-M1-F1-J20AA-C4 Bearing reduces electrical interference. For aerospace, its lightweight design and insulation properties make it suitable for avionics systems.

Perfect Fit for Automation: NU214-E-M1-F1-J20AA-C4 Bearing
NU214-E-M1-F1-J20AA-C4 Bearing is ideal for robotic arms, where precision and electrical insulation are key. The ceramic coating also resists wear in continuous operation.
