Drawn Cup Needle Roller Bearings SCH2020-PP

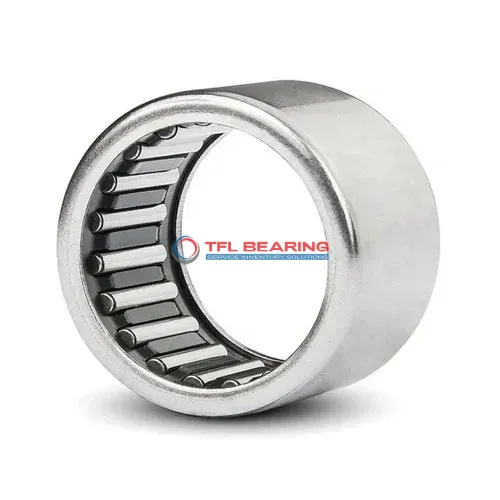

Drawn Cup Needle Roller Bearings SCH2020-PP

The SCH2020-PP is a drawn cup needle roller bearing with a 1.25″ bore and 1.625″ outer diameter, made from sturdy steel. It handles radial loads up to 8093 lbf and spins smoothly at speeds up to 7700 RPM.
Its double-seal design keeps dirt out and grease in, making it low-maintenance for long-term use. The press-fit shaft mount ensures a secure installation.
This bearing is ideal for applications like automotive components or industrial machinery where space is tight but performance is key. It works well in temperatures from -20°C to 110°C.
Weighing just 0.15kg, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH2020-PP
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 1.25"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Double Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 8093 lbf
  • Static Radial Load 13039 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7700 rpm
  • Weight 87 g
Drawn Cup Needle Roller Bearings SCH2020-PP dimension drawing
Download DWG Download PDF

Features

How Does SCH2020-PP Bearing Handle Heavy Radial Loads?
SCH2020-PP Bearing is built with steel rings and rollers, offering robust resistance to heavy radial loads.
Its dynamic radial load capacity reaches 8093 lbf, ensuring dependable performance in tough conditions.
The double-seal design protects against contaminants, enhancing longevity and reducing maintenance needs.
With a maximum speed of 7700 rpm, it delivers both durability and efficiency for demanding applications.

Application

Common Applications of SCH2020-PP Bearing
SCH2020-PP Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The double seal ensures reliable performance even in dusty environments.
In automotive systems, SCH2020-PP Bearing fits well in transmission assemblies and steering mechanisms, thanks to its press-fit mounting and durability. Its inch sizing makes it a common choice for North American vehicle models.
For automation equipment, SCH2020-PP Bearing’s steel construction provides stability in robotic arms and conveyor systems. The needle roller design offers smooth motion under heavy radial loads.
In household appliances like washing machines, SCH2020-PP Bearing’s sealed design helps maintain performance over time. Its resistance to wear makes it a dependable option for daily use.
