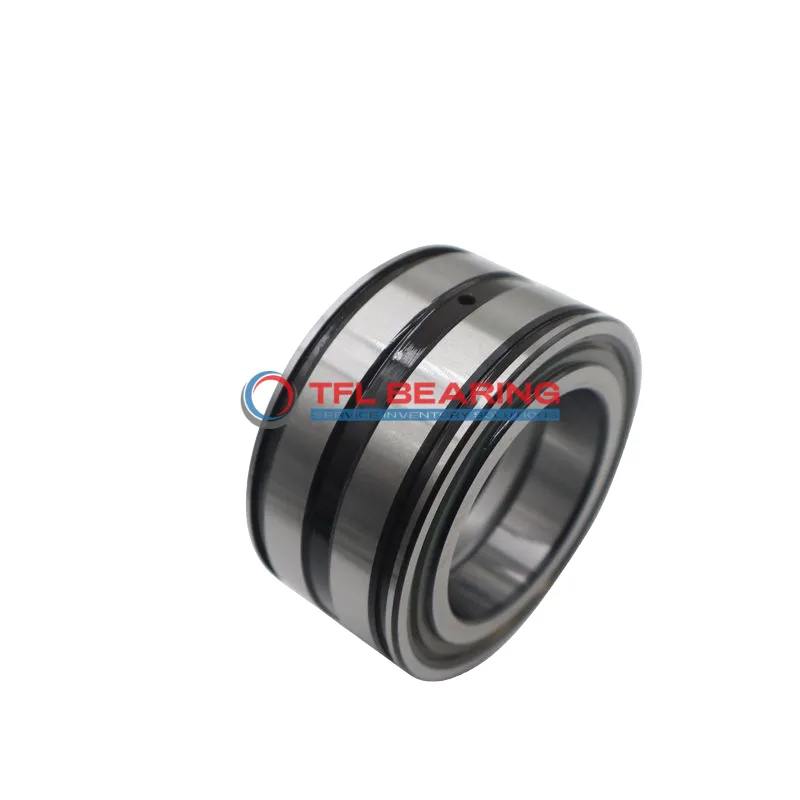

Double Row Full Complement Cylindrical Roller Bearings NNCF 4936 CV

Double Row Full Complement Cylindrical Roller Bearings NNCF 4936 CV

The NNCF 4936 CV is a double-row cylindrical roller bearing with a 180mm bore and 250mm outer diameter, built from tough chrome steel. It handles combined loads up to 133650 lbf and runs smoothly at speeds up to 1000 RPM.

Its full-complement design (no cage) maximises load capacity, while the open seal allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial gearboxes where high radial loads are common.

Weighing 10.3kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNCF 4936 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 69 mm
  • Width Tolerance -0.25mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Diameter Inner Ring 206 mm
  • Raceway Diameter Outer Ring 223.5 mm
  • Width Annular Lubrication Groove Outer Ring 7 mm
  • Diameter Lubrication Hole (Outer Ring) 4 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 4 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 133650 lbf
  • Static Radial Load 274500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 10.3 kg
Double Row Full Complement Cylindrical Roller Bearings NNCF 4936 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNCF 4936 CV Bearing

NNCF 4936 CV Bearing is constructed with double row full complement cylindrical rollers, offering high load capacity and stability.
Its 52100 chrome steel rings and rollers ensure durability and resistance to wear under heavy radial loads.

The open design allows for easy lubrication with grease or oil, maintaining smooth operation.
With a dynamic radial load capacity of 133,650 lbf, it handles demanding applications effectively.

NNCF 4936 CV Bearing operates within a temperature range of -30° to 110°C, suitable for various environments.
Its full complement design eliminates the need for a cage, maximising roller count and load distribution.

The bearing’s permissible axial displacement of 4 mm accommodates slight misalignments.
Weighing 10.3 kg, it balances strength and practicality for industrial use.

Application

Industrial Uses of NNCF 4936 CV Bearing
NNCF 4936 CV Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without the need for a cage.

Where Is NNCF 4936 CV Bearing Used?
In wind turbines, NNCF 4936 CV Bearing supports the main shaft, providing stability under varying wind conditions. Its chrome steel construction offers durability in harsh outdoor environments.

Built for Heavy-Duty Use: NNCF 4936 CV Bearing
This bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. The open seal type allows for easy lubrication, extending service life in demanding applications.

Automotive vs Aerospace: Applications of NNCF 4936 CV Bearing
In automotive applications, NNCF 4936 CV Bearing is found in heavy-duty truck transmissions, while in aerospace, it supports auxiliary systems requiring high precision. Its metric sizing ensures compatibility across industries.

Practical Applications of NNCF 4936 CV Bearing
For construction machinery like cranes, NNCF 4936 CV Bearing provides reliable performance under combined loads. The grease or oil lubrication options make it adaptable to different operating conditions.
