Drawn Cup Needle Roller Bearings SCH1612

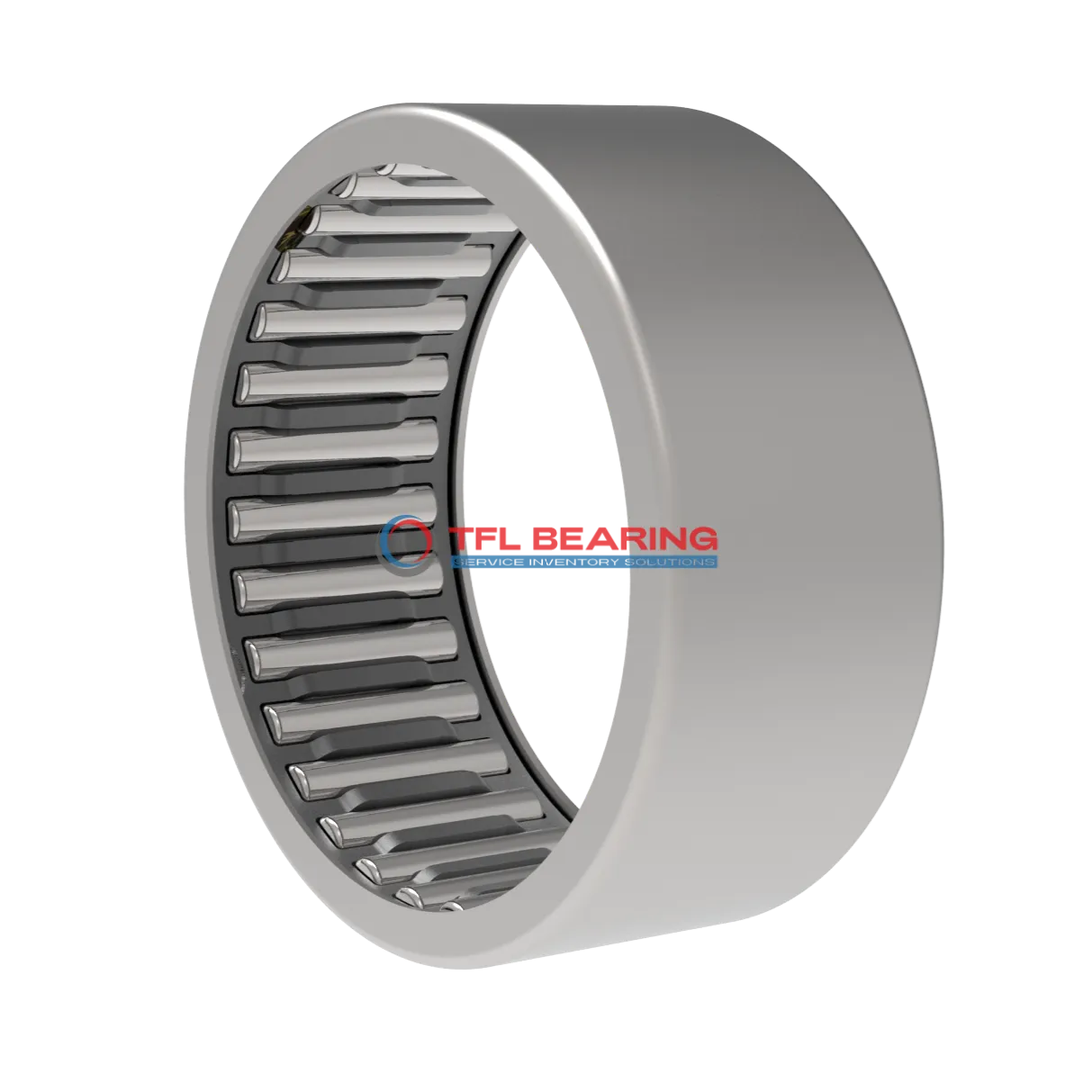

Drawn Cup Needle Roller Bearings SCH1612

The SCH1612 is a drawn cup needle roller bearing with a 1-inch bore and 1.3125-inch outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4496 lbf and operates smoothly at speeds up to 9800 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. Regular lubrication is needed to maintain optimal performance.
This bearing is interchangeable with INA models, offering a practical replacement option. Suitable for applications like automotive components or industrial machinery where space is limited but high load capacity is required.
With a working temperature range of -20°C to 110°C and RoHS compliance, it’s a versatile choice for various environments. The compact width of 0.75 inches fits neatly into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCH1612
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.3125"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4496 lbf
  • Static Radial Load 6407 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9800 rpm
  • Weight 36 g
Drawn Cup Needle Roller Bearings SCH1612 dimension drawing
Download DWG Download PDF

Features

Why Choose SCH1612 Bearing for Precision Tasks?
SCH1612 Bearing is crafted with steel rings and needles, offering strong radial load capacity up to 4496 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during operation.
The open-end design allows for easy lubrication, maintaining smooth performance.
With a maximum speed of 9800 rpm, it suits high-speed applications while maintaining durability.

Application

Common Applications of SCH1612 Bearing
SCH1612 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its steel construction ensures durability in demanding environments.
In automotive systems, SCH1612 Bearing fits well in gearboxes and steering mechanisms, providing reliable performance under radial loads. The press-fit design makes installation straightforward for mechanics.
For automation equipment, SCH1612 Bearing works smoothly in robotic arms and assembly lines, thanks to its high-speed capability. The open-end series allows for easy lubrication, extending its service life.
In household appliances, SCH1612 Bearing can be found in power tools and small motors, where its compact size and efficiency are key. The inch measurements make it compatible with many North American products.
