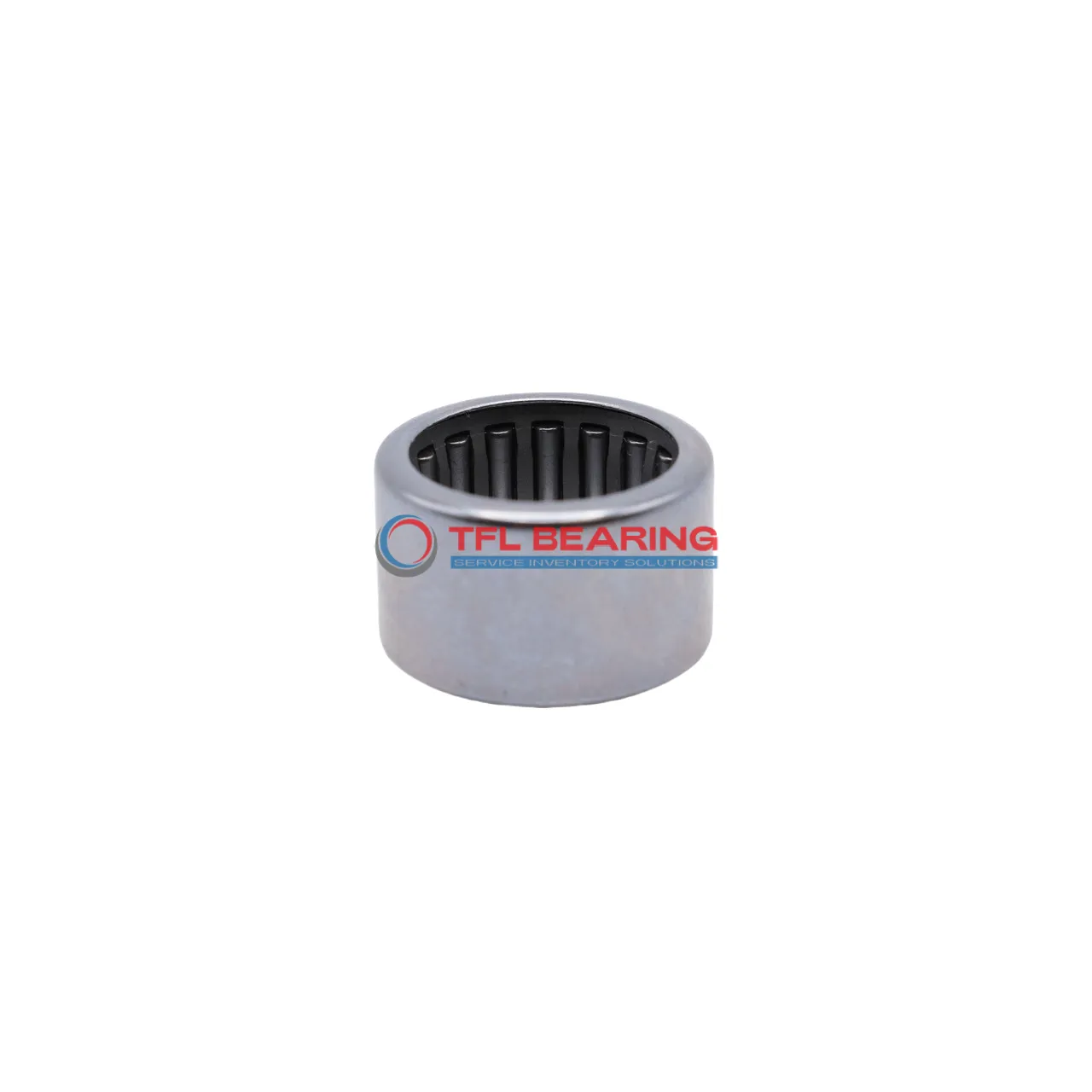

Drawn Cup Needle Roller Bearings SCE710

Drawn Cup Needle Roller Bearings SCE710

The SCE710 is a drawn cup needle roller bearing with a 0.4375″ bore and 0.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1821 lbf and spins smoothly at speeds up to 21900 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It’s well-suited for applications like small gearboxes or automotive components where space is limited.
Operating in temperatures from -20°C to 110°C, it’s versatile for various environments. Compliant with RoHS standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE710
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.4375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1821 lbf
  • Static Radial Load 2405 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 21900 rpm
  • Weight 9 g
Drawn Cup Needle Roller Bearings SCE710 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE710 Bearing
SCE710 Bearing is crafted with steel rings and rollers, offering robust resistance to radial loads.
Its dynamic radial load capacity reaches 1821 lbf, making it suitable for high-performance applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 21,900 rpm, it delivers reliable operation in demanding conditions.
SCE710 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication ensures smooth performance and extends the bearing’s service life.

Application

Common Applications of SCE710 Bearing
SCE710 Bearing is widely used in industrial equipment like conveyor systems and packaging machinery, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure installation in high-vibration environments.
In automotive applications, SCE710 Bearing fits well in gearboxes and steering systems, providing smooth rotation under heavy radial stress. Its steel construction offers durability, making it a reliable choice for long-term use.
For automation projects, SCE710 Bearing works effectively in robotic arms and linear guides, where precision and low friction are key. The open-end design allows for easy lubrication, maintaining performance over time.
You’ll also find SCE710 Bearing in household appliances like power tools, where its high-speed capability ensures consistent operation. The inch sizing makes it compatible with many North American machine designs.
