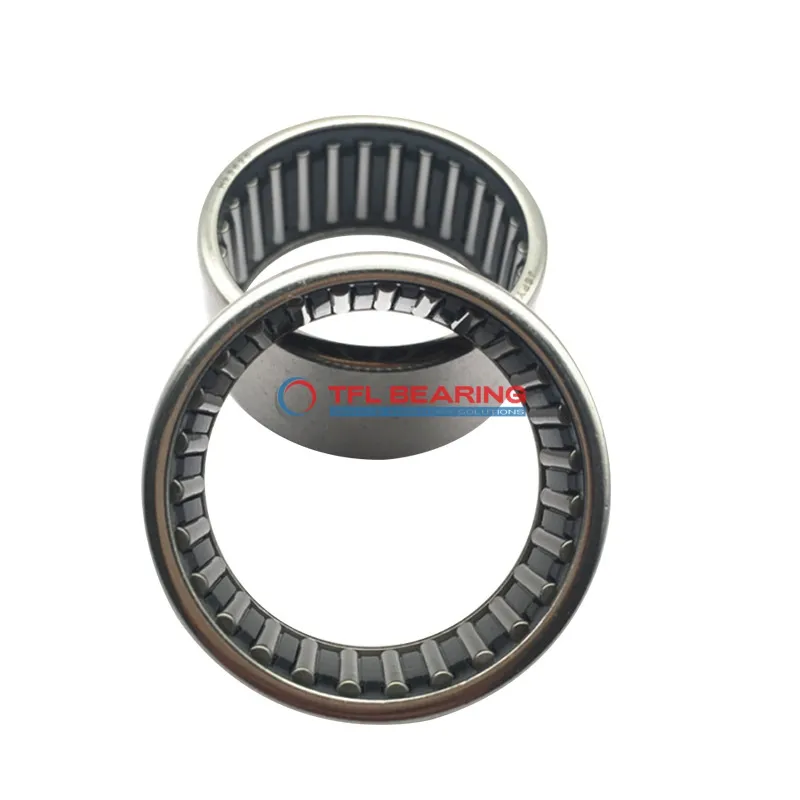

Drawn Cup Needle Roller Bearings SCE108

Drawn Cup Needle Roller Bearings SCE108

The SCE108 is a drawn cup needle roller bearing with a 0.625″ bore and 0.8125″ outer diameter, crafted from sturdy steel. It handles radial loads up to 1821 lbf and spins efficiently at speeds up to 16000 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Perfect for applications like automotive components or small machinery where space is limited.
Regular lubrication is needed to maintain smooth performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE108
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.8125"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1821 lbf
  • Static Radial Load 2698 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 16000 rpm
  • Weight 9 g
Drawn Cup Needle Roller Bearings SCE108 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE108 Bearing
SCE108 Bearing is crafted with steel rings and rollers, offering robust radial load support.
Its dynamic radial load capacity reaches 1821 lbf, making it suitable for high-demand applications.
The press-fit shaft mount design ensures secure installation, reducing slippage during operation.
With a maximum speed of 16,000 rpm, it delivers reliable performance in fast-moving systems.
SCE108 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication enhances its longevity and maintains smooth performance.

Application

Common Applications of SCE108 Bearing
SCE108 Bearing is widely used in industrial equipment like conveyor systems and packaging machinery, where its compact design helps save space. The steel construction ensures it can handle radial loads efficiently in tight spaces.
In automotive applications, SCE108 Bearing fits well in gearboxes and steering systems, providing smooth operation under high speeds. Its press-fit mounting makes installation straightforward for mechanics.
For automation projects, SCE108 Bearing works reliably in robotic arms and linear guides, thanks to its high-speed capability. The open-end design allows easy lubrication, extending its service life in continuous operations.
Around the home, SCE108 Bearing can be found in power tools and small appliances, where durability matters. Its inch sizing makes it compatible with many North American products.
