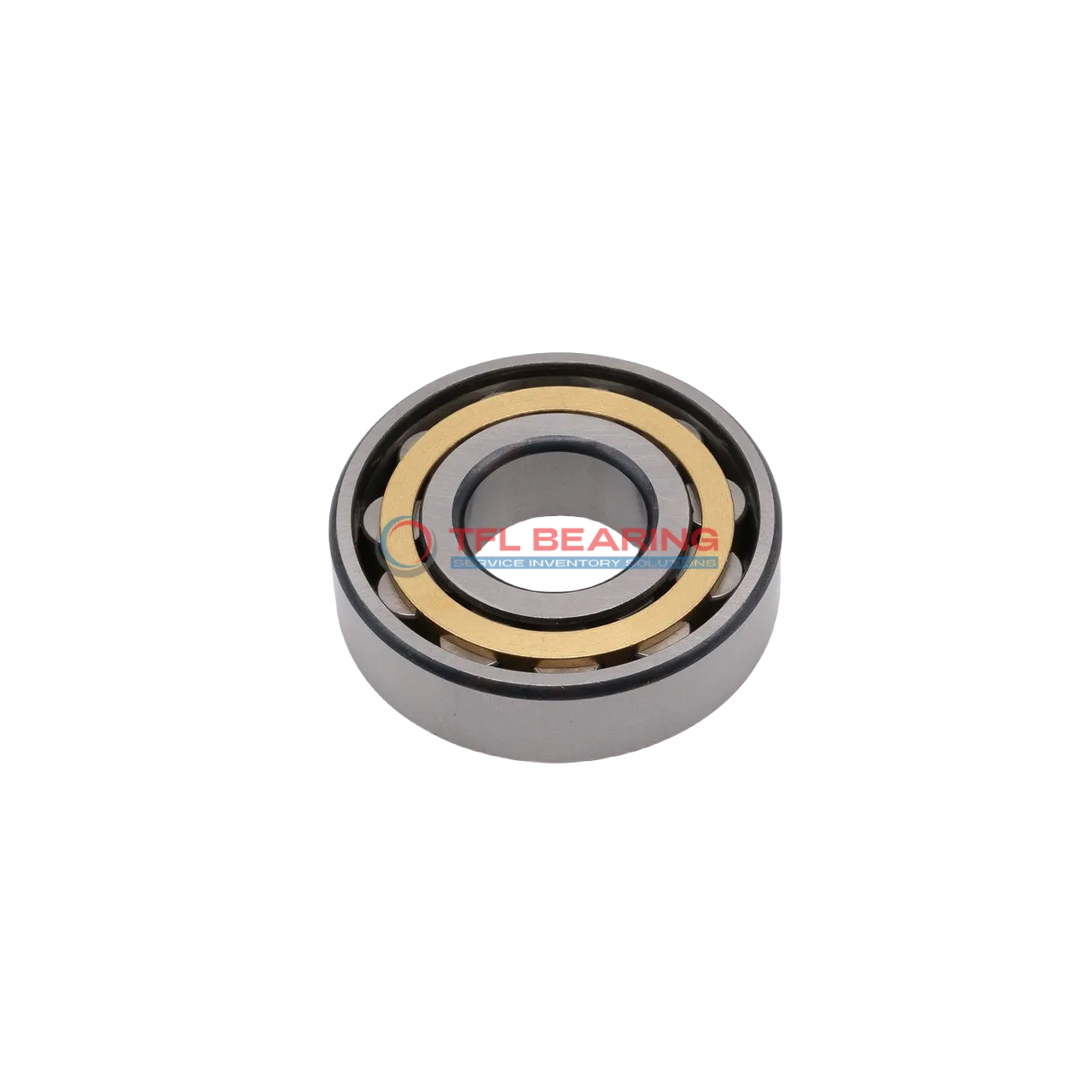

Single Row Cylindrical Roller Bearings With Inner Ring N 28/1400 ECMP

Single Row Cylindrical Roller Bearings With Inner Ring N 28/1400 ECMP

The N 28/1400 ECMP is a single-row cylindrical roller bearing with a large 1400mm bore and 1700mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,485,000 lbf and works in temperatures from -30°C to 110°C.

Its open design allows flexible lubrication with grease or oil, while the PA66 cage keeps rollers centred for smooth operation. The bearing suits heavy-duty applications where axial displacement up to 16.2mm may occur.

This model is interchangeable with SKF bearings, ideal for large industrial machinery like turbines or rolling mills. Weighing 865kg, it’s built for stability under extreme radial loads.

Compliant with RoHS and REACH standards, it offers reliable performance in demanding environments. The chamfered edges (7.5mm) ease installation in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 28/1400 ECMP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 1400 mm
  • Bore Dia Tolerance -0.16mm to 0
  • Outer Dia 1700 mm
  • Outer Dia Tolerance -0.2 mm to 0
  • Width 175 mm
  • Width Tolerance -1.60mm to 0
  • Shoulder Dia Of Inner Ring 1506 mm
  • Raceway Diameter Of Outer Ring(E) 1637 mm
  • Chamfer Dimension r1,2(min.) 7.5 mm
  • Permissible Axial Displacement(max.) 16.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 1485000 lbf
  • Static Radial Load 4117500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 865 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 28/1400 ECMP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 28/1400 ECMP Bearing

N 28/1400 ECMP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 1,485,000 lbf, ensuring reliable performance in heavy-duty applications.

The PA66 cage keeps the rollers centred, reducing wear and extending service life.
With a width of 175 mm, it provides stability and durability in demanding conditions.

N 28/1400 ECMP Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of N 28/1400 ECMP Bearing
N 28/1400 ECMP Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is N 28/1400 ECMP Bearing Used?
You’ll often find N 28/1400 ECMP Bearing in wind turbines, where its large bore diameter and robust construction support smooth rotation under varying loads. The chrome steel rollers provide excellent durability in outdoor environments.

Built for Heavy-Duty Use: N 28/1400 ECMP Bearing
N 28/1400 ECMP Bearing excels in mining equipment, such as crushers and conveyors, thanks to its high static radial load capacity. The PA66 cage ensures stable roller alignment, even under intense vibrations.

Automotive vs Aerospace: Applications of N 28/1400 ECMP Bearing
In automotive applications, N 28/1400 ECMP Bearing is suited for large commercial vehicle axles, while in aerospace, it’s used in ground support equipment due to its precision and load-handling capabilities. The metric sizing ensures compatibility across industries.

Essential Roles of N 28/1400 ECMP Bearing
N 28/1400 ECMP Bearing plays a key role in hydroelectric power plants, supporting turbine shafts with its combined load capacity. The grease or oil lubrication options make it adaptable to different operational needs.
