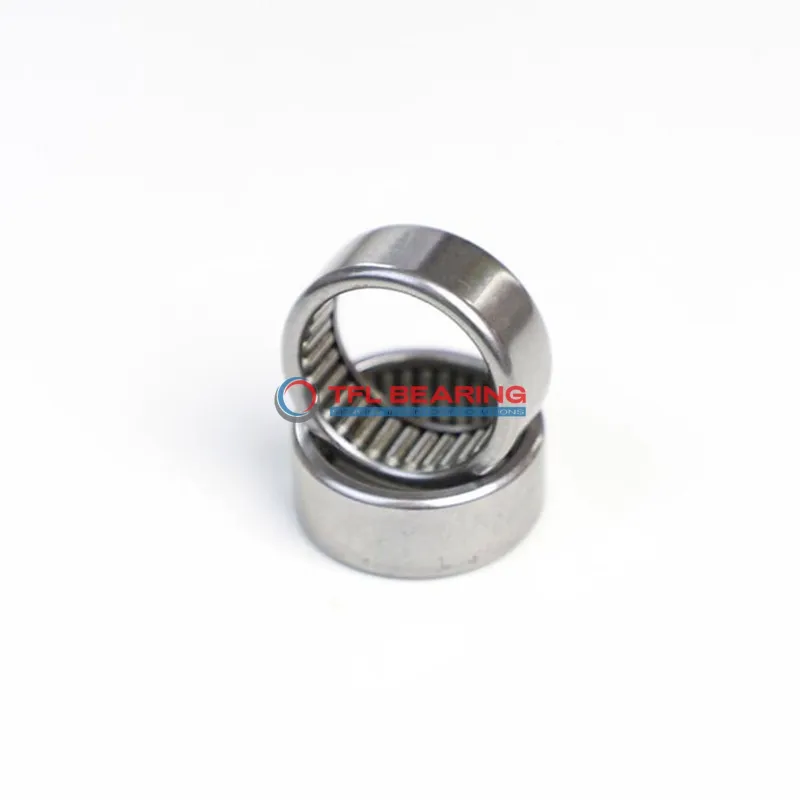

Drawn Cup Needle Roller Bearings HN2520

Drawn Cup Needle Roller Bearings HN2520

The HN2520 is a drawn cup needle roller bearing with a 25mm bore and 32mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6295 lbf and operates smoothly at speeds up to 4400 RPM.

Its full complement design offers high load capacity without a cage, making it compact yet durable. The open seal allows for easy lubrication, essential for maintaining smooth operation.

This bearing is press-fit mounted, ensuring a secure fit on shafts. It works well in temperatures ranging from -20°C to 110°C, suitable for various industrial environments.

Interchangeable with INA bearings, it’s a practical choice for replacements. Ideal for applications like automotive components or machinery where space is limited but high radial load capacity is needed.

Compliant with RoHS standards, it’s a safe and dependable option for your needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN2520
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 25 mm
  • Bore Dia Tolerance +20-+41°Cm
  • Outer Dia 32 mm
  • Outer Dia Tolerance Not Rated
  • Width 20 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 6295 lbf
  • Static Radial Load 13264 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 4400 rpm
  • Weight 39.6 g

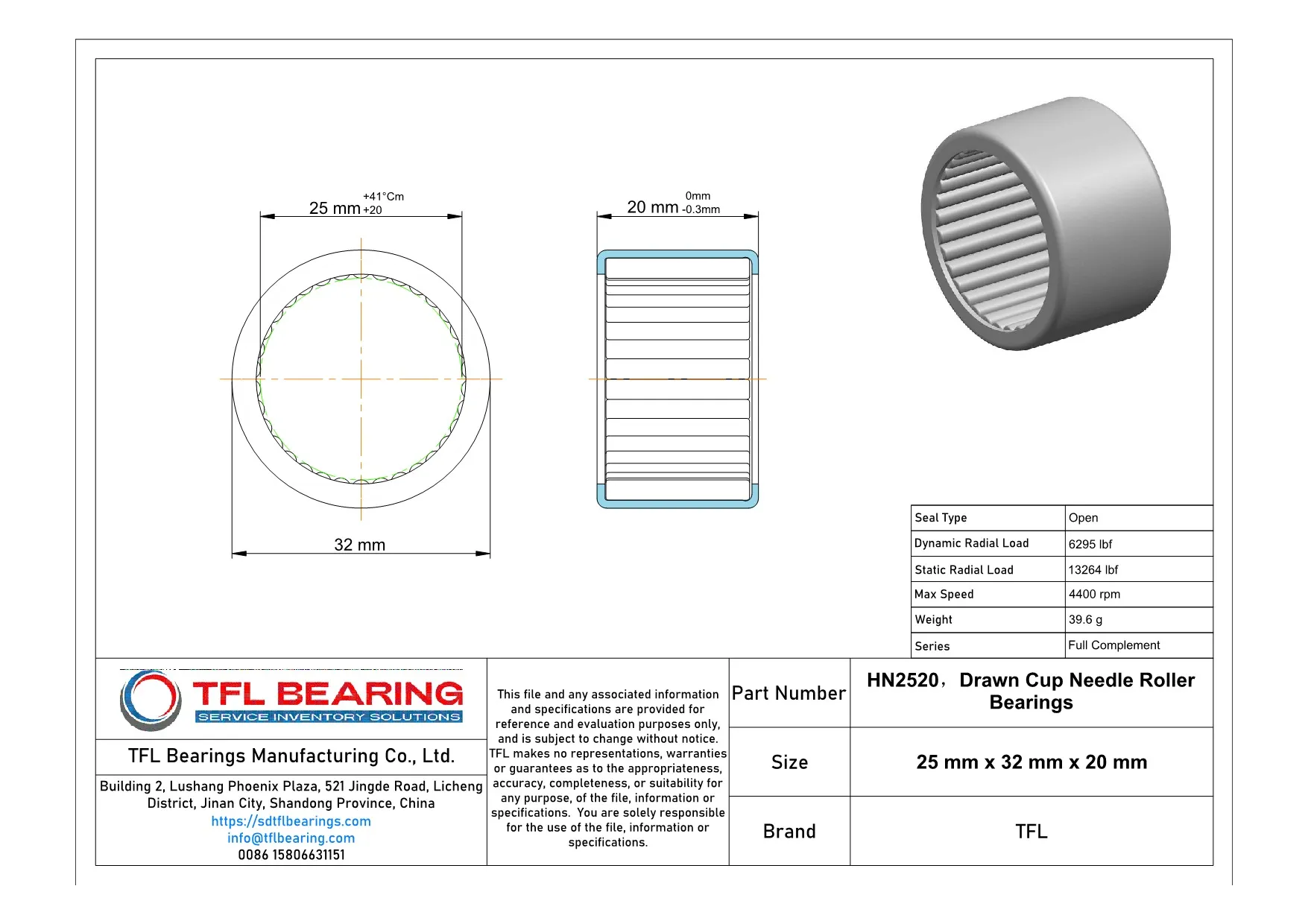

Drawn Cup Needle Roller Bearings HN2520 dimension drawing
Download DWG Download PDF

Features

How Does HN2520 Bearing Handle Heavy Loads?
HN2520 Bearing is built with a full complement needle roller design, offering high radial load capacity.
Its dynamic radial load rating of 6295 lbf ensures reliable performance in demanding applications.
The steel construction of HN2520 Bearing provides durability and resistance to wear.
With a maximum speed of 4400 rpm, it balances efficiency and strength.
HN2520 Bearing operates in temperatures from -20 to 110°C, suitable for various environments.
Its press-fit shaft mount simplifies installation, reducing setup time.

Application

Industrial Uses of HN2520 Bearing
HN2520 Bearing works well in compact spaces like gearboxes and transmission systems, thanks to its slim design and high radial load capacity. The steel construction ensures durability even in demanding industrial settings.
Where Is HN2520 Bearing Used?
You’ll often spot HN2520 Bearing in automotive applications, such as steering systems and pumps, where its press-fit design simplifies installation. Its full complement of needles boosts load handling without needing a cage.
Built for Heavy-Duty Use: HN2520 Bearing
HN2520 Bearing handles high radial loads in machinery like conveyor rollers, making it a reliable choice for continuous operation. The open seal allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of HN2520 Bearing
In cars, HN2520 Bearing supports components like clutch release mechanisms, while in factories, it’s ideal for compact machinery requiring robust performance. Its metric sizing fits seamlessly into various designs.
Perfect Fit for Automation: HN2520 Bearing
HN2520 Bearing excels in robotic arms and small actuators, where precision and space-saving are key. The steel rollers provide smooth movement under radial loads, ensuring consistent performance.
