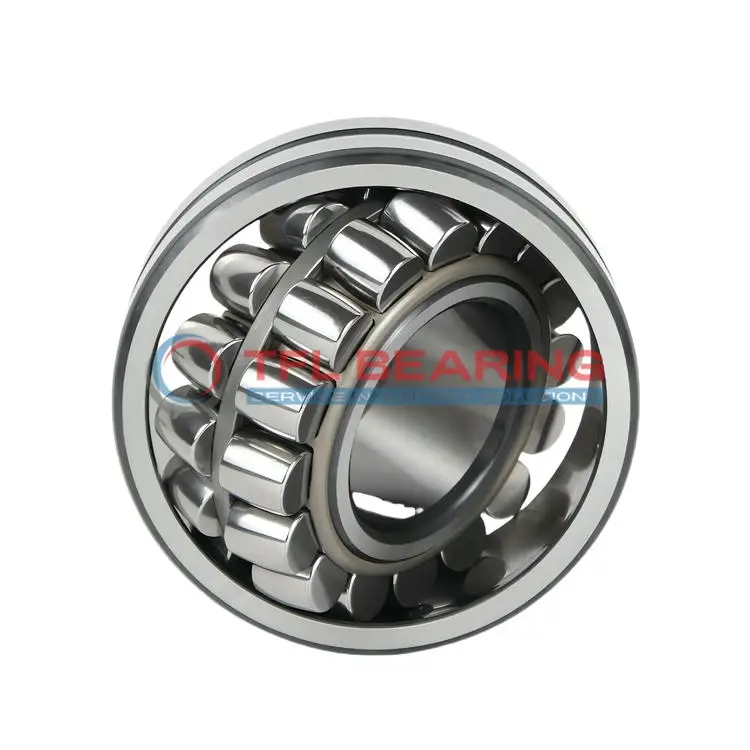

22206 E/W64F Double Row Spherical Roller Bearing

22206 E/W64F Double Row Spherical Roller Bearing

The 22206 E/W64F is a double-row spherical roller bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 1486 lbf and reaches speeds of 14000 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes simplify maintenance. The bearing operates smoothly in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for heavy-duty applications like industrial gearboxes or conveyor systems where combined loads are present.

Weighing 0.28kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22206 E/W64F
  • Brand TFL
  • Interchangeable SKF
  • Size 30 x 62 x 20 mm
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 37.6 mm
  • Shoulder/Recess Dia Of Outer Ring 53 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1486 lbf
  • Static Radial Load 13489 lbf
  • Max Speed 14000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.28 kg
  • Price （US$） 36.8

Features

Performance Features of 22206 E/W64F Bearing

22206 E/W64F Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 1486 lbf, ensuring reliable operation in various applications.

The double-row spherical roller design allows for smooth performance even under misalignment conditions.
With a maximum speed of 14,000 rpm, it delivers both durability and efficiency.

22206 E/W64F Bearing operates in temperatures from -30° to 200°C, making it suitable for demanding environments.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Lubrication grooves and holes in 22206 E/W64F Bearing ensure proper lubrication distribution.
This design feature helps maintain performance and reduces maintenance requirements.

Application

Industrial Uses of 22206 E/W64F Bearing
22206 E/W64F Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is 22206 E/W64F Bearing Used?
In automotive applications, 22206 E/W64F Bearing supports components like gearboxes and differentials, providing reliable performance under high-speed conditions. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 22206 E/W64F Bearing
For mining equipment, 22206 E/W64F Bearing excels in handling extreme loads and harsh conditions. The spherical roller design allows for slight misalignments, reducing wear and extending service life.

Automotive vs Aerospace: Applications of 22206 E/W64F Bearing
While 22206 E/W64F Bearing is popular in automotive gearboxes, it also finds use in aerospace landing gear systems. Its high-temperature tolerance and load capacity make it suitable for both industries.

Essential Roles of 22206 E/W64F Bearing
In wind turbines, 22206 E/W64F Bearing supports the main shaft, handling variable loads and misalignments. The steel cage and chrome steel rollers ensure long-term reliability in this critical application.
