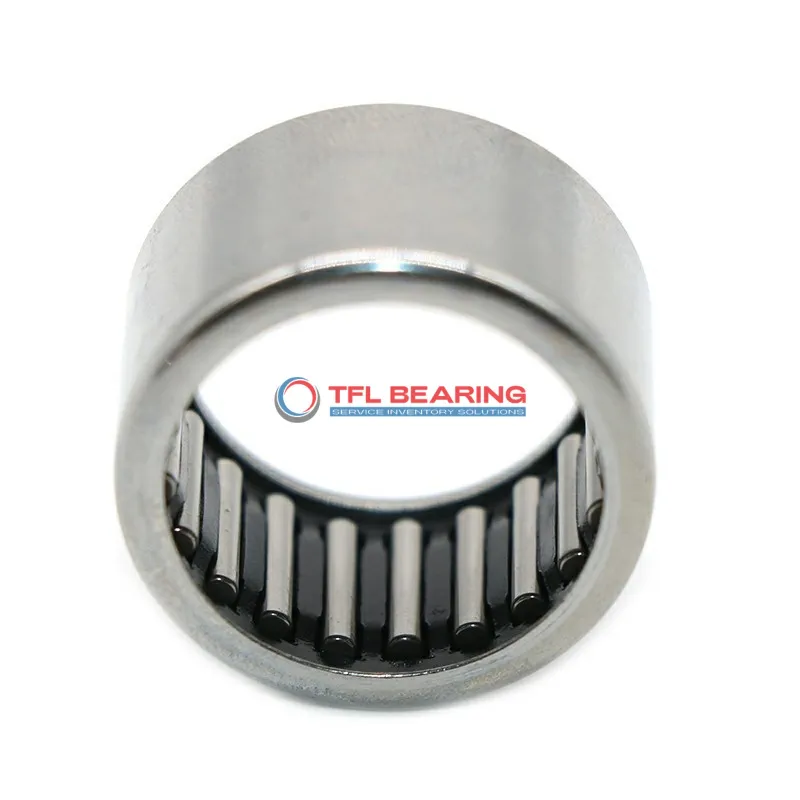

Drawn Cup Needle Roller Bearings HK1616

Drawn Cup Needle Roller Bearings HK1616

The HK1616 is a drawn cup needle roller bearing with a 16mm bore and 22mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 245 lbf and can spin at speeds up to 15600 RPM.
Its open-end design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Perfect for applications like gear pumps or small engines where space is limited but performance is key.
Regular lubrication is needed to maintain smooth operation. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK1616
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 16 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 22 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 245 lbf
  • Static Radial Load 344 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 15600 rpm
  • Weight 16 g
Drawn Cup Needle Roller Bearings HK1616 dimension drawing
Download DWG Download PDF

Features

How Does HK1616 Bearing Handle High-Speed Applications?
HK1616 Bearing is crafted with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 245 lbf, ensuring steady performance in high-speed conditions.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 15,600 rpm, it delivers reliable operation in demanding environments.

Application

Common Applications of HK1616 Bearing
HK1616 Bearing is widely used in industrial equipment like conveyor systems and packaging machinery, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure installation in high-vibration environments.
In automotive applications, HK1616 Bearing fits well in gearboxes and steering systems, providing smooth rotation under moderate loads. Its steel construction offers durability, making it suitable for long-term use in vehicles.
For automation projects, HK1616 Bearing works reliably in robotic arms and linear guides, where precision and low friction are key. The open-end design allows for easy lubrication, extending its service life in continuous operations.
You’ll also find HK1616 Bearing in household appliances like electric drills and printers, where its small size and radial load capacity are advantageous. The metric dimensions make it compatible with many European and Asian-made devices.
