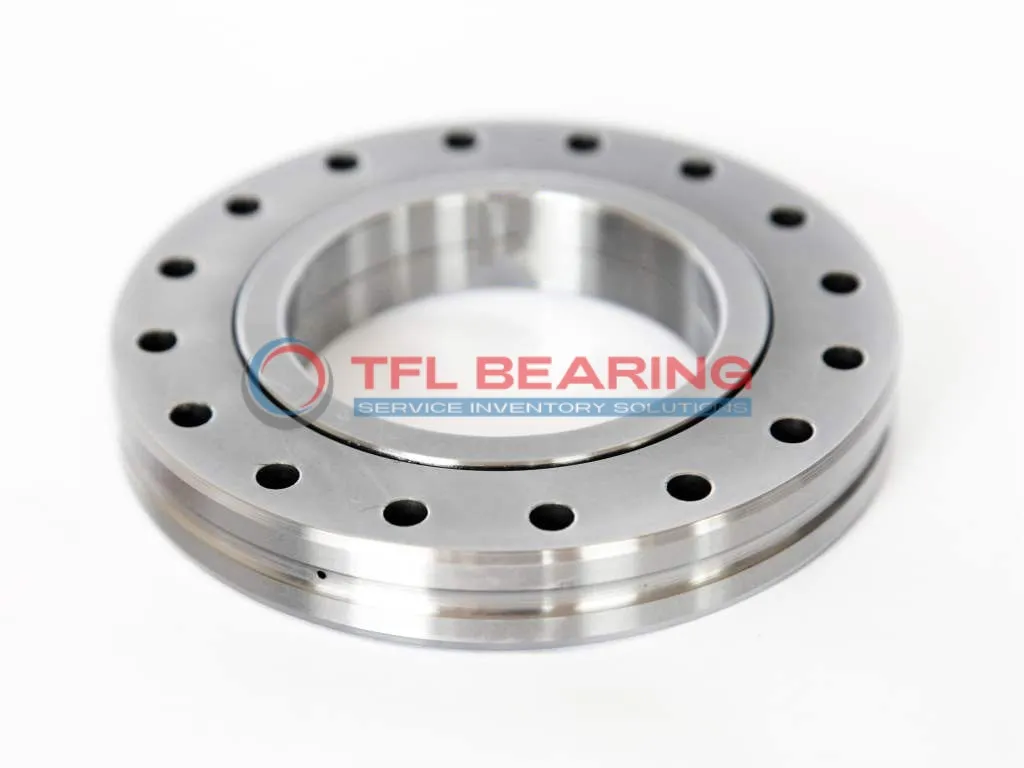

XV Crossed Roller Bearings XV80

XV Crossed Roller Bearings XV80

The XV80 crossed roller bearing measures 80mm in bore diameter and 135mm in outer diameter, with a compact width of 18mm. Made for precision, it handles radial loads up to 7650 lbf and spins smoothly at speeds up to 804 RPM.

Its crossed roller design ensures high accuracy, with radial and axial running precision of 10mm. The bearing includes 16 mounting holes for secure installation, making it stable under heavy loads.

With a basic load rating of 24 kN, it’s built to last in demanding conditions. The ABEC5 rating (upgradable to ABEC7/9) guarantees reliable performance for precision applications.

Ideal for rotary tables or industrial robots, this bearing is RoHS and REACH compliant. Weighing 1.078kg, it’s a robust yet manageable choice for high-precision machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number XV80
  • Size 80 mm x 135 mm x 18 mm
  • Brand TFL
  • System of Measurement Metric
  • Roller Bearing Type Crossed
  • Di 955 mm
  • Da 945 mm
  • DB 66 mm
  • DS 11 mm
  • Ha 18 mm
  • Hi 19 mm
  • La 120 mm
  • Number Of Holes Per Ring(nϑr) 16
  • TS 64 mm
  • Bore Dia 80 mm
  • Outer Dia 135 mm
  • Width 18 mm
  • Running Accuracy Radial 10 mm
  • Running Accuracy Axial 10 mm
  • Holes With Holes
  • Basic Load Rating C 24 kN
  • Basic Load Rating Co 49.5 kN
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • Maximum Permissible Radial Load Against Friction Lock(Frper) 15.3 kN
  • Dynamic Radial Load 7650 lbf
  • Static Radial Load 22725 lbf
  • Limiting Speed With Preload 402 1/min
  • Limiting Speed With Clearance 804 1/min
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.078 Kg

Features

How Is XV80 Bearing Engineered for Reliability?

XV80 Bearing features a crossed roller design, ensuring high precision and stability in demanding applications.
Its basic load rating of 24 kN allows it to handle significant radial loads with ease.

The ABEC5 rating guarantees tight tolerances, making XV80 Bearing suitable for precision tasks.
With a limiting speed of 804 1/min, it balances performance and durability.

XV80 Bearing’s holes per ring design simplifies installation, saving time and effort.
Its compliant RoHS and REACH status ensures it meets environmental standards.

The chrome steel construction resists wear, extending XV80 Bearing’s service life.
Its static radial load capacity of 22,725 lbf makes it reliable for heavy-duty use.

Application

Key Fields for XV80 Bearing
XV80 Bearing is commonly used in industrial automation, especially in robotic arms and precision machinery where its crossed roller design ensures accurate movement. The high load capacity makes it suitable for heavy-duty applications like CNC machines.

Where Is XV80 Bearing Used?
You’ll find XV80 Bearing in medical imaging devices, where its low friction and smooth operation are essential for precise positioning. Its ABEC5 rating ensures reliable performance in sensitive equipment.

Built for Heavy-Duty Use: XV80 Bearing
XV80 Bearing excels in automotive testing rigs, handling radial loads with ease. The preload options allow for fine-tuning, making it ideal for dynamic testing environments.

Light-Duty vs Heavy-Duty: Best Uses for XV80 Bearing
In light-duty applications like 3D printers, XV80 Bearing provides smooth linear motion. For heavier tasks, such as conveyor systems, its robust construction ensures long-lasting performance.

Perfect Fit for Automation: XV80 Bearing
XV80 Bearing is a go-to choice for automated production lines, thanks to its high-speed capability and minimal maintenance needs. The metric sizing simplifies integration into European-designed machinery.
