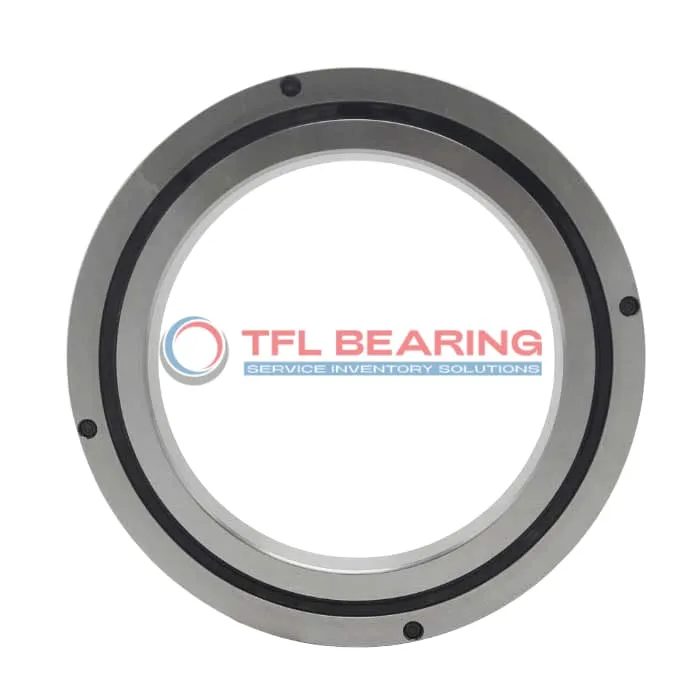

CRBC Crossed Roller Bearings CRB3010UU

CRBC Crossed Roller Bearings CRB3010UU

The CRB3010UU is a compact crossed roller bearing measuring 30mm by 55mm by 10mm, crafted from sturdy steel for reliable performance. It handles combined loads up to 7.35 kN and is designed for press-fit mounting.

With double seals, it keeps contaminants out while maintaining smooth operation. The bearing works in temperatures from 0°C to 110°C, making it versatile for various environments.

Its crossed roller design ensures high precision, suitable for applications like robotics or medical equipment. The ABEC5 rating (with options for ABEC7/9) guarantees consistent accuracy.

Weighing just 0.12kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for industrial and technical uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRB3010UU
  • Brand TFL
  • Size 30 mm x 55 mm x 10 mm
  • Bore Dia 30 mm
  • Outer Dia 55 mm
  • Width 10 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 37 mm
  • Shoulder Height Dh(min) 47 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 7.35 kN
  • Basic Load Rating Co 8.36 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.12 Kg

Features

How Is CRB3010UU Bearing Engineered for Reliability?

CRB3010UU Bearing features a crossed roller design, providing stability and precision for combined load applications.
Its steel rings and rollers ensure durability, with a basic load rating of 7.35 kN for dynamic performance.
The double-sealed construction keeps contaminants out, extending the bearing’s service life.
With a temperature range of 0-230°F, it performs reliably in various operating conditions.

Why Choose CRB3010UU Bearing for Precision Tasks?

CRB3010UU Bearing’s ABEC5 rating ensures high precision, making it suitable for demanding applications.
The press-fit shaft mount design simplifies installation while maintaining secure alignment.
Its compact 30x55x10 mm size offers space-saving benefits without compromising performance.
The required lubrication ensures smooth operation and reduces wear over time.

Built for Durability: CRB3010UU Bearing

CRB3010UU Bearing’s steel construction resists wear, even under heavy combined loads.
The double-sealed design protects against dust and moisture, enhancing reliability.
With a static load rating of 8.36 kN, it handles high-stress conditions effectively.
Its 0.6 mm chamfer radius allows for easy integration into tight spaces.

Steel vs Ceramic Bearings: Strengths of CRB3010UU Bearing

CRB3010UU Bearing’s steel rollers provide excellent load capacity and long-term durability.
The crossed roller arrangement ensures high rigidity and precise motion control.
Its double-sealed design is ideal for environments where contamination is a concern.
Weighing just 0.12 kg, it offers a balance of strength and lightweight performance.

Application

Industrial Uses of CRB3010UU Bearing
CRB3010UU Bearing works well in machine tools, where its crossed roller design handles both radial and axial loads smoothly. The double seal keeps contaminants out, making it reliable for dusty workshop conditions.

Where Is CRB3010UU Bearing Used?
You’ll often spot CRB3010UU Bearing in robotics, especially in articulated arms needing precise movement. Its press-fit mounting ensures stability during high-speed operations.

Built for Heavy-Duty Use: CRB3010UU Bearing
CRB3010UU Bearing suits conveyor systems that run continuously, thanks to its steel construction. The ABEC5 rating means it delivers consistent performance without excessive noise.

Automotive vs Aerospace: Applications of CRB3010UU Bearing
In cars, CRB3010UU Bearing supports steering columns, while in drones, it aids gimbal mechanisms. The temperature range allows it to perform in varied climates.

Perfect Fit for Automation: CRB3010UU Bearing
CRB3010UU Bearing shines in 3D printers, where low friction matters. The compact 30x55x10mm size fits neatly into tight spaces without sacrificing load capacity.
