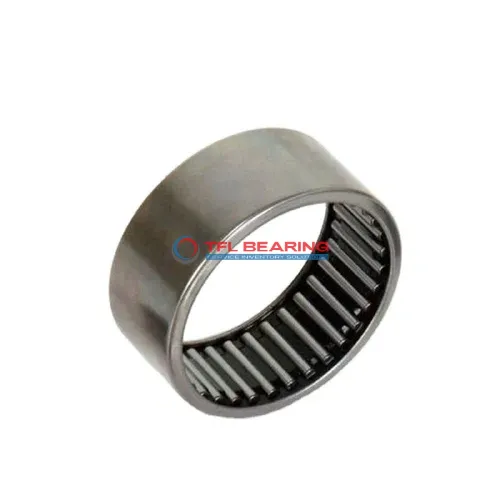

Drawn Cup Needle Roller Bearings HK0606

Drawn Cup Needle Roller Bearings HK0606

The HK0606 is a compact drawn cup needle roller bearing with a 6mm bore and 10mm outer diameter, crafted from sturdy steel. It handles radial loads up to 362 lbf and spins efficiently at speeds up to 36,500 RPM.
Its open-end design and press-fit mounting make it simple to install in tight spaces. The steel construction ensures durability, though regular lubrication is needed for smooth operation.
This bearing works well in temperatures from -20°C to 110°C and is interchangeable with INA models. Ideal for small machinery or automotive applications where space is limited but performance is key.
Compliant with RoHS standards, it’s a reliable choice for radial load scenarios. Its lightweight build doesn’t compromise on strength.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK0606
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 6 mm
  • Bore Dia Tolerance +10-+28 °Cm
  • Outer Dia 10 mm
  • Outer Dia Tolerance Not Rated
  • Width 6 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 362 lbf
  • Static Radial Load 274 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 36500 rpm
  • Weight 1.5 g
Drawn Cup Needle Roller Bearings HK0606 dimension drawing
Download DWG Download PDF

Features

How Does HK0606 Bearing Reduce Friction?
HK0606 Bearing features a steel needle roller design, which minimises friction during high-speed radial load applications.
Its dynamic radial load capacity of 362 lbf ensures smooth operation in compact spaces.
The press-fit shaft mount type simplifies installation, saving time and effort.
With a maximum speed of 36,500 rpm, HK0606 Bearing is suitable for demanding industrial uses.
Its open-end construction allows for easy lubrication, enhancing performance and longevity.
The steel cage and rollers provide durability, even in continuous operation.

Application

Industrial Uses of HK0606 Bearing
HK0606 Bearing is commonly used in compact industrial machinery, such as small gearboxes and electric motors, where space is limited but radial load capacity is essential. Its press-fit design ensures a secure installation, reducing the risk of slippage during operation.
Where Is HK0606 Bearing Used?
In automotive applications, HK0606 Bearing fits well in components like steering systems and small transmissions, offering reliable performance under high-speed conditions. The steel construction provides durability, even in demanding environments.
Perfect Fit for Automation: HK0606 Bearing
For automation equipment, HK0606 Bearing works efficiently in robotic joints and conveyor mechanisms, thanks to its low-profile design and high-speed capability. The open-end series allows for easy lubrication, extending its service life.
Medical vs Industrial: Where HK0606 Bearing Excels
In medical devices, HK0606 Bearing is suitable for precision instruments like dental drills, where smooth operation is critical. Meanwhile, in industrial settings, it handles radial loads in pumps and compressors with ease.
Consumer Electronics and HK0606 Bearing
HK0606 Bearing can be found in household appliances like printers and small fans, where its compact size and efficiency are key advantages. The steel cage ensures quiet operation, making it ideal for noise-sensitive environments.
