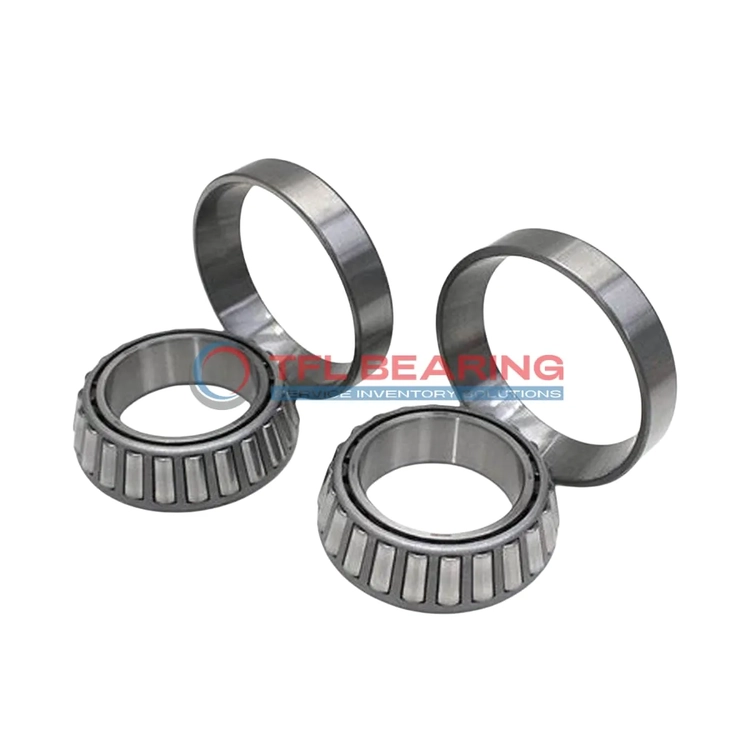

TS (Single Row Tapered Roller Bearings) (Imperial) 565-563

TS (Single Row Tapered Roller Bearings) (Imperial) 565-563

The 565-563 is a single-row tapered roller bearing with a 2.5″ bore and 5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 4.6 lb, it’s a solid yet manageable size for its capacity. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 565-563
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5" x 5" x 1.4375"
  • Bore Dia 2.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.52"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 565
  • Cup Part Number 563
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.6 lb

Features

Performance Features of 565-563 Bearing

565-563 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides reliable performance in various conditions.

565-563 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

This bearing requires lubrication but offers durability and consistent performance.
Its ABEC-1 rating ensures precision for general industrial applications.

Application

Industrial Uses of 565-563 Bearing
The 565-563 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 565-563 Bearing supports axle assemblies and wheel hubs, providing reliable performance under both radial and thrust loads. The inch sizing makes it a practical choice for vehicles using imperial measurements.

For industrial conveyor systems, 565-563 Bearing’s open design allows for easy lubrication, extending its service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 565-563 Bearing a Preferred Choice?
565-563 Bearing is often selected for mining equipment due to its ability to withstand heavy loads and harsh conditions. The standard radial clearance offers flexibility for various operational needs.

In power transmission systems, 565-563 Bearing ensures smooth rotation, reducing wear on connected components. Its ABEC-1 rating provides a balance of precision and affordability for general industrial use.

Built for Heavy-Duty Use: 565-563 Bearing
565-563 Bearing excels in applications like gearboxes and drivetrains, where its combined load capacity is essential. The tapered rollers distribute stress evenly, enhancing longevity.

For maintenance teams, 565-563 Bearing’s compatibility with Timken models simplifies replacements. Its temperature range of -30° to 110°C ensures performance in diverse climates.

Automotive vs Aerospace: Applications of 565-563 Bearing
In automotive settings, 565-563 Bearing is ideal for wheel bearings and differentials, offering robust support. The inch dimensions align with many North American vehicle standards.

While not typically used in aerospace, 565-563 Bearing finds its place in ground support equipment, where reliability and ease of maintenance are key. Its steel construction meets industrial durability requirements.
