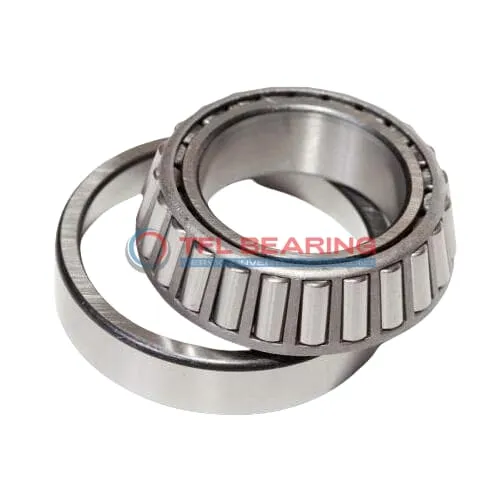

TS (Single Row Tapered Roller Bearings) (Imperial) HM903241-HM903210

TS (Single Row Tapered Roller Bearings) (Imperial) HM903241-HM903210

The HM903241-HM903210 is a single-row tapered roller bearing with a 1.5-inch bore and 3.75-inch outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 24000 lbf radially and 7870 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM903241-HM903210
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 3.75" x 1.2188"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.13"
  • Cone Backface Backing Diameter 2.4"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location 0.02"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM903241
  • Cup Part Number HM903210
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM903200
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24000 lbf
  • Static Radial Load 29700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6210 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7870 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

How Does HM903241-HM903210 Bearing Handle Combined Loads?

HM903241-HM903210 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 24000 lbf, ensuring reliable performance in demanding conditions.
The steel cage keeps the rollers aligned, reducing friction and extending the bearing’s service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes HM903241-HM903210 Bearing Suitable for High-Temperature Applications?

HM903241-HM903210 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction ensures durability and resistance to thermal expansion.
Its open design allows for easy lubrication, maintaining smooth operation under high heat.
This makes it ideal for applications where temperature fluctuations are common.

Designed for Durability: HM903241-HM903210 Bearing

HM903241-HM903210 Bearing features a robust chrome steel construction, enhancing its longevity.
The tapered roller design distributes loads evenly, reducing wear and tear.
Its standard radial clearance ensures consistent performance across various applications.
With a static radial load capacity of 29700 lbf, it handles heavy-duty tasks with ease.

Steel vs Ceramic Bearings: Strengths of HM903241-HM903210 Bearing

HM903241-HM903210 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
This material choice ensures resistance to heavy loads and high temperatures.
The steel cage further enhances stability and alignment during operation.
It’s a reliable choice for industrial applications requiring long-lasting performance.

Application

Industrial Uses of HM903241-HM903210 Bearing
HM903241-HM903210 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The imperial sizing makes it a straightforward fit for North American industrial applications.

Where Is HM903241-HM903210 Bearing Used?
You’ll often spot HM903241-HM903210 Bearing in automotive axles and wheel hubs, thanks to its durability under radial and thrust loads. The chrome steel construction ensures it stands up to rough road conditions.

Perfect Fit for Automation: HM903241-HM903210 Bearing
HM903241-HM903210 Bearing works well in conveyor systems, where its single-row design simplifies maintenance. The open seal type allows for easy lubrication, keeping operations smooth.

Automotive vs Aerospace: Applications of HM903241-HM903210 Bearing
In automotive settings, HM903241-HM903210 Bearing supports drivetrain components, while its precision makes it suitable for aerospace landing gear. The ABEC-1 rating balances performance and cost.

Essential Roles of HM903241-HM903210 Bearing
HM903241-HM903210 Bearing is a reliable choice for agricultural machinery, where its steel cage withstands dusty environments. The standard radial clearance offers flexibility for various load conditions.
