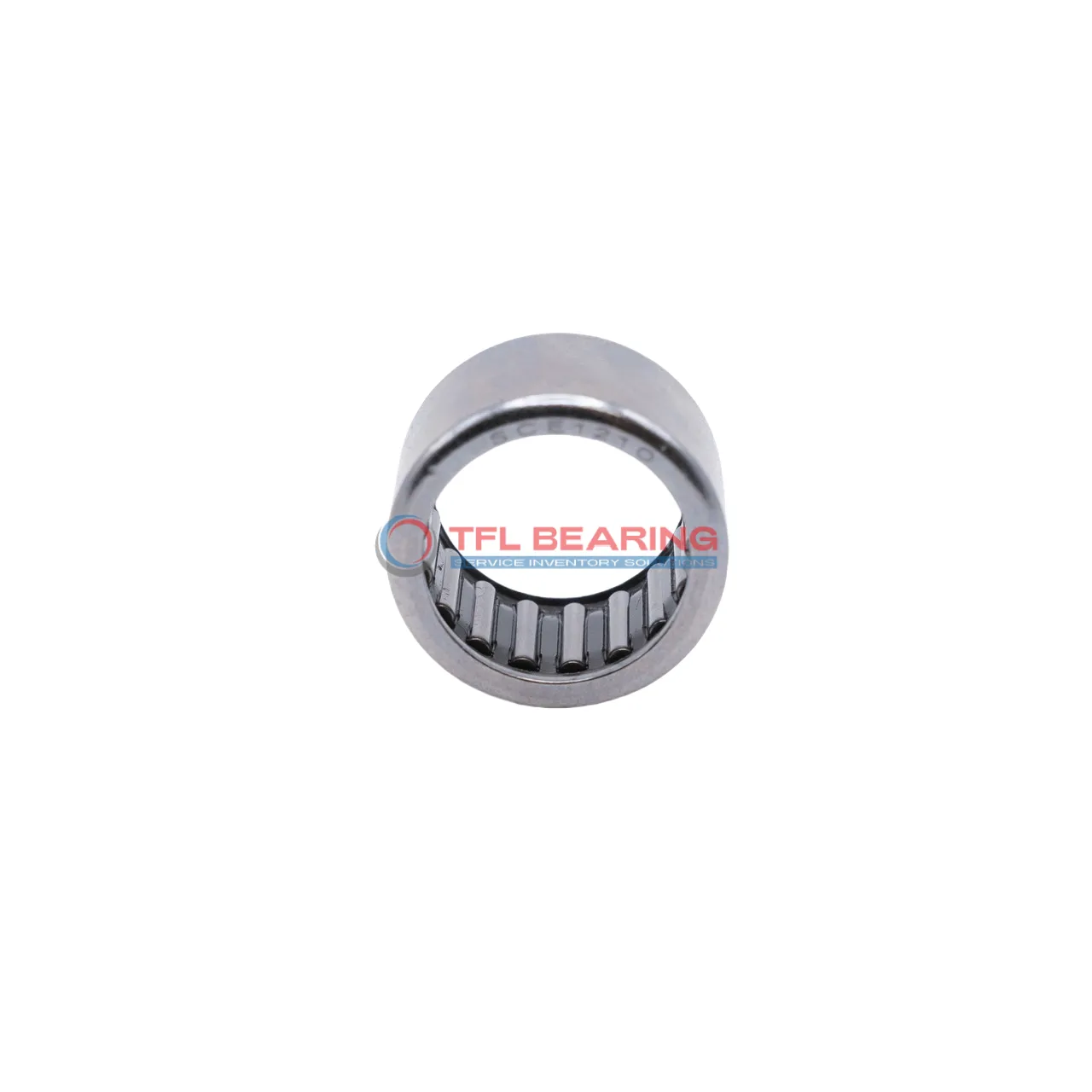

Drawn Cup Needle Roller Bearings BCE89-P

Drawn Cup Needle Roller Bearings BCE89-P

The BCE89-P is a drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel. It handles radial loads up to 1551 lbf and spins efficiently at speeds up to 19500 RPM.
Its single-seal design keeps contaminants out while the press-fit mounting ensures a secure fit. The bearing requires lubrication for optimal performance and operates in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Ideal for applications like automotive components or small machinery where space is limited.
Weighing in at a compact size, it’s a durable choice for high-speed radial load scenarios. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE89-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.5625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1551 lbf
  • Static Radial Load 2023 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 10 g
Drawn Cup Needle Roller Bearings BCE89-P dimension drawing
Download DWG Download PDF

Features

How Does BCE89-P Bearing Handle High-Speed Applications?
BCE89-P Bearing is built with a steel construction, offering robust performance under radial loads.
Its dynamic radial load capacity of 1551 lbf ensures reliable operation in demanding conditions.
The single seal design helps retain lubrication, extending the bearing’s service life.
With a maximum speed of 19,500 rpm, it is well-suited for high-speed applications.

Application

Common Applications of BCE89-P Bearing
BCE89-P Bearing is widely used in automotive transmissions, where its compact design and high radial load capacity make it ideal for space-constrained applications. The press-fit mounting ensures a secure fit, reducing maintenance needs.
In industrial gearboxes, BCE89-P Bearing handles high-speed rotations smoothly, thanks to its steel construction and single-seal design. Its inch sizing makes it a convenient choice for machinery following imperial standards.
For small electric motors, BCE89-P Bearing provides reliable performance with minimal lubrication requirements. The closed-end series design helps keep contaminants out, extending the bearing’s service life in demanding conditions.
