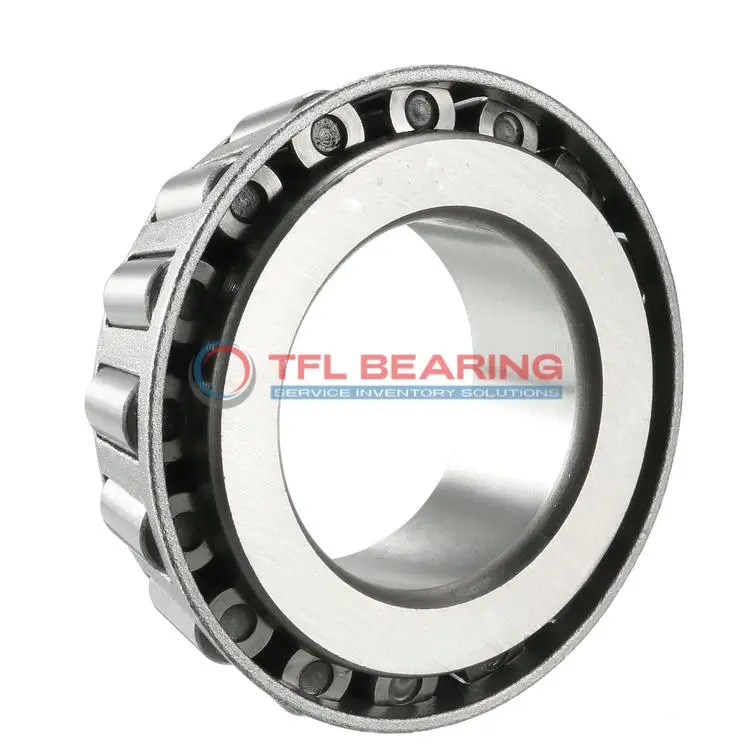

07096 Single Cones (Imperial)

07096 Single Cones (Imperial)

The 07096 is a single-row tapered roller bearing cone with a 0.9905″ bore, made from durable chrome steel. It handles combined loads, with a dynamic radial load capacity of 6540 lbf and a static radial load of 6650 lbf.

Its open design allows for easy maintenance, and the steel cage ensures reliable performance. The cone is part of the 7000 series and is interchangeable with Timken bearings, making it a practical choice for replacements.

This cone works well in temperatures from -30°C to 110°C and is compliant with RoHS and REACH standards. Ideal for applications like automotive axles or industrial machinery where combined loads are common.

With standard radial clearance and an ABEC-1 rating, it offers a balance of precision and durability for general use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07096
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 07096-07196 , 07096-07204 , 07096-07205 , 07096-07205X , 07096-07210X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 7000
  • Bore Dia 0.9905"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.24"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 2950 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

How Does 07096 Bearing Handle Combined Loads?

07096 Bearing is built with chrome steel rings and a steel cage, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 6540 lbf, making it suitable for demanding applications.
The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Common Applications of 07096 Bearing
The 07096 Bearing is widely used in industrial machinery, especially where combined radial and thrust loads are present, such as conveyor systems and gearboxes. Its tapered roller design ensures smooth operation even under heavy loads.

Where Is 07096 Bearing Used?
You’ll often find the 07096 Bearing in automotive applications like wheel hubs and differentials, thanks to its durability and precise inch sizing. The open seal design makes it easy to maintain in these high-use environments.

Built for Heavy-Duty Use: 07096 Bearing
In construction equipment, the 07096 Bearing handles tough conditions, supporting loads in machinery like excavators and cranes. Its chrome steel construction provides long-lasting performance even in dusty or wet settings.

Automotive vs Industrial: Applications of 07096 Bearing
The 07096 Bearing works well in both automotive and industrial settings, from truck axles to factory machinery. Its standard radial clearance offers flexibility for various load and speed requirements.

Perfect Fit for Automation: 07096 Bearing
For automated systems, the 07096 Bearing ensures reliable performance in robotic arms and assembly lines. The steel cage adds strength, making it suitable for continuous operation.
