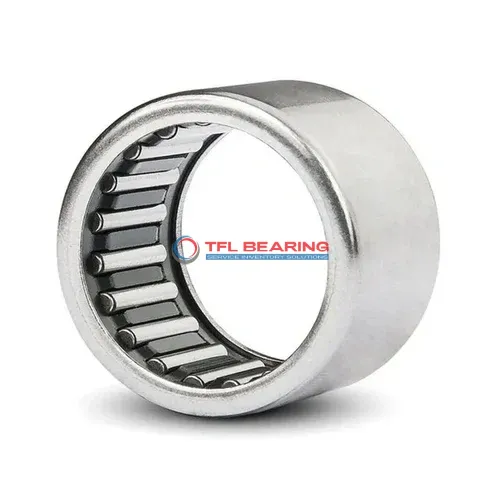

Drawn Cup Needle Roller Bearings BCE2212

Brand: TFL Bearing Interchangeable: INA BCE2212 1.375" × 1.625" × 0.75" Inch Open
Part number: BCE2212
Drawn Cup Needle Roller Bearings BCE2212
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia1.375"
Bore Dia ToleranceRefer to note on the right drawing
Outer Dia1.625"
Outer Dia ToleranceNot Rated
Width0.75"
Width Tolerance-0.01" to 0"
Performance
Dynamic Radial Load4,833 lbf
Static Radial Load9,554 lbf
Temperature Range-20 to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementInch
Bearing TypeRoller
Roller Bearing TypeNeedle
For Load DirectionRadial
ConstructionSingle Row
Seal TypeOpen
SeriesClosed End
LubricationRequired
Shaft Mount TypePress Fit
Weight39 g
Material
Ring MaterialSteel
Ball MaterialSteel
Cage MaterialSteel
Compliance
RoHSCompliant
Dimension drawing · click to enlarge

Description

The BCE2212 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4833 lbf and operates smoothly at speeds up to 7500 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various industrial applications.
Ideal for compact spaces due to its slim 0.75″ width, this bearing is commonly used in automotive components and machinery where space is limited. RoHS compliant for safe use in various environments.

Features

Why Choose BCE2212 Bearing for Precision Tasks?
BCE2212 Bearing features a steel construction, offering strong radial load capacity with a dynamic rating of 4833 lbf.
Its needle roller design ensures efficient load distribution, making it suitable for precision applications.
The press-fit shaft mount simplifies installation, saving time and effort.
With a maximum speed of 7500 rpm, BCE2212 Bearing balances performance and durability.
BCE2212 Bearing operates effectively within a temperature range of -20 to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Key Fields for BCE2212 Bearing
BCE2212 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, BCE2212 Bearing fits well in transmission systems, providing smooth operation under high radial loads. Its press-fit mounting simplifies installation in vehicle assemblies.
For automation equipment, BCE2212 Bearing supports precise motion in robotic arms and conveyor systems. The open seal design allows for easy lubrication, extending its service life.
In household appliances like washing machines, BCE2212 Bearing handles radial loads efficiently, ensuring quiet and reliable performance. Its inch sizing makes it compatible with many North American models.
