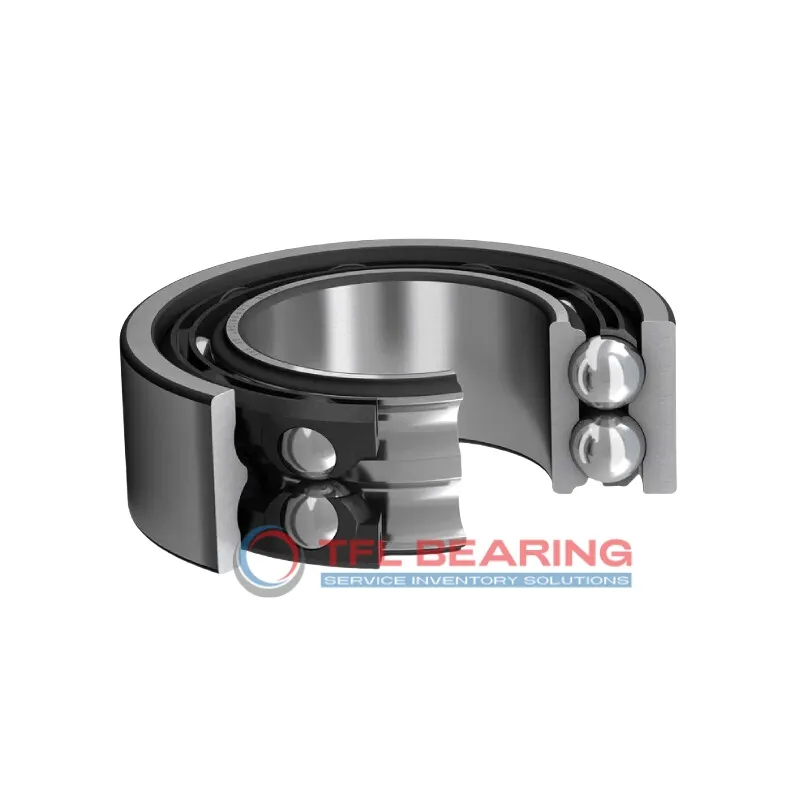

Double Row Angular Contact Ball Bearings (General) 3310 ATN9

Brand: TFL Bearing Interchangeable: SKF 3310 ATN9 50 mm × 110 mm × 44.4 mm Metric Open
Part number: 3310 ATN9
Double Row Angular Contact Ball Bearings (General) 3310 ATN9
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia110 mm
Outer Dia Tolerance-0.013mm to 0
Width44.4 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension2 mm
Performance
Dynamic Radial Load21,375 lbf
Static Radial Load15,638 lbf
Max Speed6,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)65 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3310 ATN9 is a double-row angular contact ball bearing with a 50mm bore and 110mm outer diameter, designed to handle both radial and axial loads. Its chrome steel construction ensures durability, while the nylon cage reduces friction for smoother operation.

With a dynamic radial load capacity of 21375 lbf, it can handle heavy-duty applications. The bearing spins efficiently at speeds up to 6000 RPM and operates in temperatures from -30°C to 110°C.

Its open design allows easy lubrication, and the P6 tolerance class ensures precise performance. The double-row setup provides better stability under angular loads.

Ideal for industrial machinery, gearboxes, or pumps where combined loads are common. Weighing 1.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Features

Performance Features of 3310 ATN9 Bearing

3310 ATN9 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 21375 lbf, ensuring reliable performance in demanding applications.
The nylon cage keeps the balls aligned, reducing wear and extending service life.
With a maximum speed of 6,000 rpm, it balances durability and efficiency.

Application

Common Applications of 3310 ATN9 Bearing
3310 ATN9 Bearing is widely used in industrial machinery, especially in applications needing high radial and axial load capacity, such as heavy-duty gearboxes and pumps. Its double-row design provides stability, making it suitable for demanding environments.

In automotive systems, 3310 ATN9 Bearing is often found in wheel hubs and transmissions, where its angular contact feature helps manage combined loads. The metric sizing ensures compatibility with various vehicle designs.

For automation equipment, 3310 ATN9 Bearing supports robotic arms and conveyor systems, offering smooth motion and long service life. The nylon cage reduces friction, enhancing efficiency in continuous operations.

Medical imaging devices benefit from 3310 ATN9 Bearing’s precision and reliability, ensuring accurate positioning in scanners and diagnostic machines. The chrome steel construction adds durability for high-use scenarios.

In household appliances like washing machines, 3310 ATN9 Bearing provides quiet and efficient performance. Its lubricated design minimises maintenance, making it a practical choice for everyday use.
