Double Row Angular Contact Ball Bearings (General) 3309 A-2Z

Brand: TFL Bearing Interchangeable: SKF 3309 A-2Z 45 mm × 100 mm × 39.7 mm Metric Shielded
Part number: 3309 A-2Z
Double Row Angular Contact Ball Bearings (General) 3309 A-2Z
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.013mm to 0
Width39.7 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load16,875 lbf
Static Radial Load11,925 lbf
Max Speed6,700 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeShielded
Distance Pressure Point (a)58 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight1.25 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant

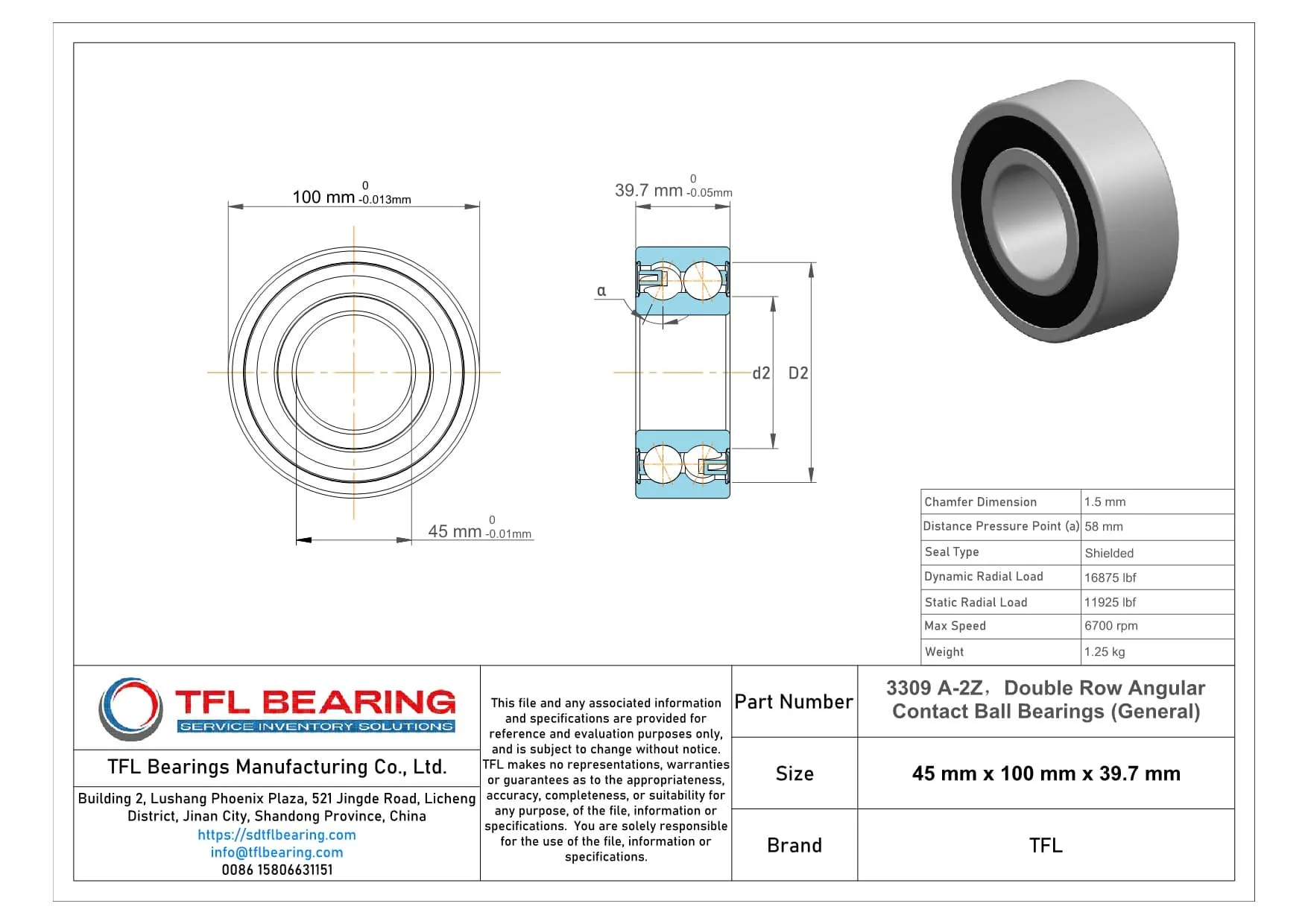

Dimension drawing · click to enlarge

Description

The 3309 A-2Z is a double-row angular contact ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16875 lbf and operates smoothly at speeds up to 6700 RPM.

Its shielded design keeps contaminants out while the stainless steel cage enhances durability. The bearing is pre-lubricated and performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It suits applications like pumps or gearboxes where angular contact and radial loads are present.

Weighing 1.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets stringent safety and environmental requirements.

Features

Performance Features of 3309 A-2Z Bearing

3309 A-2Z Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16875 lbf, ensuring reliable performance in demanding applications.

The double-row angular contact design enhances stability, making it suitable for high-speed operations.
With a maximum speed of 6,700 rpm, it balances durability and efficiency.

Shielded seals protect 3309 A-2Z Bearing from contaminants, extending its service life.
The stainless steel cage maintains ball alignment, reducing wear and noise.

3309 A-2Z Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its precision P6 tolerance class ensures consistent performance in various applications.

Application

Industrial Uses of 3309 A-2Z Bearing
3309 A-2Z Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The shielded seals help keep contaminants out, extending the bearing’s lifespan in dusty workshop environments.

What Makes 3309 A-2Z Bearing a Preferred Choice?
In automotive applications like wheel hubs, 3309 A-2Z Bearing offers stable performance thanks to its chrome steel construction. The P6 tolerance class ensures precise alignment, reducing vibration in high-speed scenarios.

Built for Heavy-Duty Use: 3309 A-2Z Bearing
For conveyor systems in mining or agriculture, 3309 A-2Z Bearing withstands heavy loads while maintaining smooth rotation. Its lubricated design minimises maintenance needs even in continuous operation.

Medical vs Industrial: Where 3309 A-2Z Bearing Excels
While 3309 A-2Z Bearing suits industrial gearboxes, its precision also benefits medical centrifuges. The stainless steel cage prevents corrosion in sterilised environments without compromising load capacity.

Practical Applications of 3309 A-2Z Bearing
In robotics, 3309 A-2Z Bearing provides the angular stability needed for articulated arms. The 39.7mm width offers a compact solution without sacrificing durability in repetitive motion applications.
