Double Direction Thrust Ball Bearings 54308

Double Direction Thrust Ball Bearings 54308

The 54308 is a double-direction thrust ball bearing with a 30mm bore and 78mm outer diameter, crafted from sturdy chrome steel. It manages thrust loads up to 13905 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or machinery with significant thrust loads.

Weighing 1.17kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 54308
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 78 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 54.1 mm
  • Width Tolerance +0.15mm to -0.4mm
  • Chamfer Dimension Housing Washer 1 mm
  • Chamfer Dimension Shaft Washer 0.6 mm
  • Inner Dia Housing Washer 42 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 13905 lbf
  • Static Thrust Load 27450 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 1.17 kg

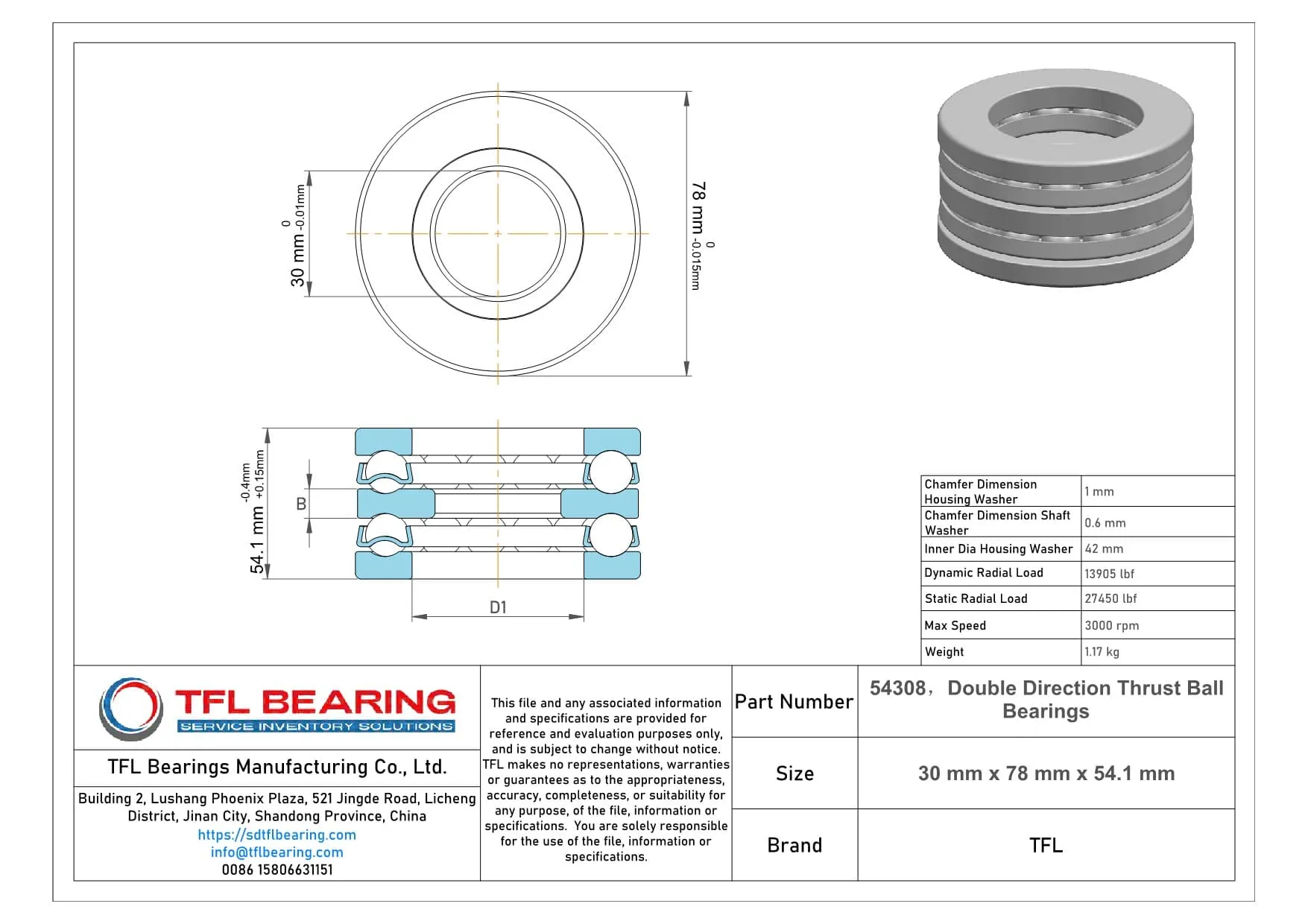

Double Direction Thrust Ball Bearings 54308 dimension drawing
Download DWG Download PDF

Features

Why Choose 54308 Bearing for Precision Tasks?

54308 Bearing features chrome steel rings and balls, ensuring high precision and durability in thrust applications.
Its dynamic thrust load capacity of 13905 lbf makes it suitable for demanding industrial environments.

The stainless steel cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 3,000 rpm, it delivers consistent performance under various conditions.

54308 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to diverse working environments.
Its open seal design allows for easy inspection and maintenance, ensuring long-term reliability.

Application

Key Fields for 54308 Bearing
54308 Bearing is commonly used in heavy-duty industrial machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open seal design simplifies lubrication and maintenance, ideal for demanding environments.

In automotive applications, 54308 Bearing fits well in larger gearboxes and drivetrain components, providing reliable performance under substantial axial loads. Its metric dimensions ensure compatibility with a variety of commercial vehicle designs.

For automation systems, 54308 Bearing supports robotic arms and assembly line equipment, where its stainless steel cage offers durability. The chrome steel construction ensures long-term reliability in continuous operation.

Medical imaging devices benefit from 54308 Bearing’s precision and stability, crucial for maintaining accurate performance. Its temperature tolerance makes it suitable for equipment used in various clinical settings.

In household appliances like washing machines, 54308 Bearing handles axial loads efficiently, contributing to smooth operation. The robust design ensures longevity even with frequent use.
