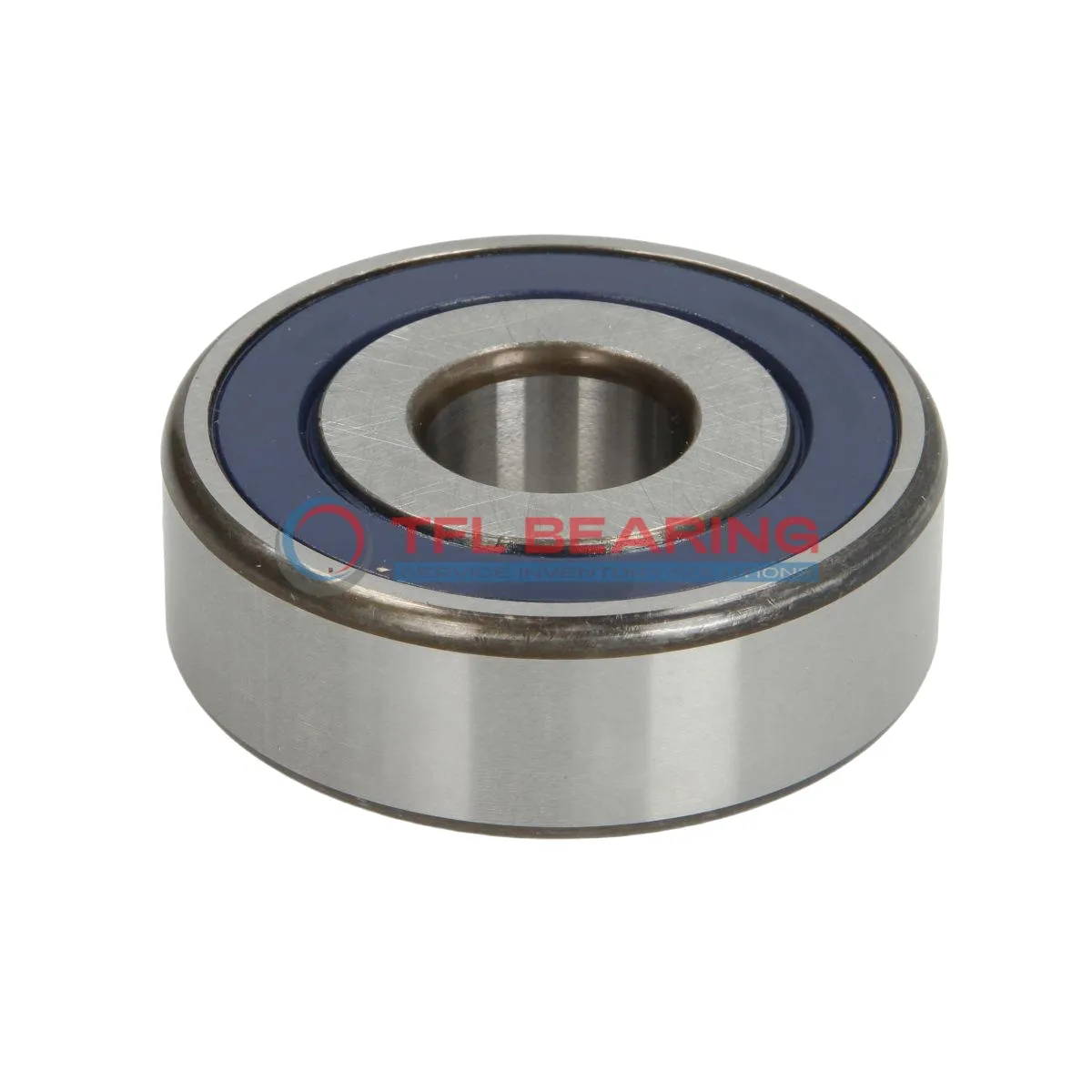

Single Row Deep Groove Ball Bearings 6305-2RS1/GJN

The 6305-2RS1/GJN is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4631 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing just 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6305-2RS1/GJN
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 17 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 4631 lbf
Static Radial Load 254 lbf
Max Speed 11000 rpm
Weight 232 g
price（$） 4.455

Single Row Deep Groove Ball Bearings 6305-2RS1/GJN dimension drawing

Download DWG Download PDF

Features

Why Choose 6305-2RS1/GJN Bearing for Precision Tasks?

6305-2RS1/GJN Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 4631 lbf, it handles demanding conditions while maintaining smooth operation.
The bearing operates efficiently at speeds up to 11,000 rpm, making it suitable for high-speed machinery.

Its ABEC 1 tolerance class provides reliable precision for various industrial uses.
The temperature range of -30°C to 120°C ensures performance in diverse environments.

Application

Industrial Uses of 6305-2RS1/GJN Bearing
The 6305-2RS1/GJN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability in demanding environments.

What Makes 6305-2RS1/GJN Bearing a Preferred Choice?
In automotive applications, 6305-2RS1/GJN Bearing works well in wheel hubs and alternators due to its radial load capacity. The sealed feature also makes it suitable for dusty or wet conditions.

Perfect Fit for Automation: 6305-2RS1/GJN Bearing
For automated systems, 6305-2RS1/GJN Bearing provides smooth operation in conveyor belts and robotic arms. Its consistent performance helps maintain efficiency in high-speed setups.

Medical vs Industrial: Where 6305-2RS1/GJN Bearing Excels
While 6305-2RS1/GJN Bearing is reliable in industrial gear, it also fits medical devices like centrifuges where precision is key. The sealed design ensures cleanliness in sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for 6305-2RS1/GJN Bearing
6305-2RS1/GJN Bearing handles both light-duty tasks in household appliances and heavier loads in construction equipment. Its versatility makes it a practical choice across various applications.
